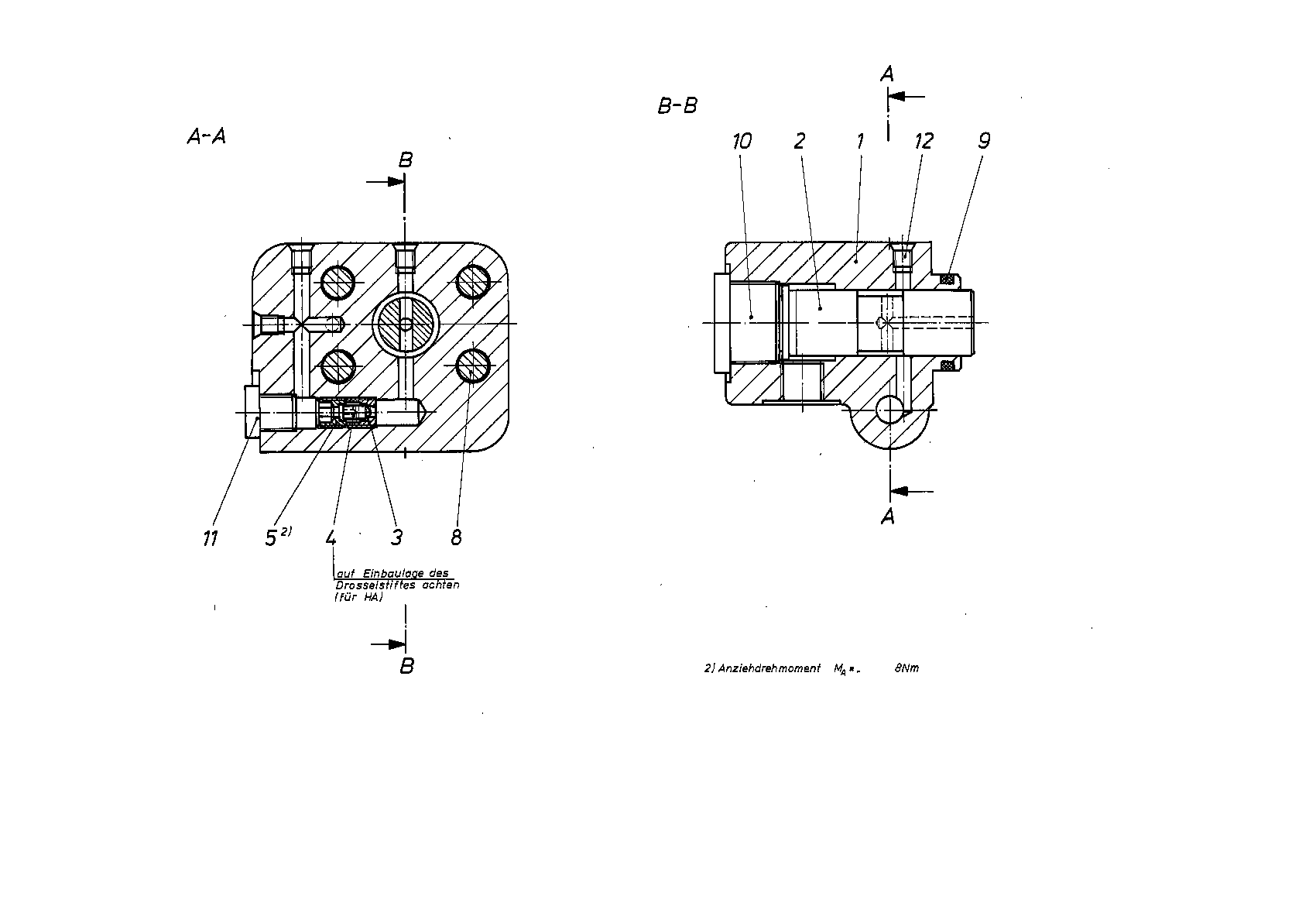

Assembly
STROKE LIMITERR909434498
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909435688 | HOUSING | 1 | |
| 2 | R909435689 | PISTON | 1 | |
| 3 | R909400263 | THROTTLE SCREW | 1 | |
| 4 | R909425867 | THROTTLE PIN | 1 | |
| 5 | R909400264 | THROTTLE SCREW | 1 | |
| 8 | R909083071 | SOCKET HEAD CAP SCREW | 4 | |
| 9 | R909083798 | O-RINGD | 1 | |
| R909153365 | SCREW PLUGD | 1 | ||
| 11 | R909151692 | SCREW PLUGD | 1 | |
| 12 | R909831318 | DOUBLE BREAK-OFF PLUG | 2 |
