Assembly

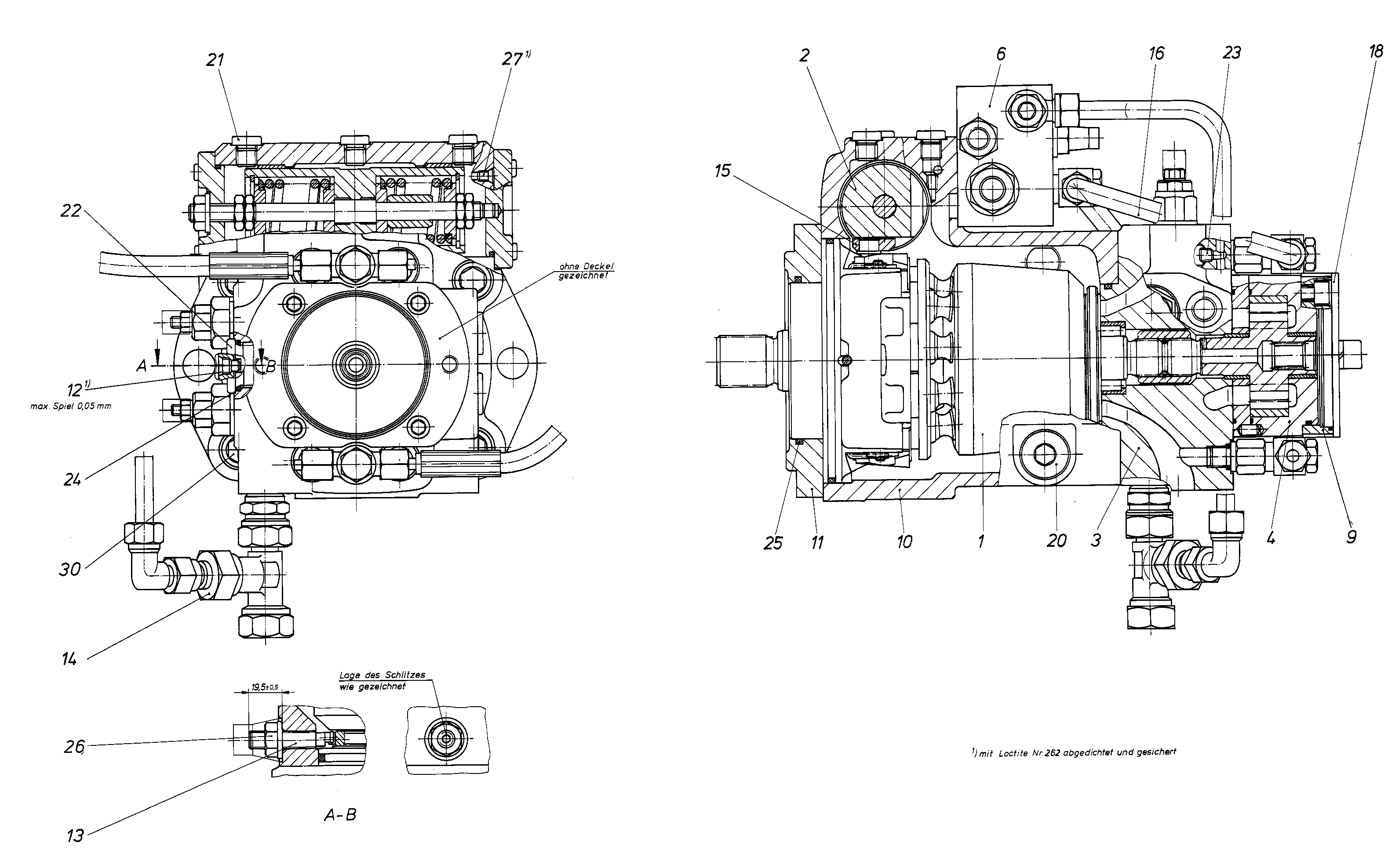

AXIAL-PISTON PUMPR909434637
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909400315 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909414468 | CONTROL Assembly parts list →L | 1 | ||
| R909080273 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909401743 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R909442183 | TORQUE-PRESSURE CONTROL VALVE Assembly parts list →L | 1 | ||
| R909401766 | THROUGH DRIVE ADAPTER Assembly parts list →L | 1 | ||
| R909405945 | HOUSING | 1 | ||
| R909074129 | FLANGE | 1 | ||
| R909414043 | ANTI-TWIST LOCK | 1 | ||
| R909414044 | ANTI-TWIST LOCK | 1 | ||
| R909405757 | ECCENTRIC SCREW | 1 | ||
| R909429565 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| R909425992 | SLIDER | 1 | ||
| R909441177 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| 17 | R909446206 | HYDRAULIC LINE Assembly parts list →L | 1 | |
| R909429294 | COVER Assembly parts list →L | 1 | ||
| R909437524 | SHIPPING PROTECTION Assembly parts list →L | 1 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 5 | ||
| R909084400 | SCREW PLUG | 1 | ||
| R909153572 | SCREW PLUG | 1 | ||
| R909083761 | O-RINGD | 1 | ||
| R909083825 | O-RINGD | 1 | ||
| R909153271 | SEALING NUTD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| 29 | R909156492 | NOZZLE | 2 | |
| R909153817 | SOCKET HEAD CAP SCREW | 4 | ||
| 98 | R902166894 | SEAL KIT | 1 |
