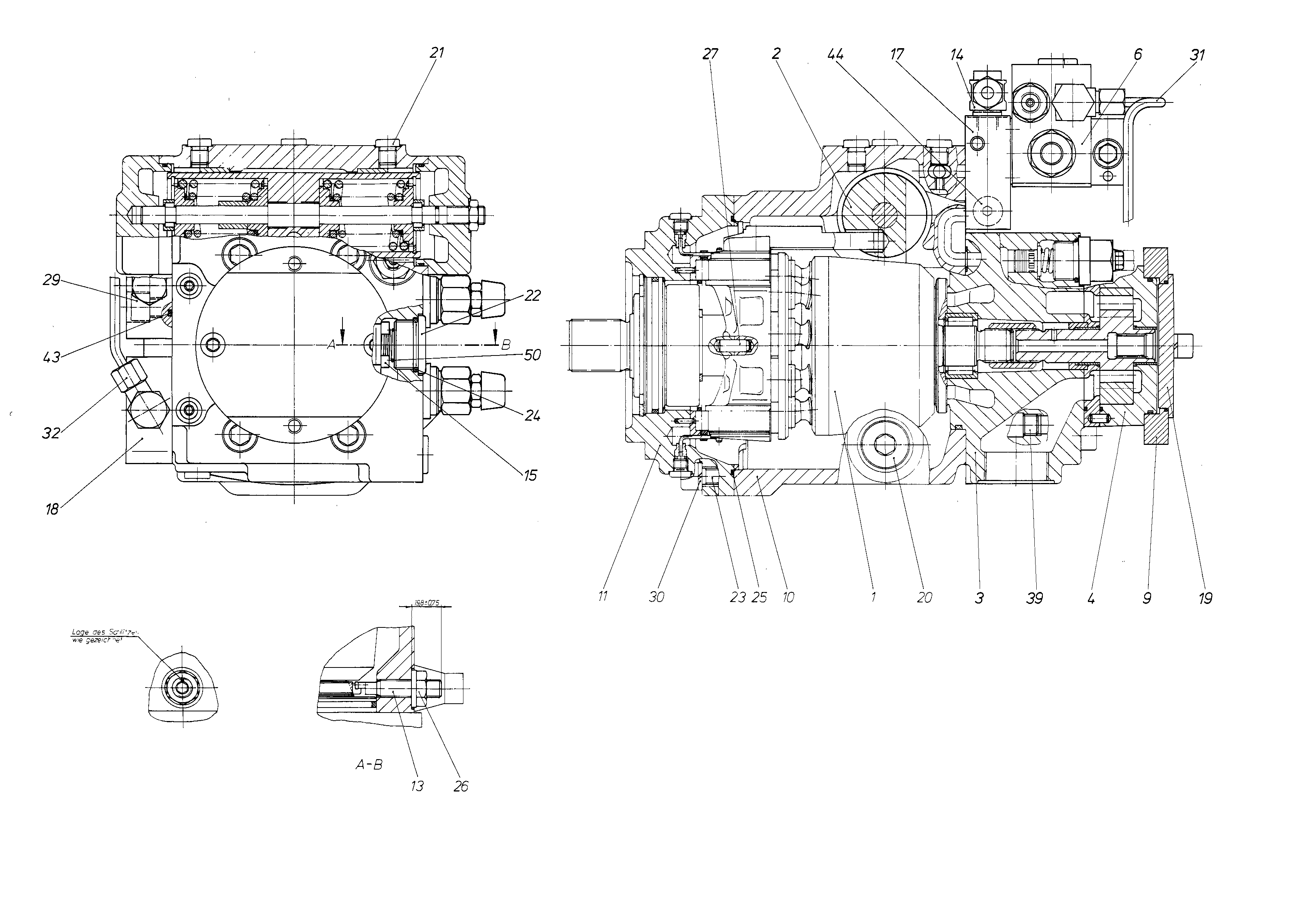

Assembly
AXIAL-PISTON PUMPR909434638
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909400440 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909434067 | CONTROL Assembly parts list →L | 1 | ||
| R909428822 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909408052 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R909442181 | TORQUE-PRESSURE CONTROL VALVE Assembly parts list →L | 1 | ||
| R909405582 | BELL HOUSING Assembly parts list →L | 1 | ||
| R909405623 | HOUSING | 1 | ||
| R909405621 | FLANGE Assembly parts list →L | 1 | ||
| R909405758 | ECCENTRIC SCREW | 1 | ||
| R909438451 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| R909432428 | LOCKING PIECE | 1 | ||
| R909427585 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909443251 | REDUCING FLANGE | 1 | ||
| R909429294 | COVER Assembly parts list →L | 1 | ||
| R909153891 | SCREW PLUGD | 3 | ||
| R909151692 | SCREW PLUGD | 5 | ||
| R909083228 | SCREW PLUG | 1 | ||
| R909086573 | SOCKET HEAD CAP SCREW | 8 | ||
| R909086731 | O-RINGD | 1 | ||
| R909086684 | O-RINGD | 1 | ||
| R909087405 | SEALING NUTD | 1 | ||
| R909087752 | STRAIGHT PIN | 1 | ||
| R909083087 | SOCKET HEAD CAP SCREW | 8 | ||
| R909083252 | SPRING LOCK WASHER | 8 | ||
| R909429299 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| R909429298 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| R909087912 | SCREW PLUG | 1 | ||
| R909086659 | O-RINGD | 2 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909409512 | COMPRESSION SPRING | 1 | ||
| 98 | R902166694 | SEAL KIT | 1 |
