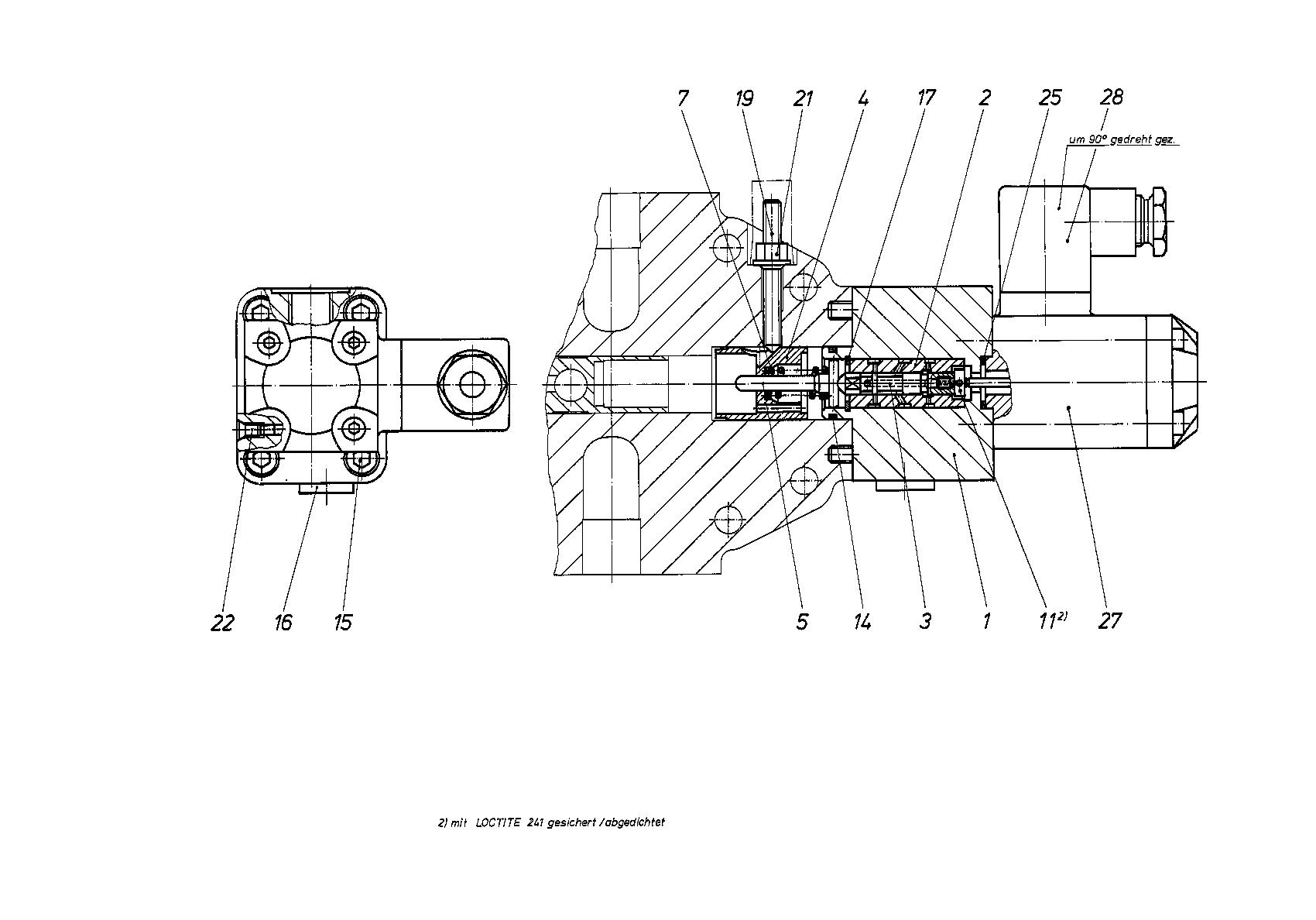

Assembly
CONTROL PARTR909434708
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909425872 | CONTROL HOUSING | 1 | ||
| R909425874 | CONTROL SLEEVE | 1 | ||
| R909425873 | CONTROL PISTON | 1 | ||
| 4 | R909445267 | ADJUSTING BUSHING | 1 | |
| R909921339 | SPRING DISK | 1 | ||
| R909412398 | COMPRESSION SPRING | 1 | ||
| 11 | R909425875 | STOP SCREW | 1 | |
| R909086432 | O-RINGD | 1 | ||
| 15 | R909083027 | SOCKET HEAD CAP SCREW | 4 | |
| R909151979 | SCREW PLUGD | 1 | ||
| 17 | R909083381 | RETAINING RING | 1 | |
| R909439043 | SETSCREW | 1 | ||
| 21 | R909152425 | SEALING NUTD | 1 | |
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 | ||
| 25 | R909083734 | O-RINGD | 1 | |
| 27 | R909434705 | SWITCHING SOLENOID Assembly parts list →L | 1 | |
| R913022795 | PLUG-IN CONNECTOR | 1 |
