Assembly

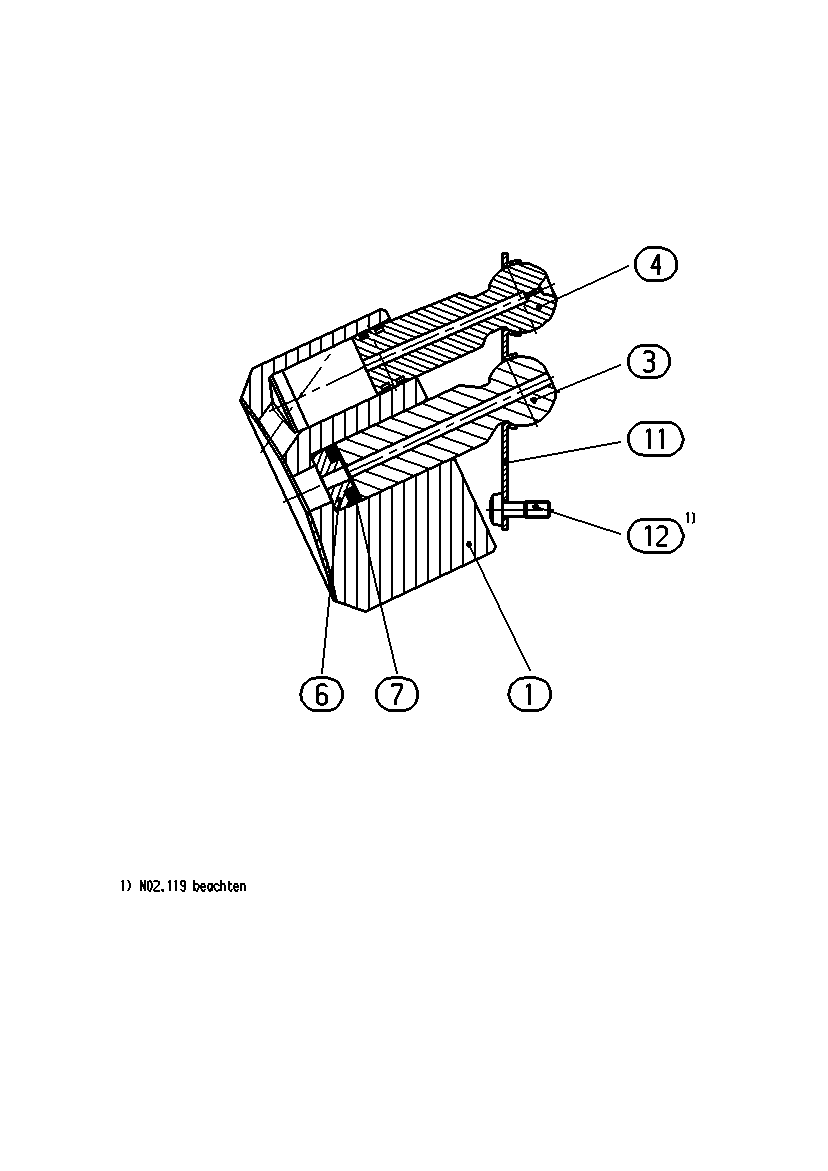

ROTARY GROUPR909434812
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909436044 | CYLINDER | 1 | |
| R909409909 | CENTER PIN | 1 | ||
| R902021907 | PISTON | 7 | ||
| R902043501 | SPRING DISK | 1 | ||
| R909412638 | SPRING DISK | 1 | ||
| R909412639 | SPRING DISK | 1 | ||
| R909412640 | SPRING DISK | 1 | ||
| R909412641 | SPRING DISK | 1 | ||
| R909412642 | SPRING DISK | 1 | ||
| R909412643 | SPRING DISK | 1 | ||
| R909409883 | DISC SPRING | 4 | ||
| 11 | R902072550 | RETAINING PLATE | 1 | |
| 12 | R902602776 | PAN-HEAD SCREW | 7 |
