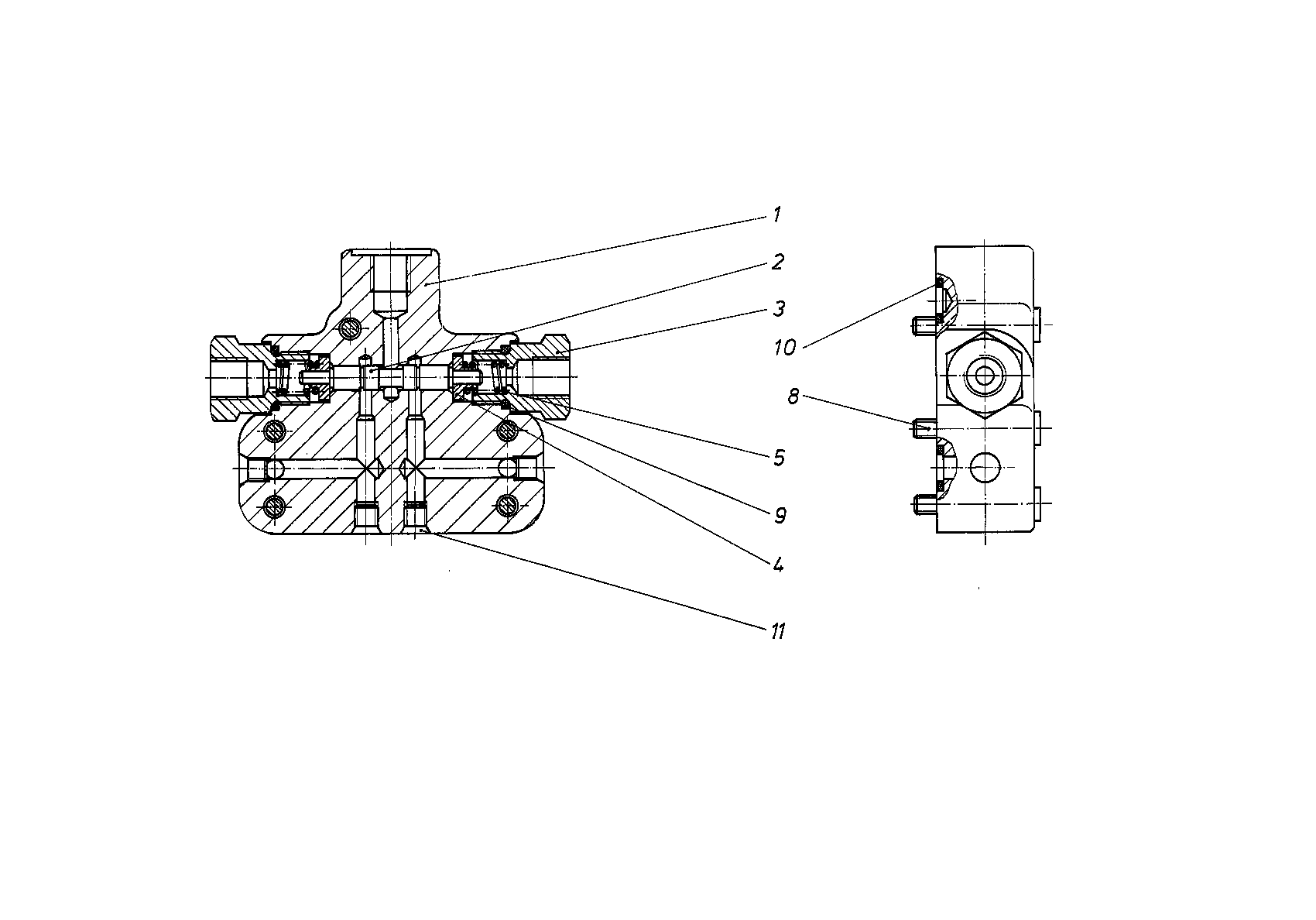

Assembly
DIRECTIONAL-CONTROL VALVER909434904
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909436126 | VALVE HOUSING | 1 | ||
| 2 | R909436129 | CONTROL PISTON | 1 | |
| 3 | R909439150 | SCREW PLUG | 2 | |
| 4 | R909436130 | SPRING DISK | 2 | |
| 5 | R909426522 | COMPRESSION SPRING | 2 | |
| 8 | R909083025 | SOCKET HEAD CAP SCREW | 5 | |
| 9 | R909086435 | O-RINGD | 2 | |
| R909083749 | O-RINGD | 3 | ||
| 11 | R909831319 | DOUBLE BREAK-OFF PLUG | 2 |
