Assembly

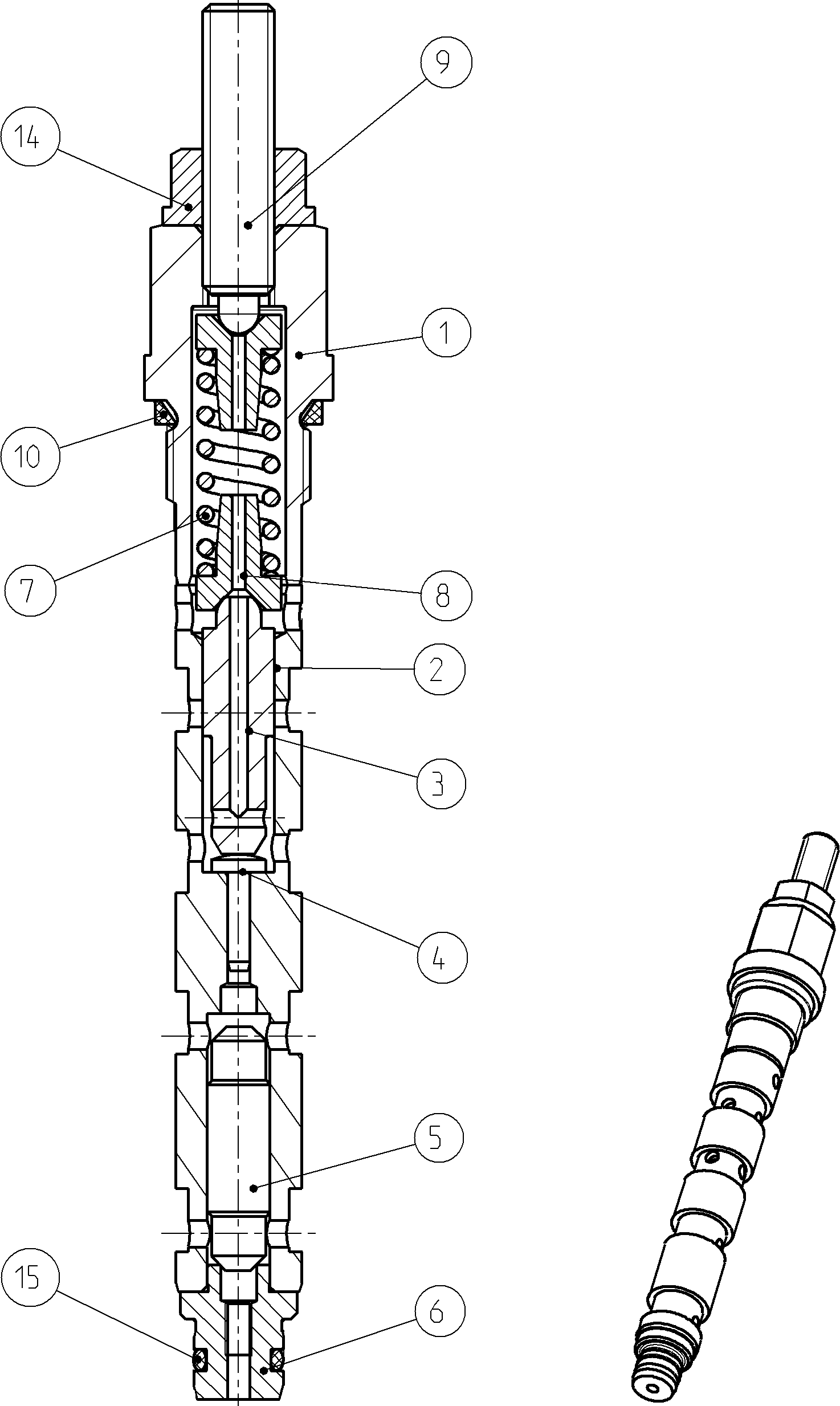

PRESSURE CUT-OFF VALVER909437084
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909432161 | SCREW PLUG | 1 | |
| R909425951 | VALVE BUSHING | 1 | ||
| R909432162 | CONTROL PISTON | 1 | ||
| R909432163 | PISTON | 1 | ||
| 5 | R909432164 | VALVE SPOOL | 1 | |
| 6 | R909436284 | VALVE SEAT | 1 | |
| R902168277 | COMPRESSION SPRING | 1 | ||
| R902049851 | SPRING DISK | 2 | ||
| 9 | R909432167 | ADJUSTING SCREW | 1 | |
| R909083752 | O-RINGD | 1 | ||
| 14 | R909152707 | SEALING NUTD | 1 | |
| R909086380 | O-RINGD | 1 | ||
| 98 | R902221226 | SEAL KIT | 1 |
