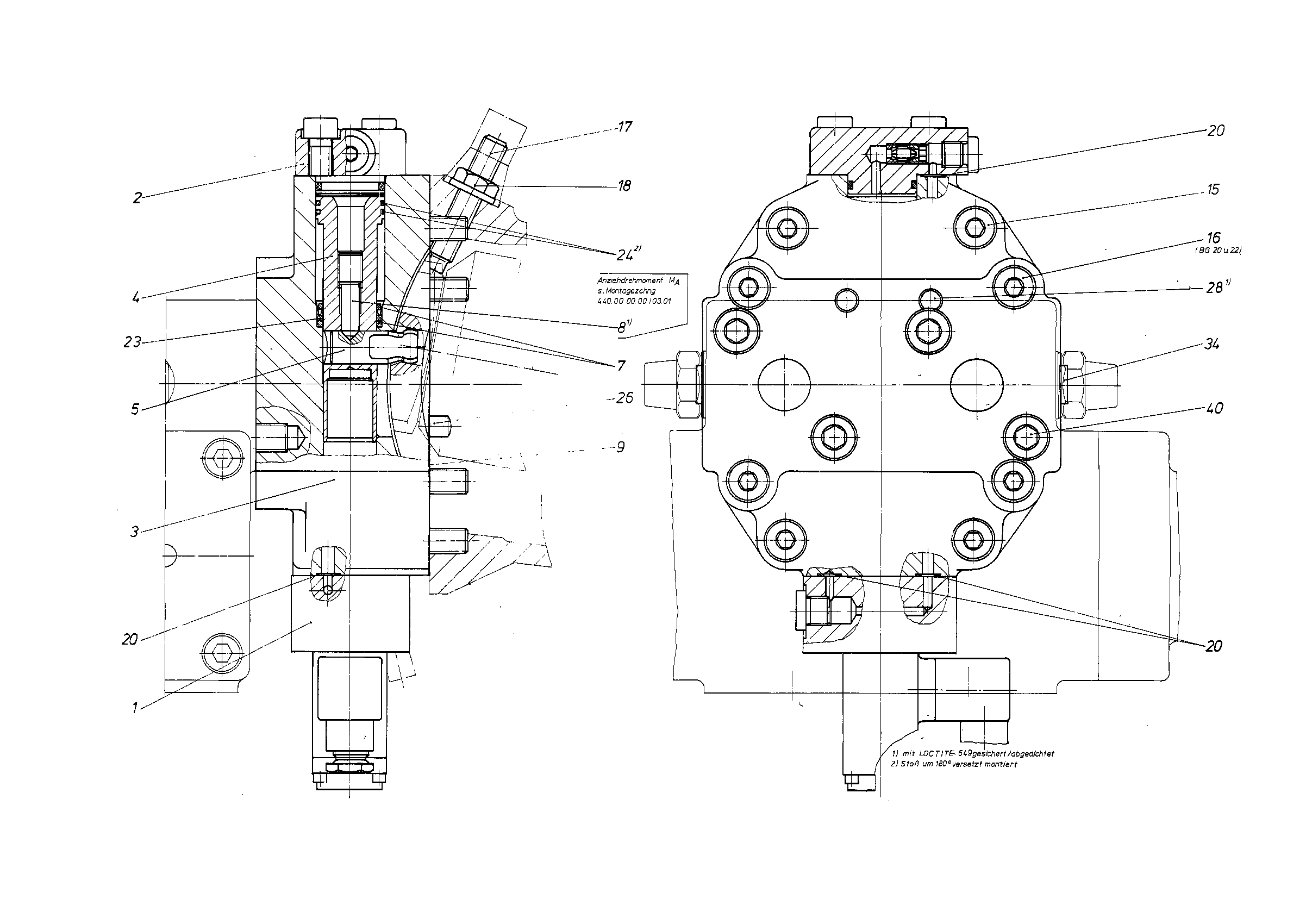

Assembly
CONTROLR909437091
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909433958 | CONTROL PART Assembly parts list →L | 1 | ||
| R909423176 | COVER Assembly parts list →L | 1 | ||
| R909425822 | COVER PLATE | 1 | ||
| R909424089 | POSITIONING PISTON | 1 | ||
| R909422021 | POSITIONING STUD | 1 | ||
| R909424090 | BACKUP RING | 2 | ||
| R909445922 | SETSCREW | 1 | ||
| R902011856 | SEALD | 1 | ||
| R909083131 | SOCKET HEAD CAP SCREW | 8 | ||
| R909446862 | SETSCREW Assembly parts list →L | 1 | ||
| R909152459 | SEALING NUTD | 1 | ||
| R909086498 | O-RINGD | 5 | ||
| R909156542 | ROD SEALD | 1 | ||
| R909156479 | R-RINGD | 2 | ||
| R913009666 | STRAIGHT PIN | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909153860 | SCREW PLUGD | 2 | ||
| R909083145 | SOCKET HEAD CAP SCREW | 4 |
