Assembly

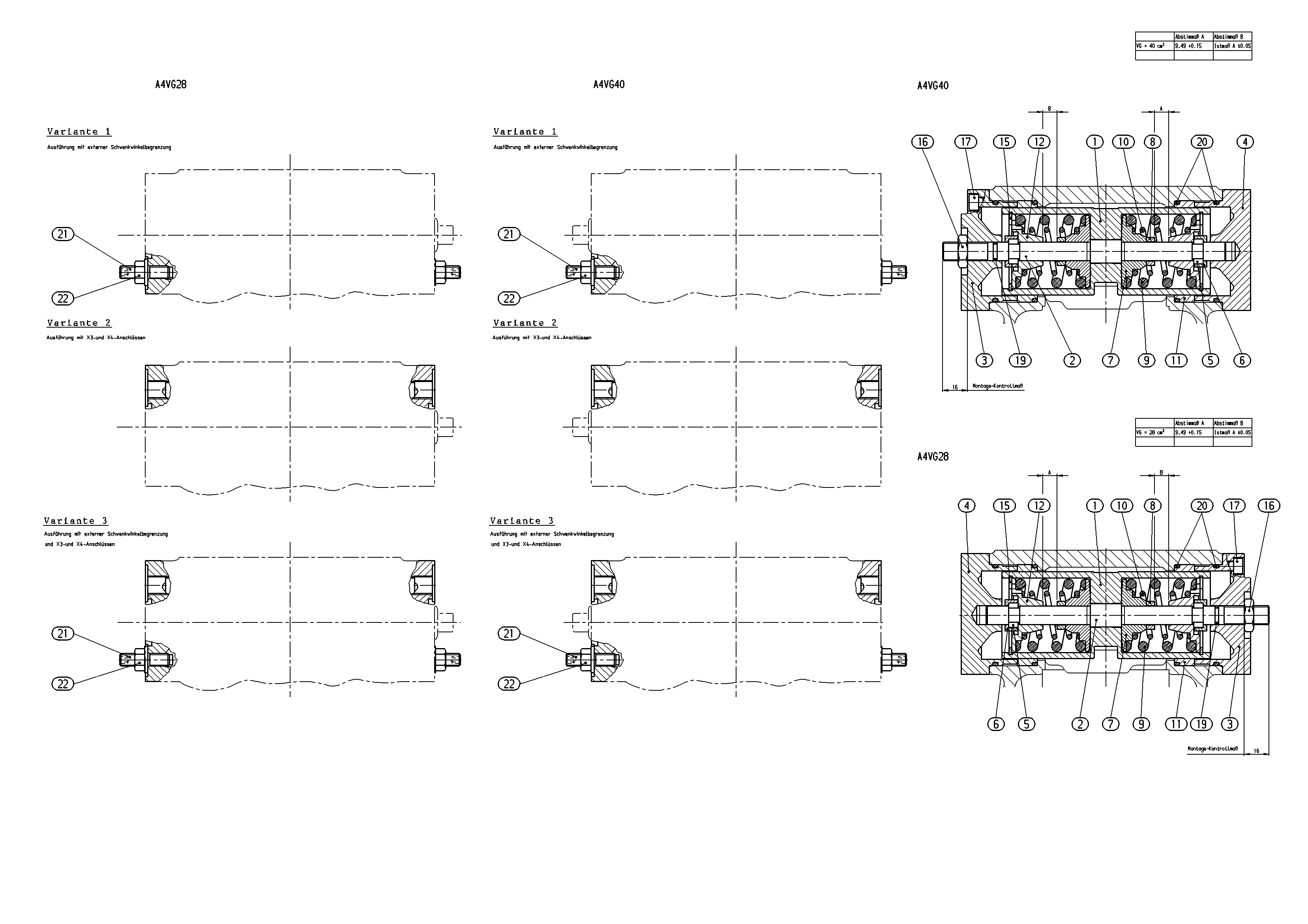

CONTROLR909437420
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909652070 | POSITIONING PISTON | 1 | |
| R909449237 | ROD | 1 | ||
| R909443099 | COVER | 1 | ||
| R909443100 | COVER | 1 | ||
| R902015508 | RING | 2 | ||
| R902013493 | RING | 1 | ||
| R902015509 | RING | 1 | ||
| R902015510 | RING | 1 | ||
| R902015511 | RING | 1 | ||
| R902015512 | RING | 1 | ||
| R902015514 | RING | 1 | ||
| R902015513 | RING | 1 | ||
| R909400470 | SLEEVE | 2 | ||
| R909449243 | SPRING DISK | 2 | ||
| R909435635 | SPACER RING | 2 | ||
| R909435636 | SPACER RING | 1 | ||
| R909445782 | SPACER RING | 1 | ||
| R909445783 | SPACER RING | 1 | ||
| R909445784 | SPACER RING | 1 | ||
| R909445785 | SPACER RING | 1 | ||
| 9 | R909436327 | COMPRESSION SPRING | 2 | |
| R909436328 | COMPRESSION SPRING | 2 | ||
| 11 | R909425657 | BUSHING | 2 | |
| R909449244 | SPRING DISK | 2 | ||
| R909084556 | RETAINING RING | 2 | ||
| R909154918 | HEXAGON NUT | 1 | ||
| R909083019 | SOCKET HEAD CAP SCREW | 8 | ||
| 18 | R909083249 | SPRING LOCK WASHER | 8 | |
| R909085709 | O-RINGD | 1 | ||
| R902600658 | O-RINGD | 4 | ||
| 98 | R902166356 | SEAL KIT | 1 |
