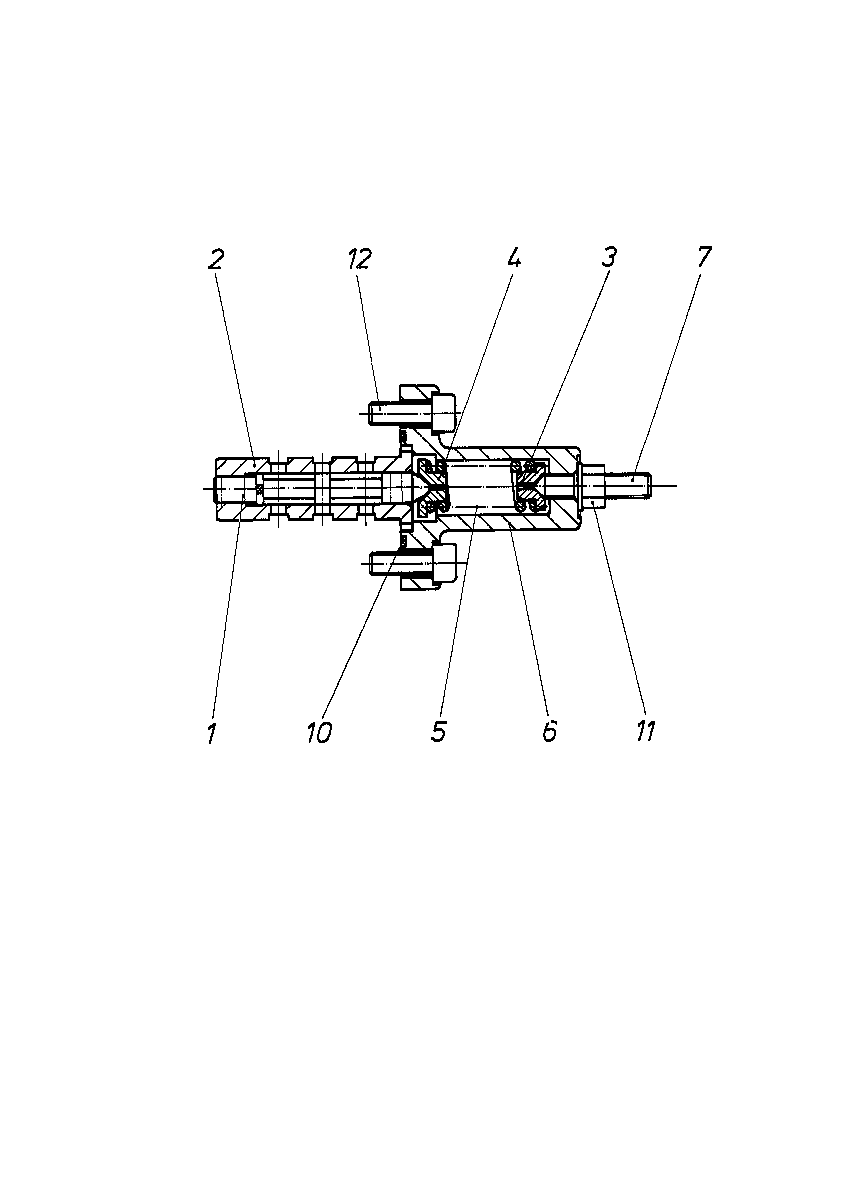

Assembly
CONTROL PARTR909437499
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909426269 | CONTROL PISTON | 1 | ||
| R909426989 | CONTROL SLEEVE | 1 | ||
| R909421396 | SPRING DISK | 1 | ||
| R909421397 | SPRING DISK | 1 | ||
| R909426284 | COMPRESSION SPRING | 1 | ||
| R909426374 | COVER | 1 | ||
| R909420991 | SETSCREW | 1 | ||
| R909154333 | O-RINGD | 1 | ||
| 11 | R909152425 | SEALING NUTD | 1 | |
| R909083019 | SOCKET HEAD CAP SCREW | 2 |
