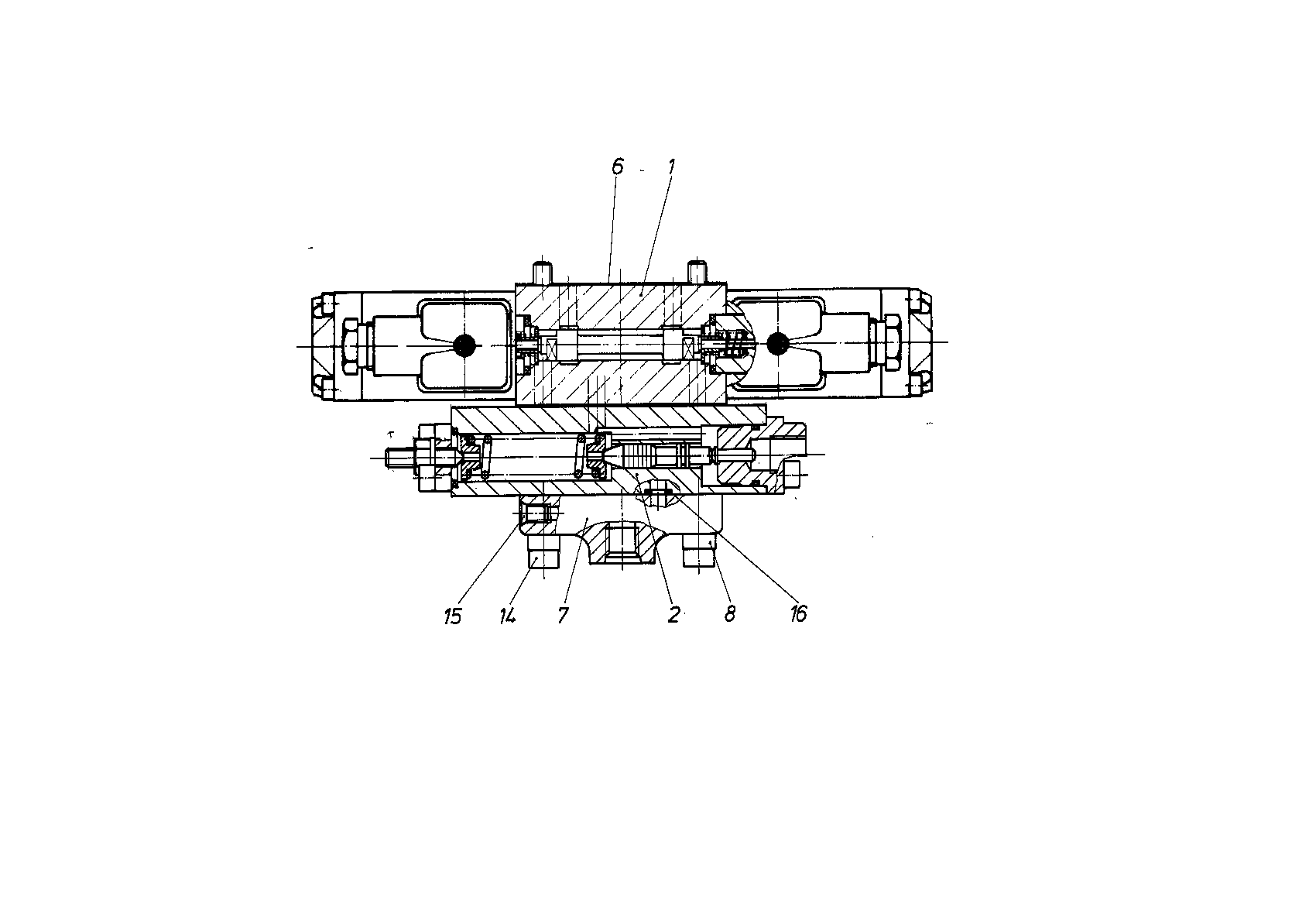

Assembly
DIRECTIONAL-CONTROL VALVER909437618
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909434045 | DIRECTIONAL-CONTROL VALVE Assembly parts list →L | 1 | |
| 2 | R909427506 | UNLOADING VALVE Assembly parts list →L | 1 | |
| R913049009 | SEALD | 2 | ||
| 7 | R909430000 | COVER | 1 | |
| 8 | R909079901 | WASHER | 4 | |
| R909086080 | SOCKET HEAD CAP SCREW | 4 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| 16 | R909086380 | O-RINGD | 1 |
