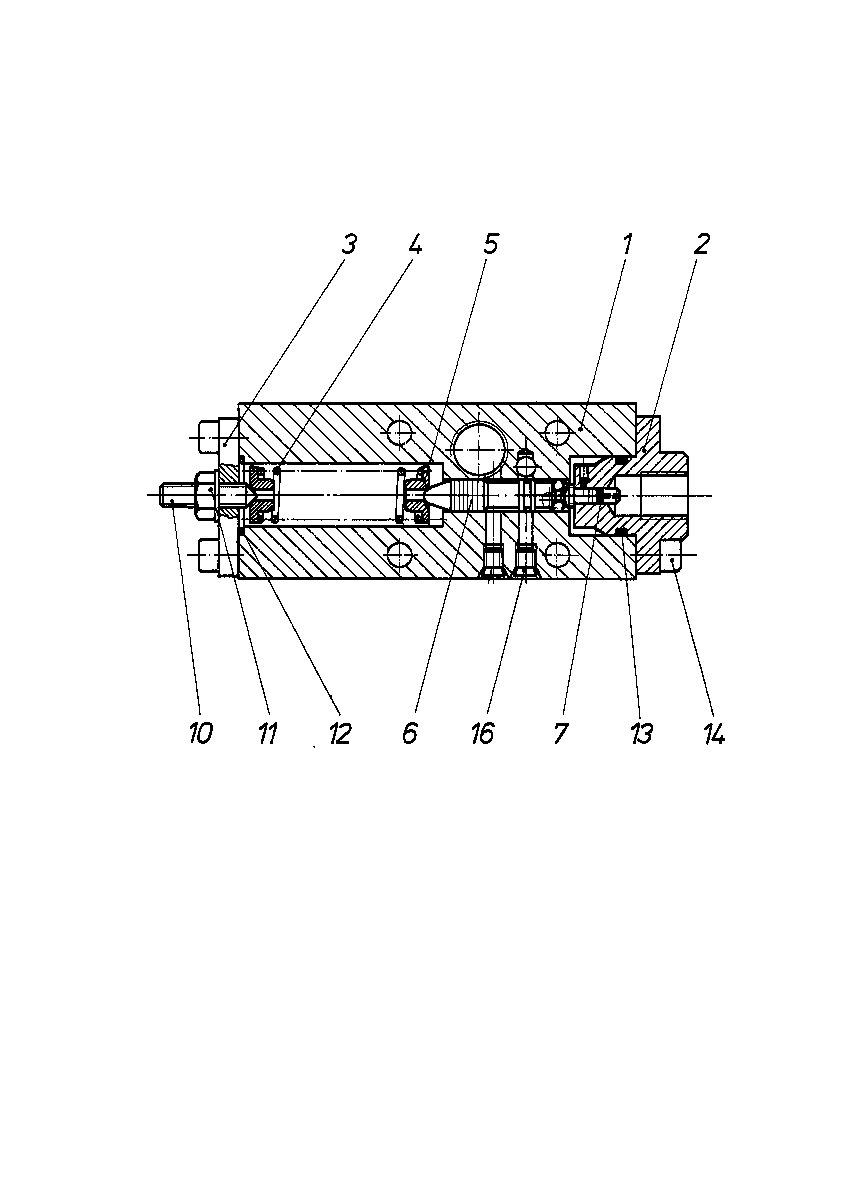

Assembly
UNLOADING VALVER909437690
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909408388 | HOUSING | 1 | ||
| 2 | R909436655 | CONNECTION HOUSING | 1 | |
| 3 | R909404507 | COVER | 1 | |
| R909426938 | COMPRESSION SPRING | 1 | ||
| 5 | R909420971 | SPRING DISK | 2 | |
| R909405777 | CONTROL PISTON | 1 | ||
| R909436656 | PISTON | 1 | ||
| R909157096 | SETSCREW | 1 | ||
| 11 | R909152425 | SEALING NUTD | 1 | |
| 12 | R909083734 | O-RINGD | 1 | |
| 13 | R909084939 | O-RINGD | 1 | |
| 14 | R909083009 | SOCKET HEAD CAP SCREW | 4 | |
| R909831317 | DOUBLE BREAK-OFF PLUG | 2 |
