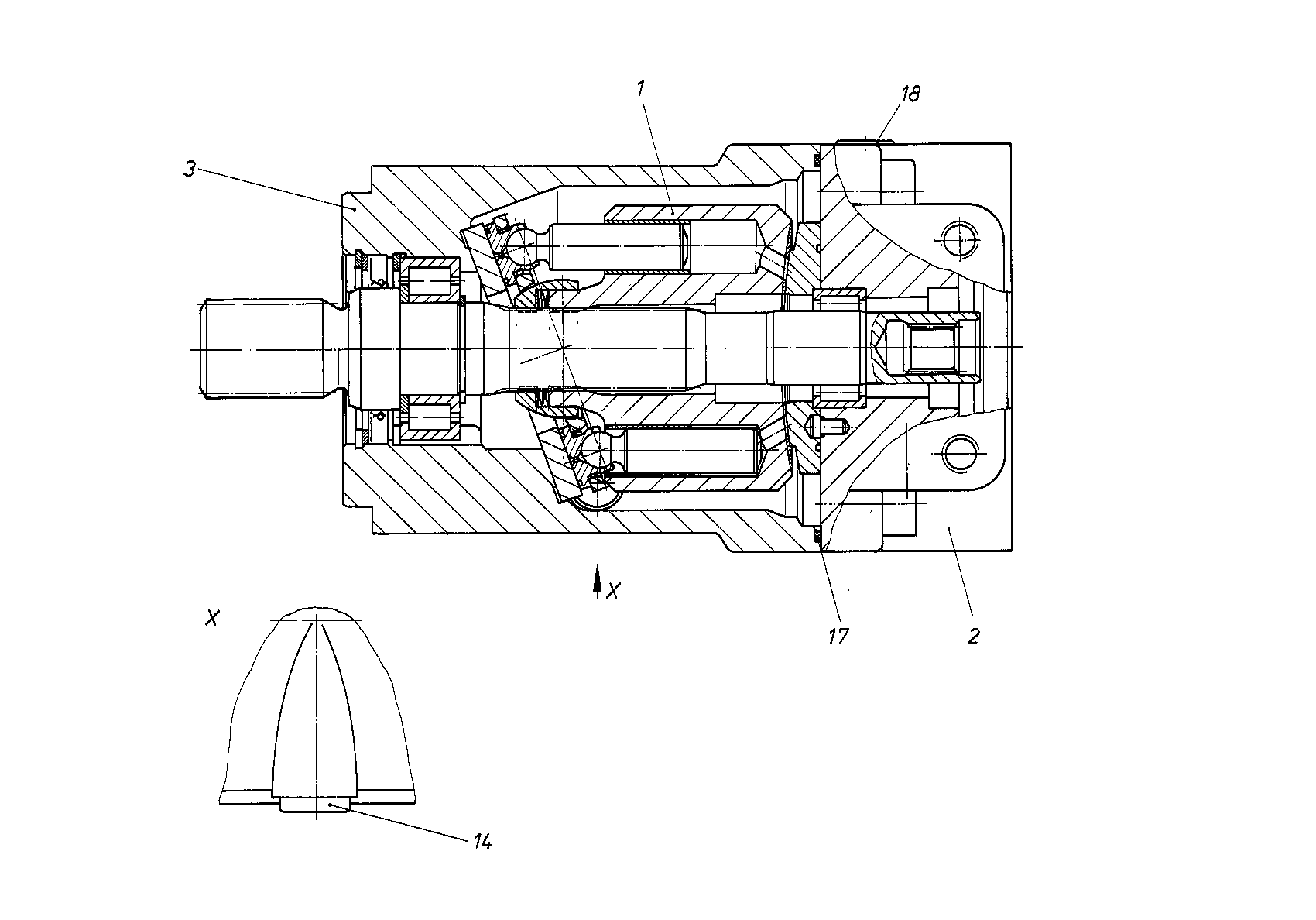

Assembly
AXIAL-PISTON PUMPR909437790
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909437613 | ROTARY GROUP Assembly parts list →L | 1 | |
| 2 | R909434486 | CONNECTION PLATE Assembly parts list →L | 1 | |
| 3 | R909444904 | HOUSING | 1 | |
| 14 | R909153815 | SCREW PLUGD | 2 | |
| R909085363 | O-RINGD | 1 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| 98 | R902166150 | SEAL KIT | 1 |
