Assembly

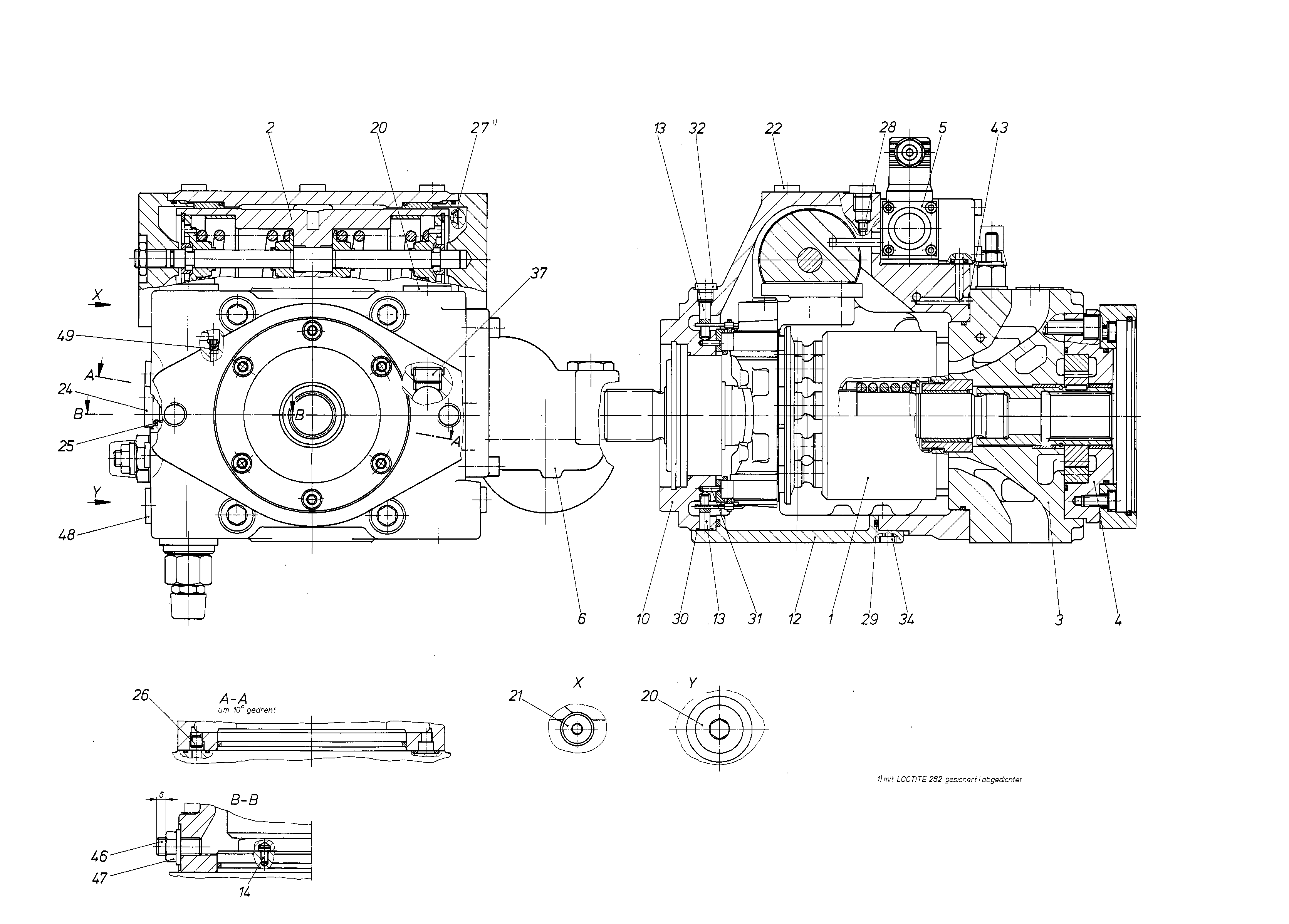

AXIAL-PISTON PUMPR909437795
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909434305 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909433796 | CONTROL Assembly parts list →L | 1 | ||
| R909434887 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909429209 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R909428138 | CONTROL MODULE Assembly parts list →L | 1 | ||
| 6 | R902041020 | FILTER Assembly parts list →L | 1 | |
| 10 | R909435240 | HOUSING | 1 | |
| 12 | R909430288 | HOUSING COVER | 1 | |
| 13 | R909426652 | PIVOT PIN | 2 | |
| R909405732 | POITIONING PIN | 1 | ||
| R909153891 | SCREW PLUGD | 2 | ||
| 21 | R909151979 | SCREW PLUGD | 1 | |
| R909151692 | SCREW PLUGD | 4 | ||
| R909083228 | SCREW PLUG | 1 | ||
| 25 | R909086731 | O-RINGD | 1 | |
| R909153572 | SCREW PLUG | 1 | ||
| 27 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| R909156493 | NOZZLE | 2 | ||
| 29 | R909830256 | O-RINGD | 1 | |
| 30 | R909157293 | QUAD RINGD | 1 | |
| 31 | R913016373 | SLOTTED SPRING PIN | 2 | |
| 32 | R909153364 | SCREW PLUGD | 1 | |
| 34 | R909083017 | SOCKET HEAD CAP SCREW | 8 | |
| R909087913 | SCREW PLUG | 1 | ||
| R909157536 | QUAD RINGD | 1 | ||
| R909154982 | SETSCREW | 1 | ||
| R909087405 | SEALING NUTD | 1 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R909156497 | NOZZLE | 1 |
