Assembly

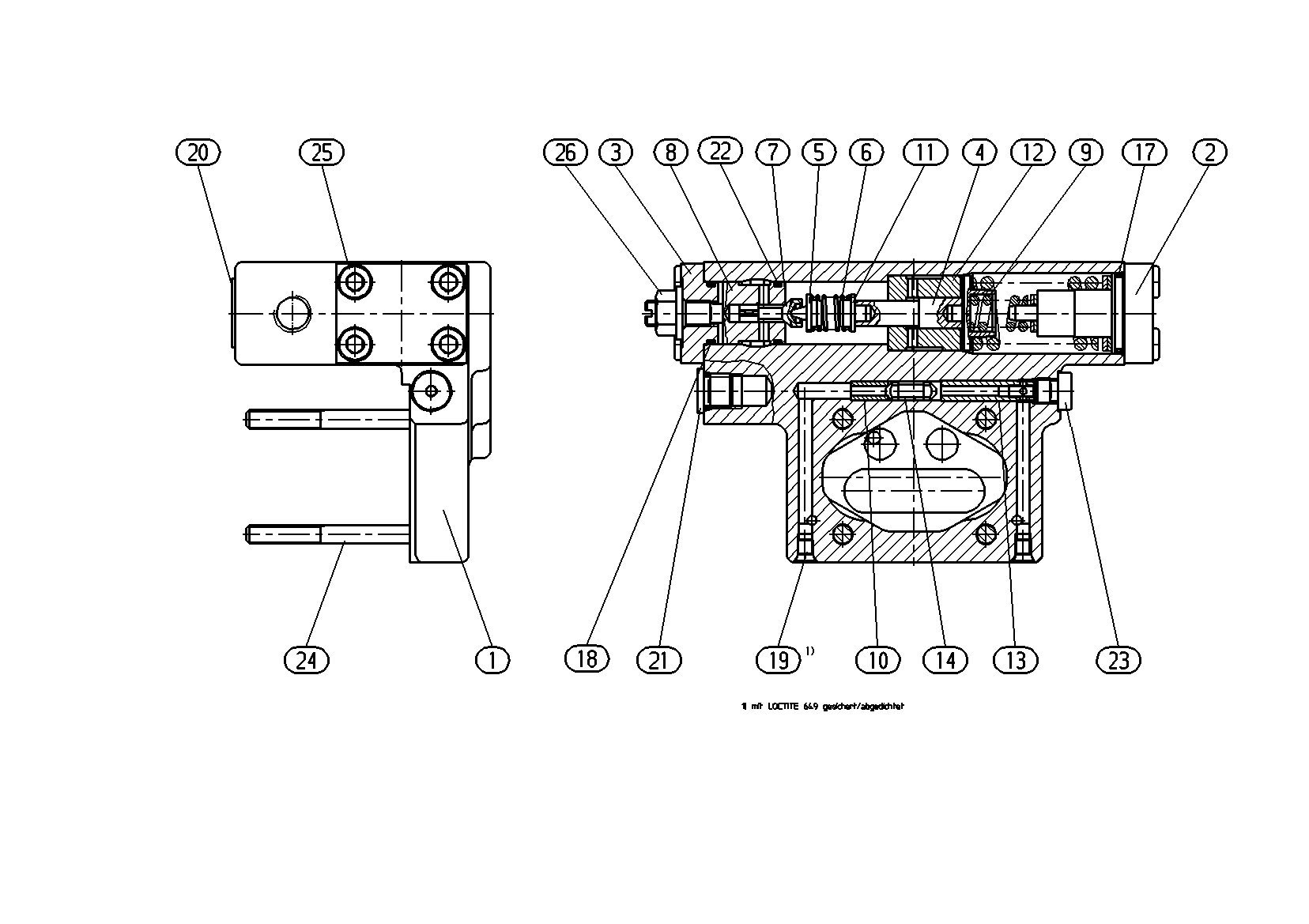

SENSING DEVICER909437817
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909439032 | VALVE HOUSING | 1 | |
| R909435866 | SPRING COVER | 1 | ||
| R909431637 | COVER | 1 | ||
| R909435823 | DIFFERENTIAL PISTON | 1 | ||
| R909435864 | SPRING DISK | 1 | ||
| R909435905 | COMPRESSION SPRING | 1 | ||
| R909435822 | VALVE SPOOL | 1 | ||
| R909435178 | VALVE SEAT | 1 | ||
| 9 | R909435865 | SPRING DISK | 1 | |
| 10 | R909436275 | VALVE BUSHING | 1 | |
| 11 | R909435824 | SPRING DISK | 1 | |
| 12 | R909436094 | VALVE BUSHING | 1 | |
| 13 | R909436231 | VALVE BUSHING | 1 | |
| R909436273 | VALVE SPOOL | 1 | ||
| R909830129 | O-RINGD | 1 | ||
| R909084939 | O-RINGD | 1 | ||
| 19 | R909831317 | DOUBLE BREAK-OFF PLUG | 4 | |
| R909153338 | SCREW PLUGD | 1 | ||
| R909154478 | SCREW PLUGD | 1 | ||
| R909084939 | O-RINGD | 1 | ||
| R909154024 | SCREW PLUGD | 1 | ||
| R909085831 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083017 | SOCKET HEAD CAP SCREW | 8 | ||
| R909152707 | SEALING NUTD | 1 |
