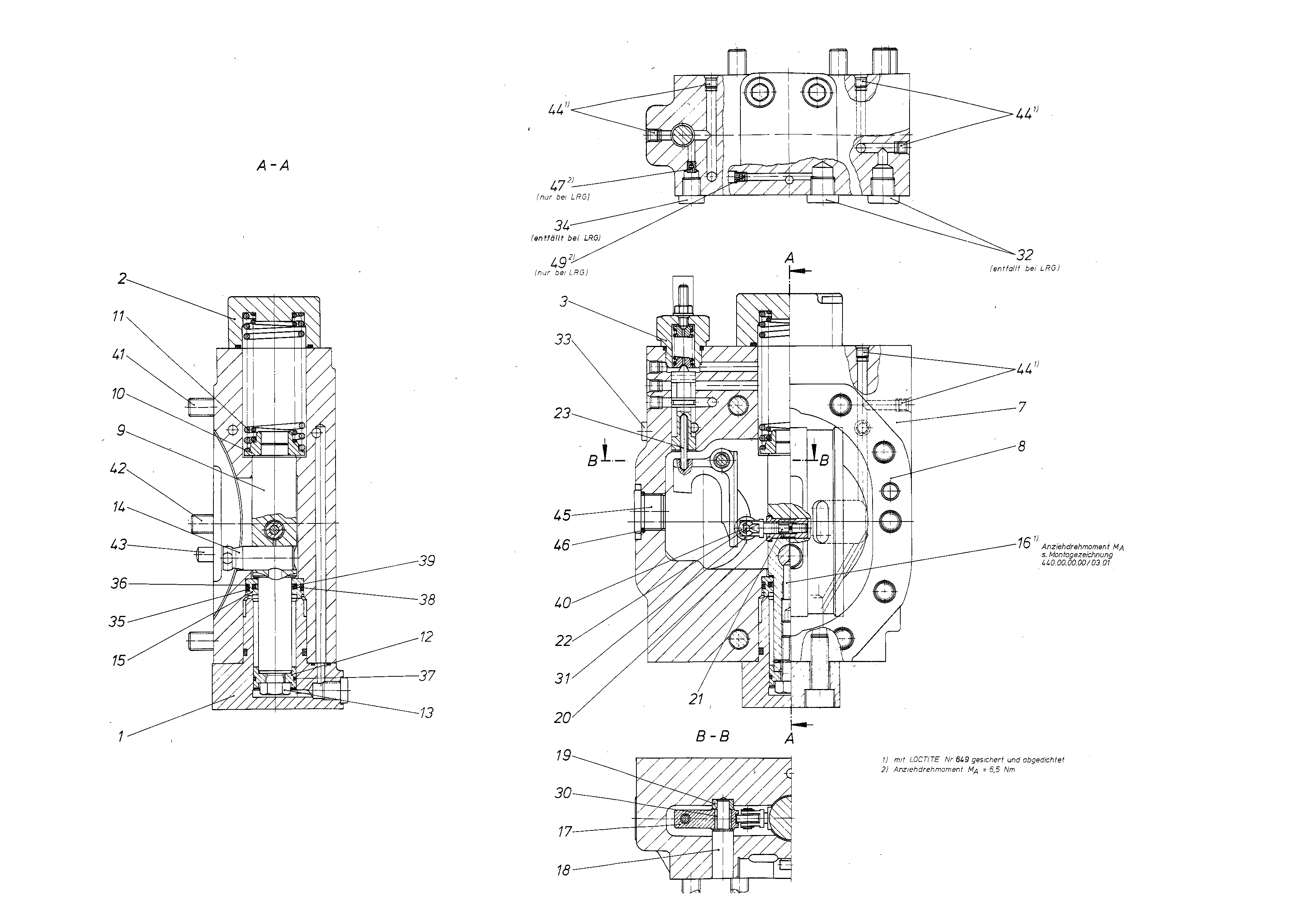

Assembly
CONTROLR909437861
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909427192 | GUIDE COVER Assembly parts list →L | 1 | ||
| 2 | R909423870 | COVER Assembly parts list →L | 1 | |
| 3 | R909437862 | CONTROL PART Assembly parts list →L | 1 | |
| R909426347 | COVER PLATE, CLOCKWISE ROTATION | 1 | ||
| 8 | R902024642 | SEALD | 1 | |
| 9 | R909426602 | POSITIONING PISTON | 1 | |
| R909426603 | SPRING DISK | 1 | ||
| 11 | R909426151 | COMPRESSION SPRING | 1 | |
| 12 | R909426604 | PISTON | 1 | |
| 13 | R902030799 | HEXAGON SCREW | 1 | |
| R909430407 | POSITIONING STUD | 1 | ||
| R909426607 | SEAL RING | 1 | ||
| R909416798 | SETSCREW | 1 | ||
| R909444098 | LEVER | 1 | ||
| R909416683 | BEARING BOLT | 1 | ||
| 19 | R909412689 | BUSHING | 1 | |
| R909426915 | ADJUSTING BUSH | 1 | ||
| R909426917 | MEASURING PISTON | 1 | ||
| R909411231 | BOLT | 1 | ||
| R909440328 | PIN | 1 | ||
| 30 | R909156588 | NEEDLE-ROLLER ASSEMBLY | 1 | |
| 31 | R909087327 | DEEP-GROOVE BALL BEARING | 1 | |
| 32 | R909151979 | SCREW PLUGD | 2 | |
| R909154024 | SCREW PLUGD | 1 | ||
| 34 | R909151692 | SCREW PLUGD | 1 | |
| R909152146 | O-RINGD | 1 | ||
| R909157762 | BACKUP RINGD | 1 | ||
| R909156962 | R-RINGD | 1 | ||
| R909157763 | ROD SEALD | 1 | ||
| 39 | R909086517 | O-RINGD | 1 | |
| R909085810 | LOCKING WASHER | 2 | ||
| 41 | R909083070 | SOCKET HEAD CAP SCREW | 7 | |
| 42 | R909083198 | SOCKET HEAD CAP SCREW | 1 | |
| R913009667 | STRAIGHT PIN | 2 | ||
| 44 | R909831319 | DOUBLE BREAK-OFF PLUG | 5 | |
| R909083226 | SCREW PLUG | 1 | ||
| 46 | R909086517 | O-RINGD | 1 |
