Assembly

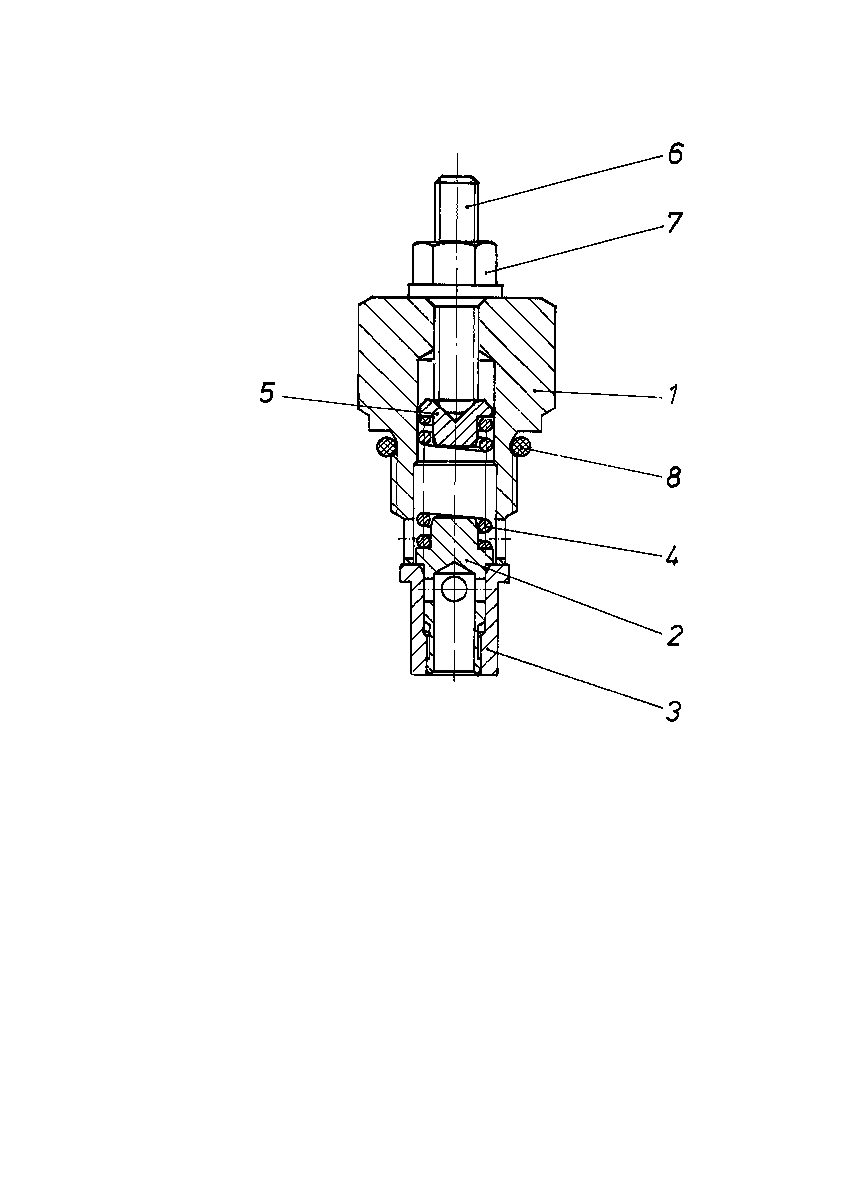

PRESSURE RELIEF VALVER909437886
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909439129 | SCREW PLUG | 1 | |
| 2 | R909432815 | VALVE SPOOL | 1 | |
| 3 | R909432816 | BUSHING | 1 | |
| 4 | R909419332 | COMPRESSION SPRING | 1 | |
| 5 | R909402842 | SPRING DISK | 1 | |
| 6 | R909154140 | SETSCREW | 1 | |
| 7 | R909152425 | SEALING NUTD | 1 | |
| 8 | R909083753 | O-RINGD | 1 |
