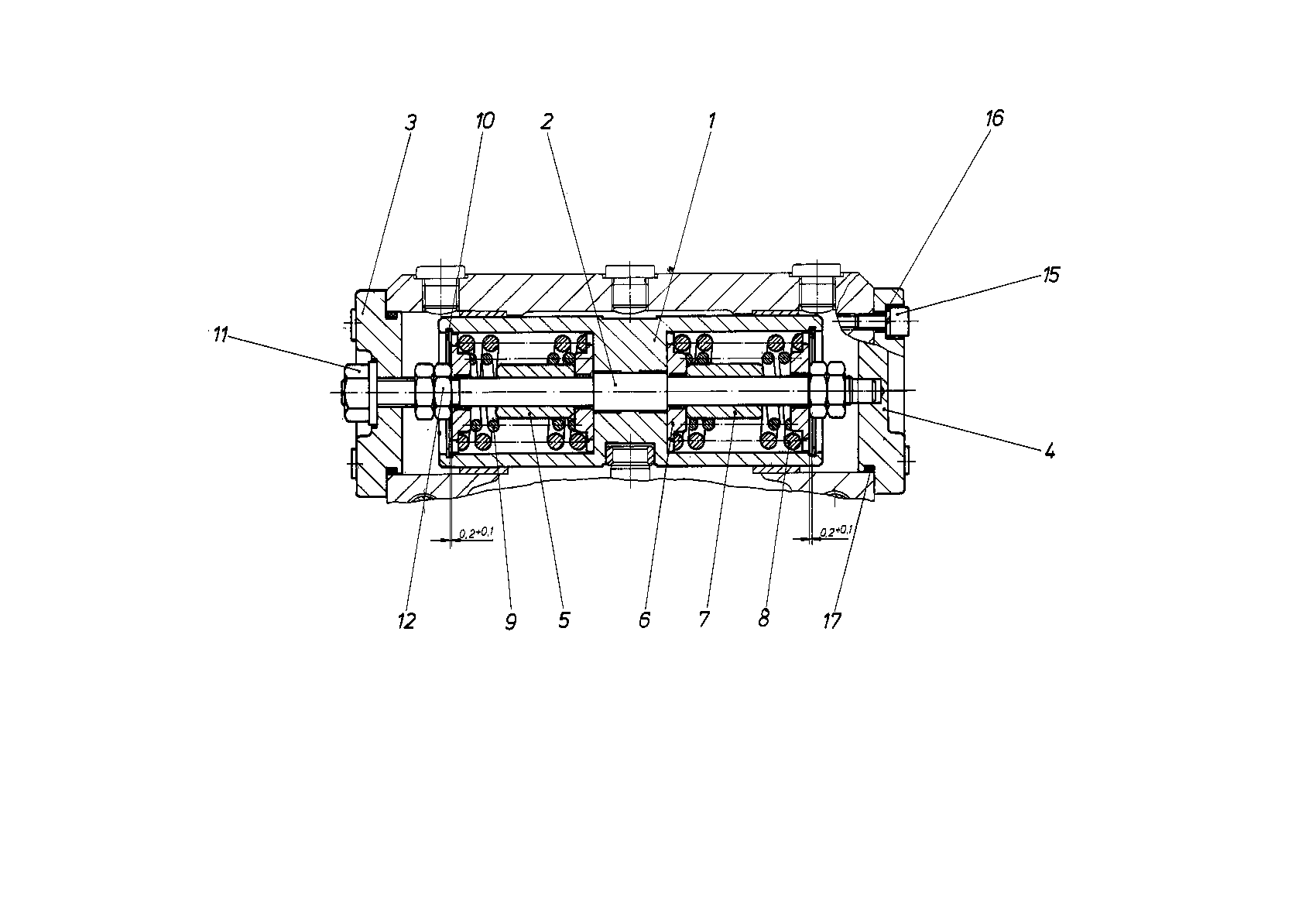

Assembly
CONTROLR909438199
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909651773 | POSITIONING PISTON | 1 | ||
| 2 | R909414460 | ROD | 1 | |
| R909400425 | COVER | 1 | ||
| R909414456 | COVER | 1 | ||
| R909408364 | SPRING DISK | 4 | ||
| R909439500 | SPACER BUSHING | 2 | ||
| R909445003 | SPACER BUSHING | 1 | ||
| R909445004 | SPACER BUSHING | 1 | ||
| R909439494 | COMPRESSION SPRING | 2 | ||
| R909439495 | COMPRESSION SPRING | 2 | ||
| R909083400 | RETAINING RING | 2 | ||
| R909153271 | SEALING NUTD | 1 | ||
| R902017521 | HEXAGON NUT | 4 | ||
| 15 | R909083018 | SOCKET HEAD CAP SCREW | 8 | |
| R909083249 | SPRING LOCK WASHER | 8 | ||
| R909086804 | O-RINGD | 2 |
