Assembly

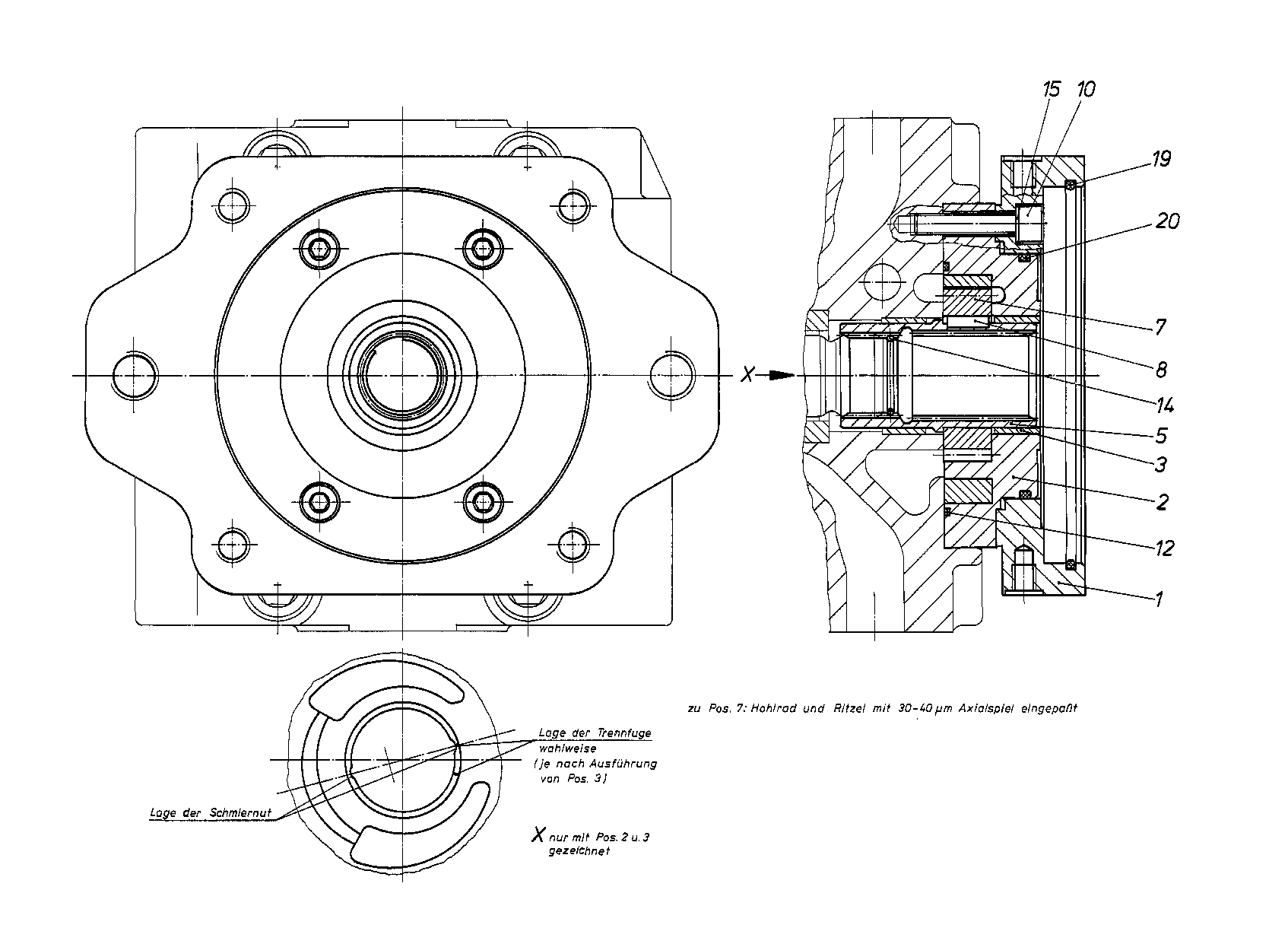

INTERNAL GEAR PUMPR909438206
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902070311 | INTERMEDIATE FLANGE | 1 | ||
| R909439853 | PUMP COVER | 1 | ||
| R902260548 | BUSHING | 1 | ||
| R902013256 | THROUGH DRIVE SHAFT | 1 | ||
| R902006256 | WHEEL SET | 1 | ||
| R909830193 | PARALLEL KEY | 1 | ||
| R909154979 | SOCKET HEAD CAP SCREW | 4 | ||
| R913037188 | KANTSEALD | 1 | ||
| R902601474 | SNAP RING | 1 | ||
| R909152493 | SEAL RINGD | 4 | ||
| R909085364 | O-RINGD | 1 | ||
| R909083790 | O-RINGD | 1 |
