Assembly

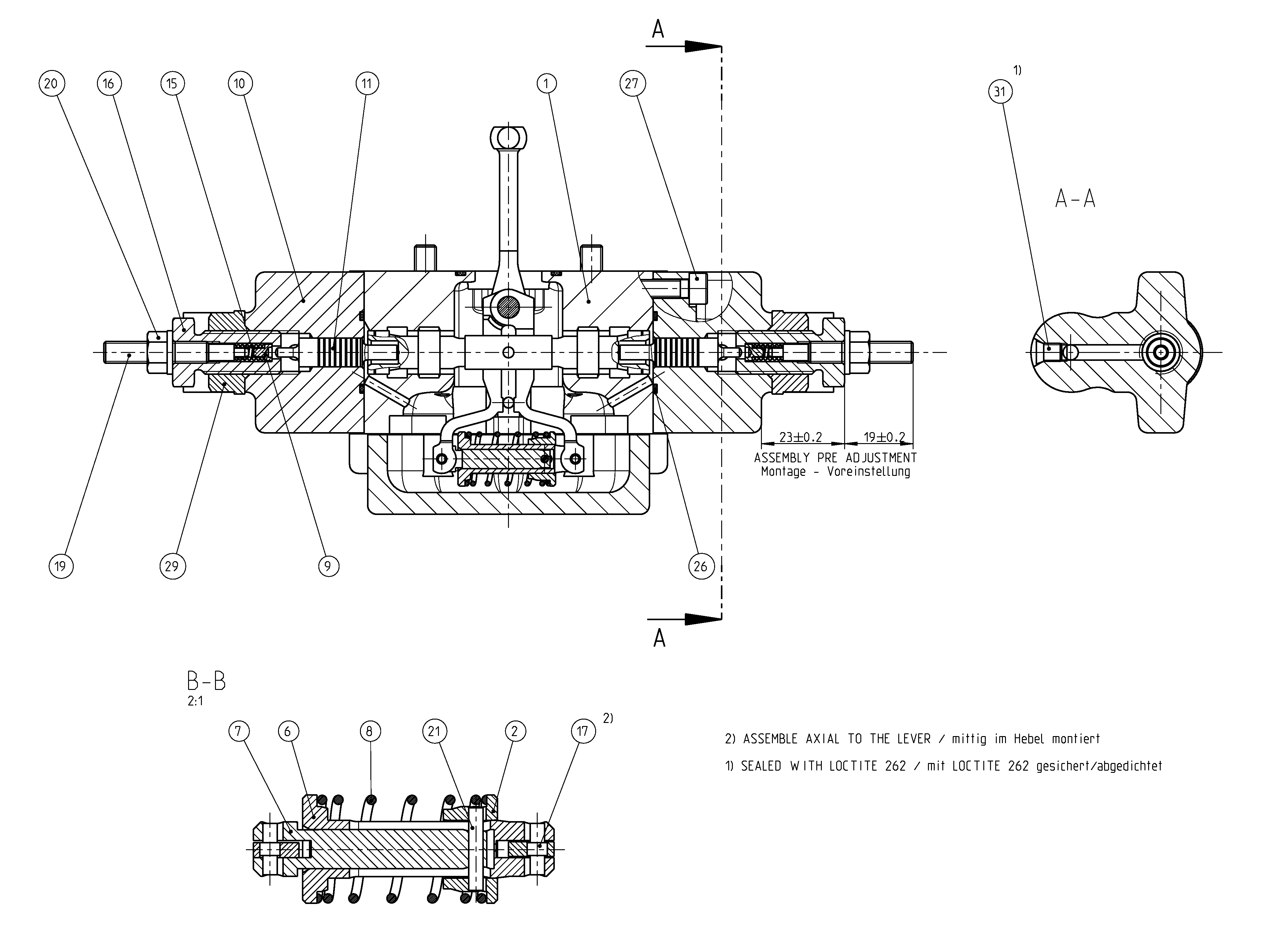

CONTROL UNITR909438292
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909438291 | CONTROL UNIT Assembly parts list →L | 1 | ||
| R909443393 | SPRING DISK | 1 | ||
| R909443203 | SPRING BUSH | 1 | ||
| R909440602 | SPRING BOLT | 1 | ||
| R909439701 | COMPRESSION SPRING | 1 | ||
| R909443400 | SPRING DISK | 2 | ||
| R909439664 | HOUSING | 2 | ||
| R909439615 | PISTON | 2 | ||
| R909443395 | COMPRESSION SPRING | 2 | ||
| R909443588 | ADJUSTING SCREW | 2 | ||
| R909440606 | BOLT | 2 | ||
| R909443383 | SETSCREW | 2 | ||
| R909152425 | SEALING NUTD | 2 | ||
| R909830540 | NEEDLE-ROLLER | 1 | ||
| R909083737 | O-RINGD | 2 | ||
| R909083010 | SOCKET HEAD CAP SCREW | 8 | ||
| R909087405 | SEALING NUTD | 2 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 | ||
| 98 | R902002418 | SEAL KIT | 1 |
