Assembly

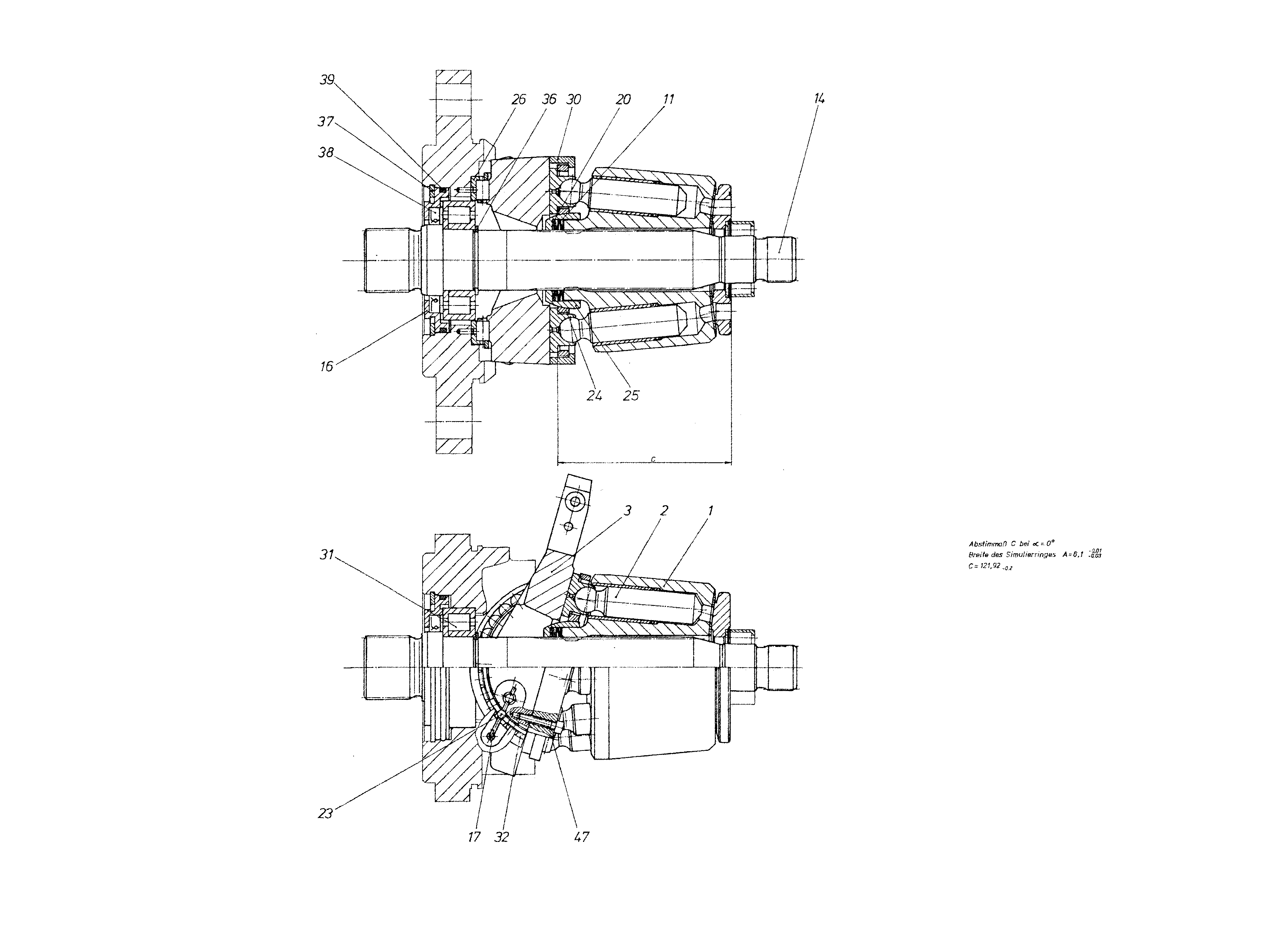

ROTARY GROUPR909438364
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909443609 | CYLINDER Assembly parts list →L | 1 | ||
| R909443559 | PISTON PAD | 9 | ||
| R909437708 | CRADLE | 1 | ||
| R909074127 | CUP-SPRING STACK | 1 | ||
| R909439683 | DRIVE SHAFT | 1 | ||
| R909417940 | LOCKING RING | 1 | ||
| R909076233 | WIRE | 2 | ||
| R909080152 | SHIM RING | 1 | ||
| R909080153 | SHIM RING | 1 | ||
| R909412704 | SHIM RING | 1 | ||
| R909412705 | SHIM RING | 1 | ||
| R909401842 | IDLE ROLLER | 2 | ||
| R902210003 | RETAINING PLATE | 1 | ||
| R909426458 | RETAINING BALL | 1 | ||
| R902066594 | BEARING SHELL PAIR | 1 | ||
| R909436083 | RETAINING SEGMENT | 2 | ||
| R909156945 | CYL. ROLLER BEARING | 1 | ||
| R909154621 | CAGE PAIR | 1 | ||
| R909151259 | RETAINING RING | 1 | ||
| R909083417 | RETAINING RING | 1 | ||
| R909830386 | SHAFT SEALING RINGD | 1 | ||
| R909083825 | O-RINGD | 1 | ||
| R909831329 | SOCKET HEAD CAP SCREW | 4 |
