Assembly

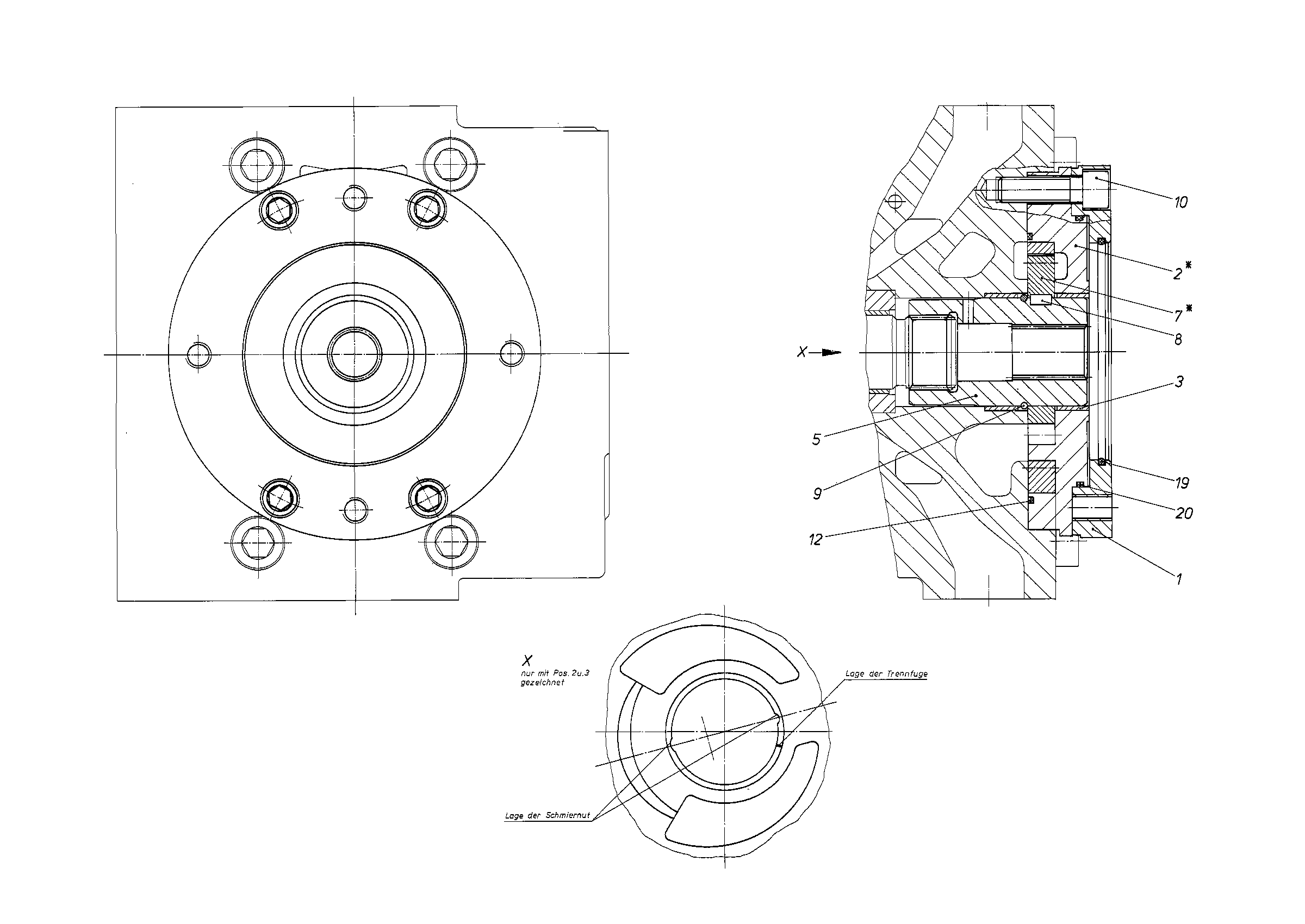

INTERNAL GEAR PUMPR909438367
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909439651 | INTERMEDIATE FLANGE | 1 | ||
| R909439909 | PUMP COVER | 1 | ||
| R902260553 | BUSHING | 1 | ||
| R902013164 | THROUGH DRIVE SHAFT | 1 | ||
| R902006261 | WHEEL SET | 1 | ||
| R902025810 | PARALLEL KEY | 1 | ||
| R909154019 | SNAP RING | 1 | ||
| R909086573 | SOCKET HEAD CAP SCREW | 4 | ||
| R913026809 | KANTSEALD | 1 | ||
| R909085363 | O-RINGD | 1 | ||
| R909154589 | O-RINGD | 1 |
