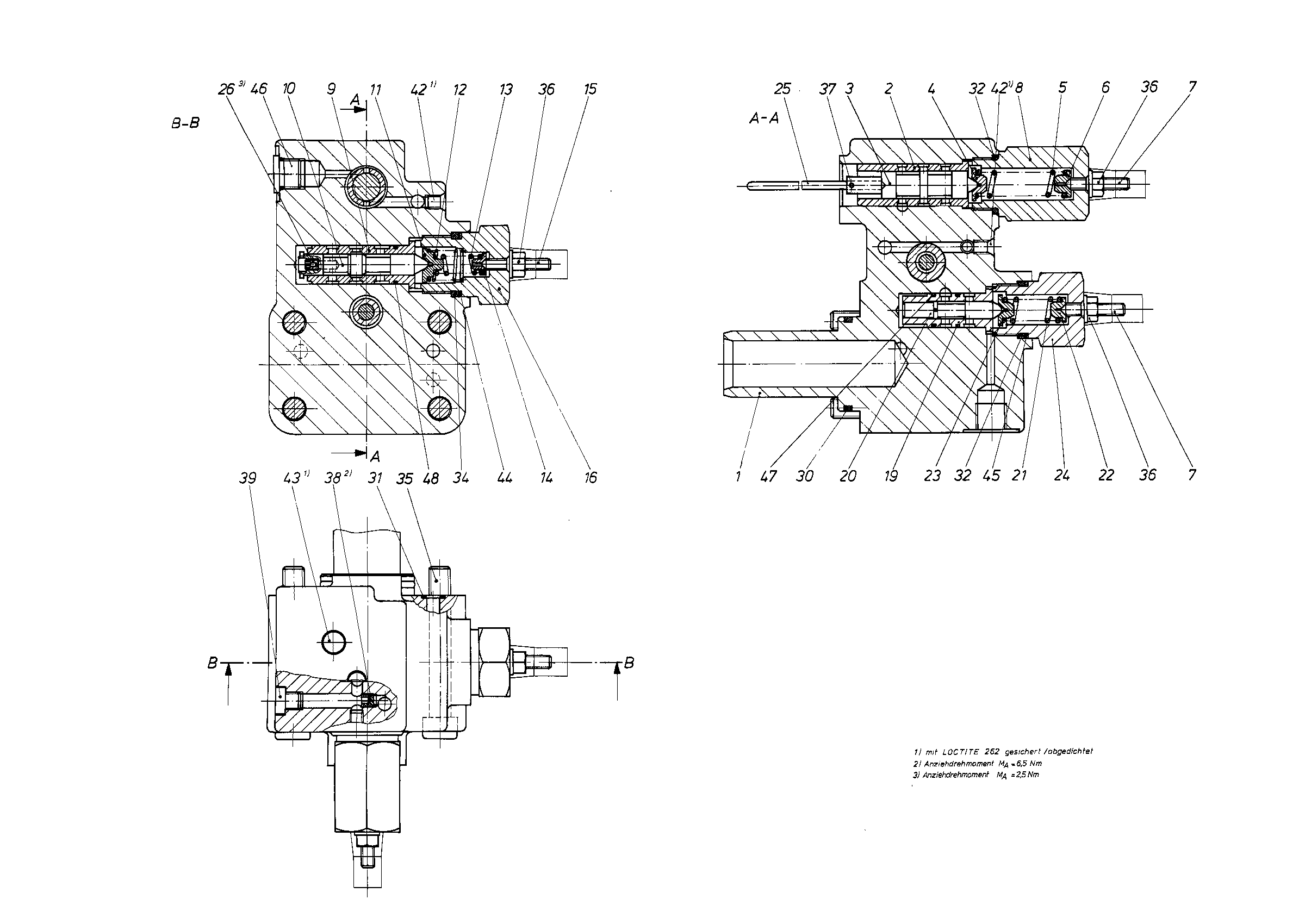

Assembly
CONTROL UNITR909438415
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909444625 | CONTROL HOUSING | 1 | |
| 2 | R909436593 | CONTROL SLEEVE | 1 | |
| 3 | R909444000 | CONTROL PISTON | 1 | |
| 4 | R909431526 | SPRING DISK | 1 | |
| 5 | R909435520 | COMPRESSION SPRING | 1 | |
| 6 | R909420414 | SPRING DISK | 1 | |
| 7 | R909420991 | SETSCREW | 2 | |
| 8 | R909435522 | SCREW PLUG | 1 | |
| R909444564 | CONTROL SLEEVE | 1 | ||
| 10 | R909443934 | CONTROL PISTON | 1 | |
| 11 | R909418698 | SPRING DISK | 1 | |
| 12 | R909410091 | COMPRESSION SPRING | 1 | |
| R909432906 | COMPRESSION SPRING | 1 | ||
| R909422325 | SPRING DISK | 1 | ||
| R909421402 | SETSCREW | 1 | ||
| R909435552 | SCREW PLUG | 1 | ||
| R909444628 | CONTROL SLEEVE | 1 | ||
| R909444627 | CONTROL PISTON | 1 | ||
| 21 | R909426284 | COMPRESSION SPRING | 1 | |
| R909421396 | SPRING DISK | 1 | ||
| 23 | R909421397 | SPRING DISK | 1 | |
| R909439578 | SCREW PLUG | 1 | ||
| R909439025 | PIN | 1 | ||
| 26 | R902276325 | THROTTLE SCREW | 1 | |
| 30 | R909085545 | O-RINGD | 1 | |
| 31 | R909086498 | O-RINGD | 3 | |
| 32 | R909086517 | O-RINGD | 2 | |
| 34 | R909083797 | O-RINGD | 1 | |
| 35 | R909083071 | SOCKET HEAD CAP SCREW | 4 | |
| R909152425 | SEALING NUTD | 3 | ||
| 37 | R902600212 | SLOTTED SPRING PIN | 1 | |
| 38 | R909156494 | NOZZLE | 1 | |
| R909154024 | SCREW PLUGD | 1 | ||
| 42 | R909831318 | DOUBLE BREAK-OFF PLUG | 2 | |
| 43 | R909831319 | DOUBLE BREAK-OFF PLUG | 5 | |
| R909087626 | BACKUP RINGD | 1 | ||
| 45 | R909830510 | BACKUP RINGD | 1 | |
| 46 | R909153371 | SCREW PLUGD | 1 | |
| 47 | R909830917 | R-RINGD | 2 | |
| 48 | R909156358 | R-RINGD | 1 |
