Assembly

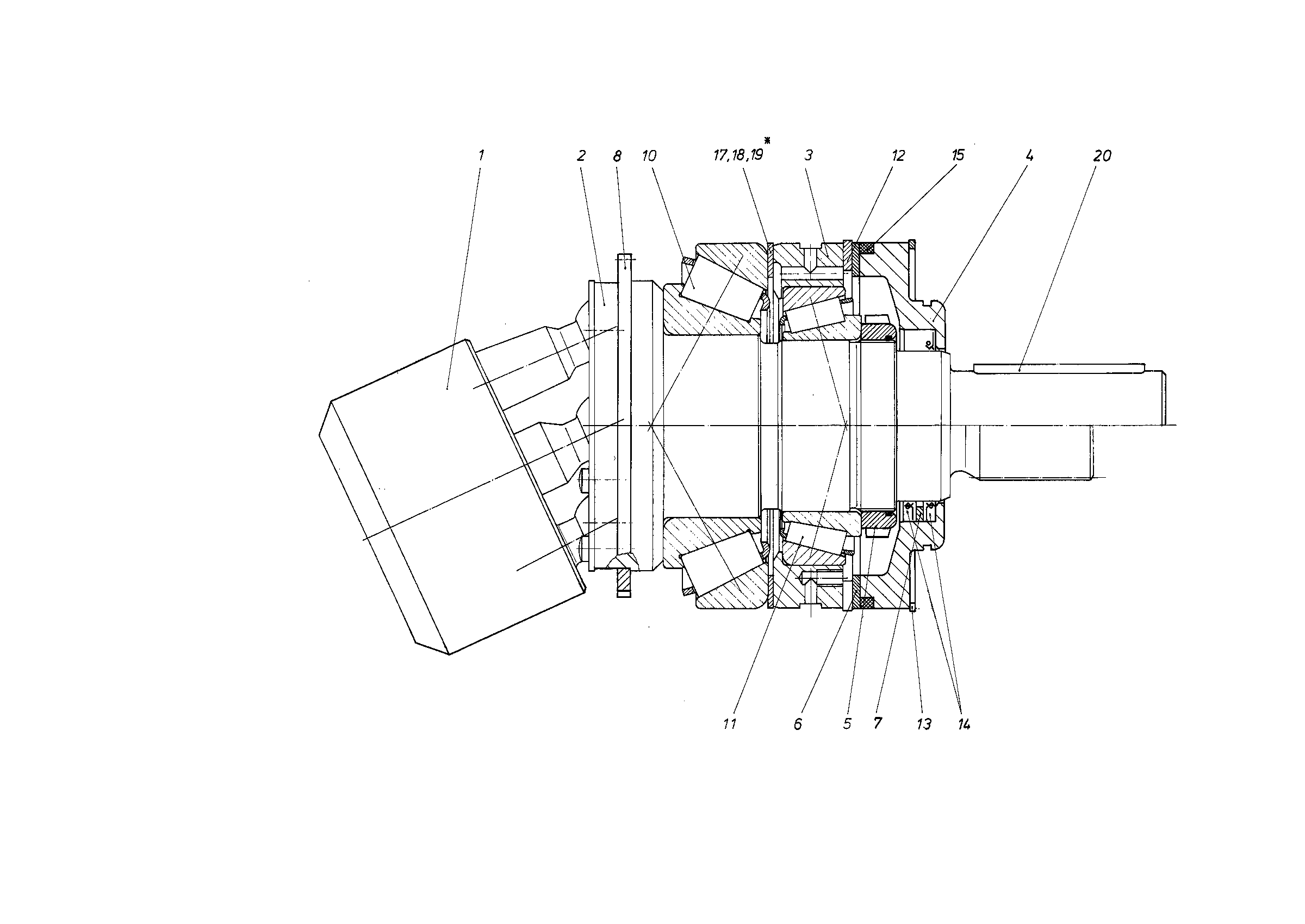

ROTARY GROUPR909438525
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909418110 | ROTARY GROUP Assembly parts list →L | 1 | |
| 2 | R909439894 | DRIVE SHAFT | 1 | |
| R909420127 | BEARING RING | 1 | ||
| R909419902 | LOCKING RINGD | 1 | ||
| 5 | R909157384 | SLOTTED ROUND NUT | 1 | |
| R909157310 | SUPPORTING DISC | 1 | ||
| 8 | R909439895 | ANNULAR GEAR | 1 | |
| 10 | R909157196 | TAPERED-ROLLER BEARING | 1 | |
| 11 | R909157197 | TAPERED-ROLLER BEARING | 1 | |
| 12 | R909157198 | RETAINING RING | 1 | |
| 13 | R909157311 | SNAP RING | 1 | |
| 14 | R909831663 | ROTARY SHAFT LIP SEALD | 1 | |
| 15 | R909157237 | O-RINGD | 1 | |
| R909157199 | SHIM RING | 2 | ||
| R909157201 | SHIM RING | 2 |
