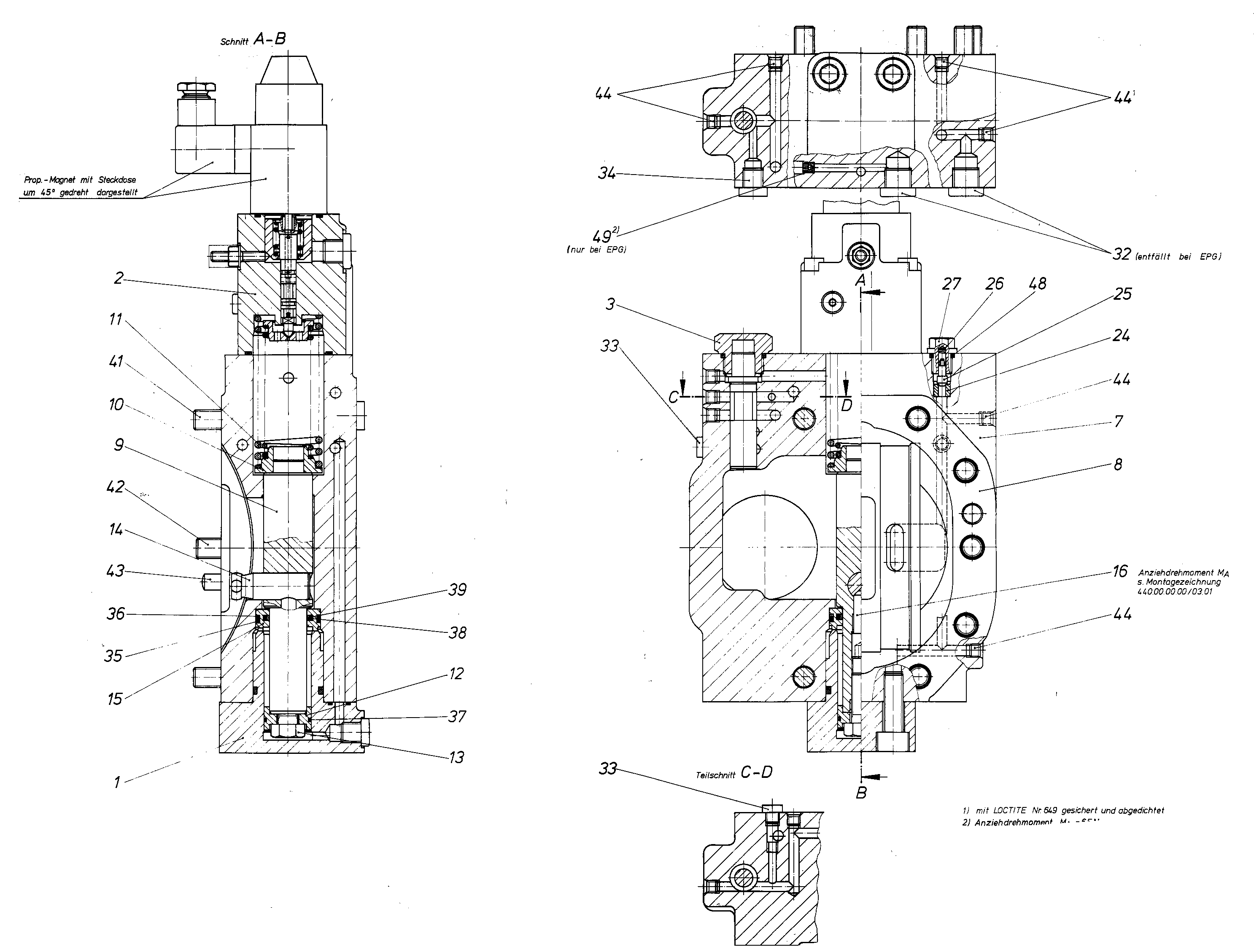

Assembly
CONTROLR909438608
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909427195 | GUIDE COVER Assembly parts list →L | 1 | ||
| R909427966 | CONTROL UNIT Assembly parts list →L | 1 | ||
| R909437139 | SEALING CAP Assembly parts list →L | 1 | ||
| R909430416 | COVER PLATE, CLOCKWISE ROTATION | 1 | ||
| R902024644 | SEALD | 1 | ||
| R909430144 | POSITIONING PISTON | 1 | ||
| R909430145 | SPRING DISK | 1 | ||
| R909426025 | COMPRESSION SPRING | 1 | ||
| R909430148 | PISTON | 1 | ||
| R909083210 | SOCKET HEAD CAP SCREW | 1 | ||
| R909425458 | POSITIONING STUD | 1 | ||
| R909430147 | SEAL RING | 1 | ||
| R909408958 | SETSCREW | 1 | ||
| R909425801 | BUSHING | 1 | ||
| R909415579 | VALVE CONE | 1 | ||
| R909426948 | COMPRESSION SPRING | 1 | ||
| R902035187 | SCREW PLUG | 1 | ||
| R909153816 | SCREW PLUGD | 2 | ||
| R909154024 | SCREW PLUGD | 2 | ||
| R909151692 | SCREW PLUGD | 1 | ||
| R909086334 | O-RINGD | 1 | ||
| R909157785 | BACKUP RINGD | 1 | ||
| R909156647 | R-RINGD | 1 | ||
| R909157786 | ROD SEALD | 1 | ||
| R909152146 | O-RINGD | 1 | ||
| R909083142 | SOCKET HEAD CAP SCREW | 7 | ||
| R909083129 | SOCKET HEAD CAP SCREW | 1 | ||
| R913009666 | STRAIGHT PIN | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 8 | ||
| R909083749 | O-RINGD | 1 |
