Assembly

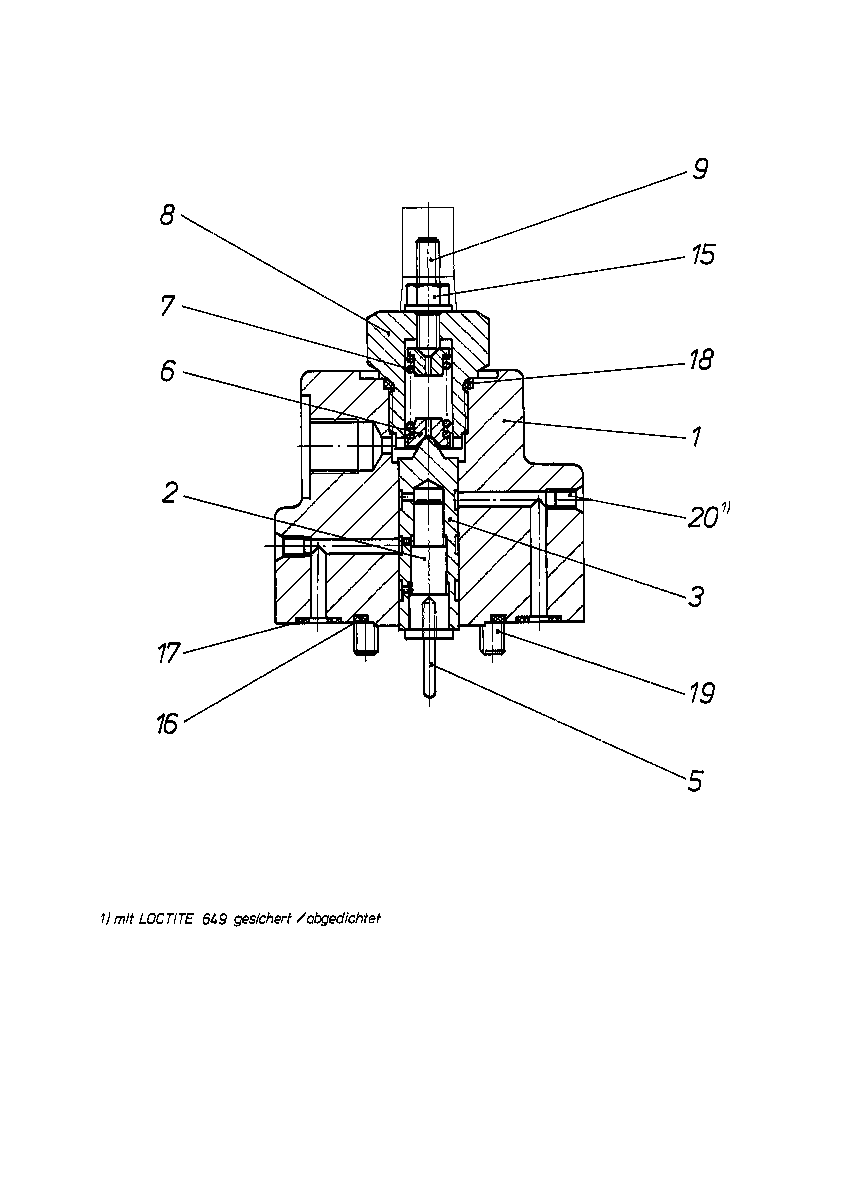

CONTROL UNITR909438617
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909440048 | CONTROL HOUSING | 1 | |
| 2 | R909440060 | CONTROL PISTON | 1 | |
| 3 | R909440059 | CONTROL SLEEVE | 1 | |
| 5 | R909431195 | PIN | 1 | |
| R909430649 | SPRING DISK | 2 | ||
| R909430587 | COMPRESSION SPRING | 1 | ||
| 8 | R909430648 | SCREW PLUG | 1 | |
| 9 | R909420991 | SETSCREW | 1 | |
| 15 | R909152425 | SEALING NUTD | 1 | |
| 16 | R909086730 | O-RINGD | 1 | |
| 17 | R909086498 | O-RINGD | 2 | |
| 18 | R909083757 | O-RINGD | 1 | |
| 19 | R909083030 | SOCKET HEAD CAP SCREW | 4 | |
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 |
