Assembly

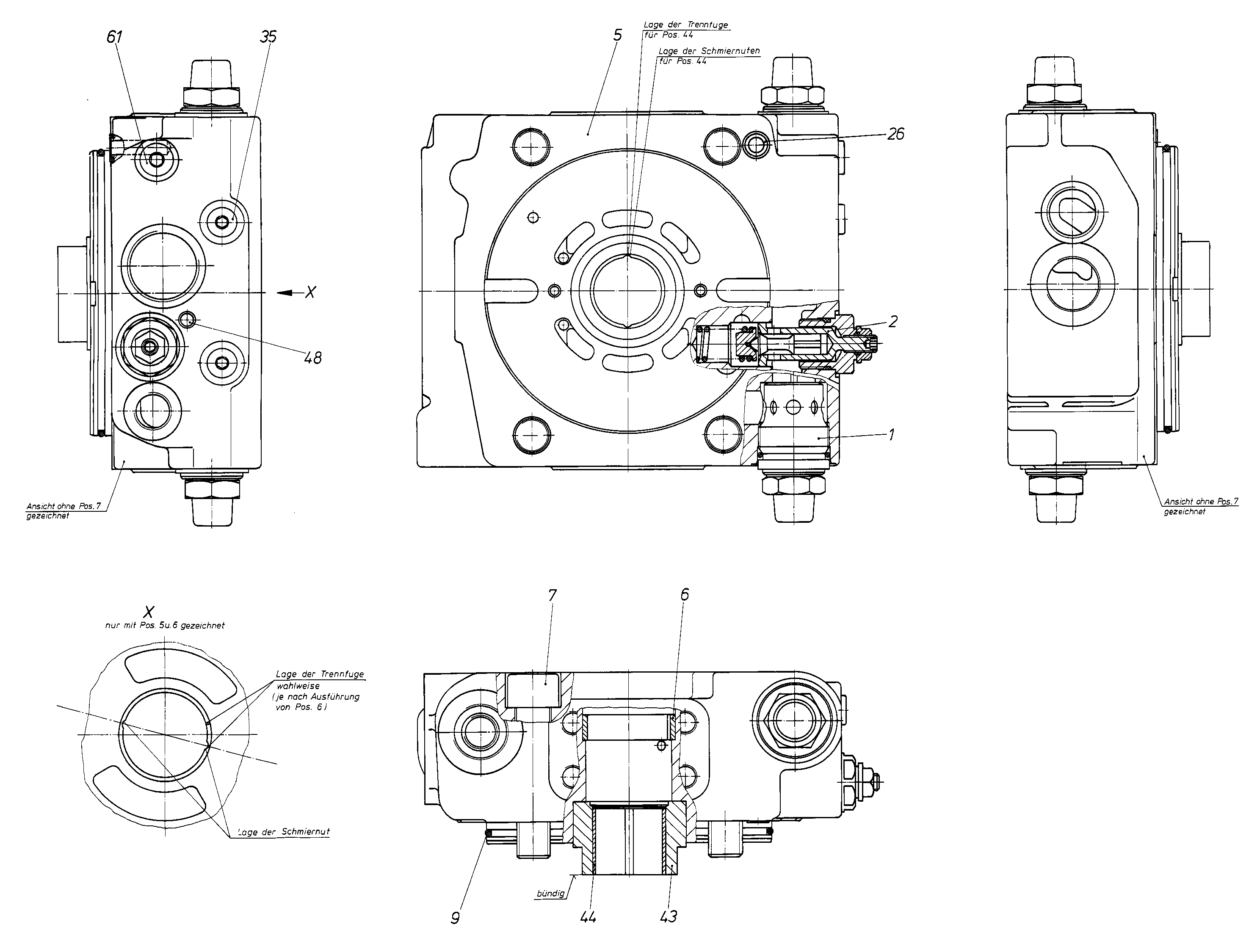

CONNECTION PLATER909438639
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902603817 | DELIVERY-VALVE ASSEMBLY Assembly parts list →L | 2 | ||
| R902228944 | PRESSURE RELIEF VALVE Assembly parts list →L | 1 | ||
| R909449065 | CONNECTION PLATE | 1 | ||
| R902260553 | BUSHING | 1 | ||
| R909830008 | SOCKET HEAD CAP SCREW | 4 | ||
| R909086427 | O-RINGD | 1 | ||
| R909086333 | O-RINGD | 2 | ||
| R909151692 | SCREW PLUGD | 2 | ||
| R909445670 | BUSHING | 1 | ||
| R902260555 | BUSHING | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909151979 | SCREW PLUGD | 1 |
