Assembly

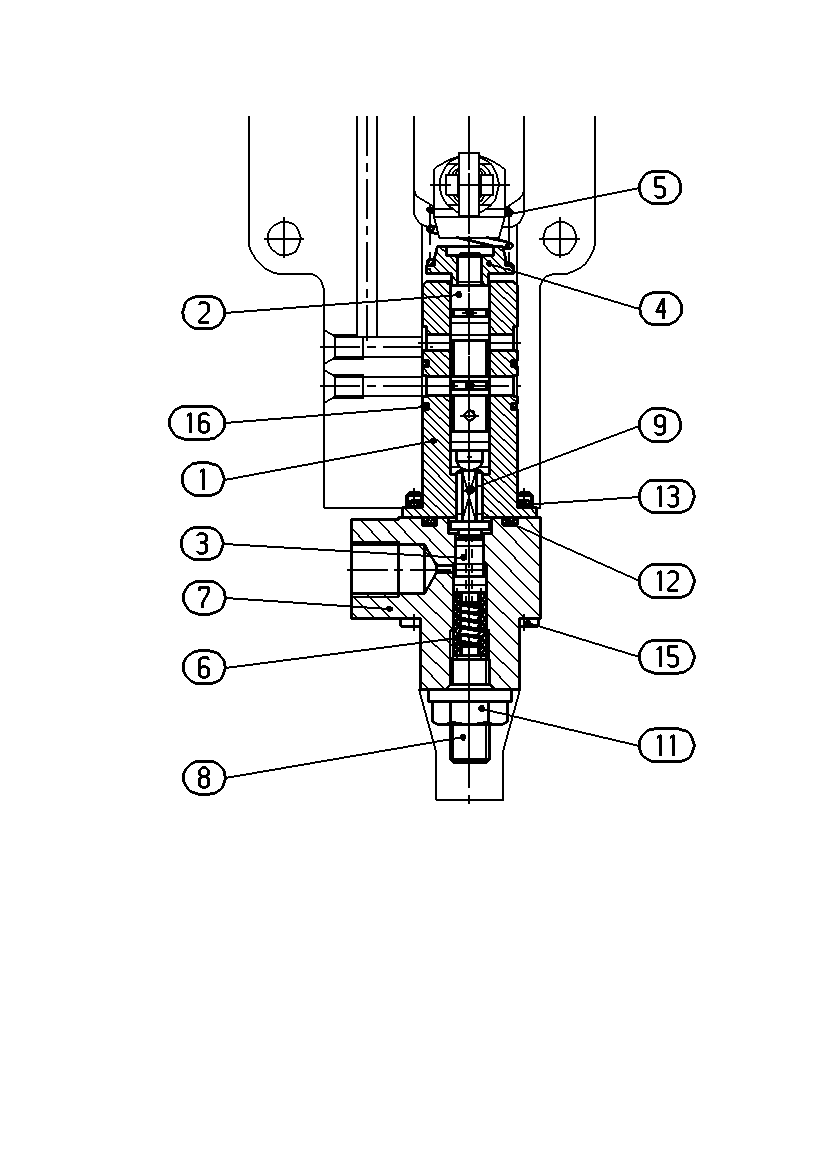

CONTROL ELEMENTR909438684
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902103938 | CONTROL SLEEVE | 1 | ||
| R902104977 | CONTROL PISTON | 1 | ||
| 3 | R909439364 | DIFFERENTIAL PISTON | 1 | |
| R909443280 | SPRING DISK | 1 | ||
| 5 | R909439228 | COMPRESSION SPRING | 1 | |
| R909439229 | COMPRESSION SPRING | 1 | ||
| 7 | R909652141 | CONNECTING PIECE | 1 | |
| R902032208 | SETSCREW | 1 | ||
| 9 | R909439363 | CONTROL PISTON | 1 | |
| 11 | R909152426 | SEALING NUTD | 1 | |
| R909083758 | O-RINGD | 1 | ||
| R909083763 | O-RINGD | 1 | ||
| R909084358 | SOCKET HEAD CAP SCREW | 4 | ||
| R902601678 | STEEL SEALING RING | 2 |
