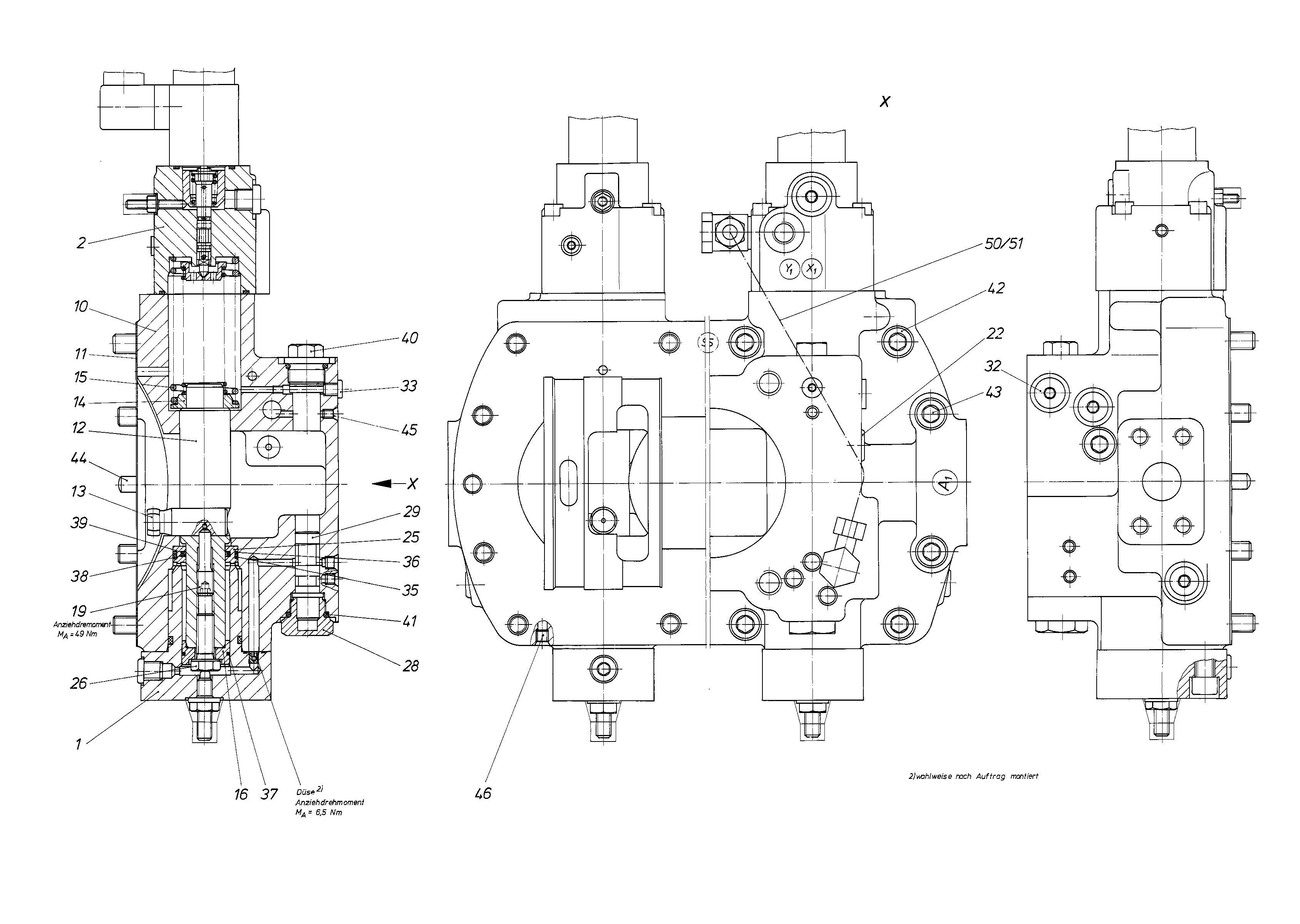

Assembly
CONTROLR909438745
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909447495 | COVER Assembly parts list →L | 2 | ||
| R909438744 | CONTROL UNIT Assembly parts list →L | 2 | ||
| R909435780 | CONTROL HOUSING | 1 | ||
| R909650531 | SEALD | 1 | ||
| R909426600 | POSITIONING PISTON | 2 | ||
| R909425459 | POSITIONING STUD | 2 | ||
| R909425732 | SPRING DISK | 2 | ||
| R909425746 | COMPRESSION SPRING | 2 | ||
| R909426605 | PISTON | 2 | ||
| R909409591 | SETSCREW | 2 | ||
| R909425894 | SCREW PLUG | 2 | ||
| R909426606 | SEAL RING | 2 | ||
| R909083707 | HEXAGON SCREW | 2 | ||
| R909651394 | SCREW PLUG | 2 | ||
| R909439992 | PLUG | 2 | ||
| R909151979 | SCREW PLUGD | 6 | ||
| R909154024 | SCREW PLUGD | 2 | ||
| R909086347 | O-RINGD | 2 | ||
| R909157667 | BACKUP RINGD | 2 | ||
| R902602841 | STEEL SEALING RINGD | 2 | ||
| R909157666 | ROD SEALD | 2 | ||
| R909087513 | O-RINGD | 2 | ||
| R909087198 | SCREW PLUG | 2 | ||
| R909086517 | O-RINGD | 4 | ||
| R909083093 | SOCKET HEAD CAP SCREW | 8 | ||
| R909083100 | SOCKET HEAD CAP SCREW | 4 | ||
| R913007909 | STRAIGHT PIN | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 5 | ||
| R909433157 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| R909433158 | HYDRAULIC LINE Assembly parts list →L | 1 |
