Assembly

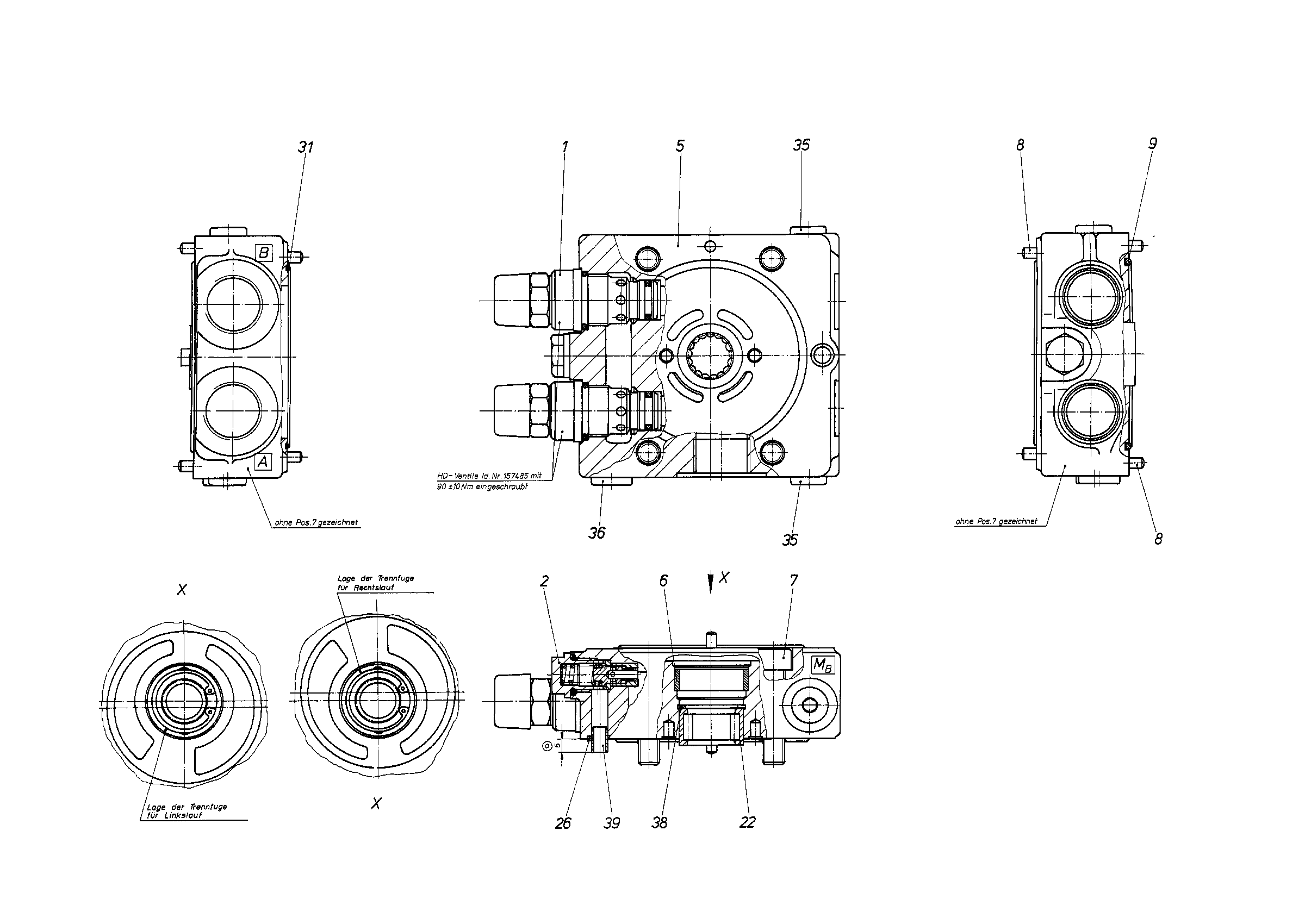

CONNECTION PLATER909438767
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902603802 | DELIVERY-VALVE ASSEMBLY Assembly parts list →L | 2 | |
| 2 | R909433665 | PRESSURE RELIEF VALVE Assembly parts list →L | 1 | |
| 5 | R909439847 | CONNECTION PLATE | 1 | |
| 6 | R909432238 | BUSHING | 1 | |
| R909083066 | SOCKET HEAD CAP SCREW | 4 | ||
| R909157936 | STRAIGHT PIN | 4 | ||
| 9 | R909085360 | O-RINGD | 1 | |
| 22 | R909156987 | CYL. ROLLER BEARING | 1 | |
| 26 | R909157293 | QUAD RINGD | 2 | |
| R909086720 | O-RINGD | 1 | ||
| R909151692 | SCREW PLUGD | 2 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909083391 | RETAINING RING | 1 | ||
| R909156820 | SLOTTED SPRING PIN | 1 |
