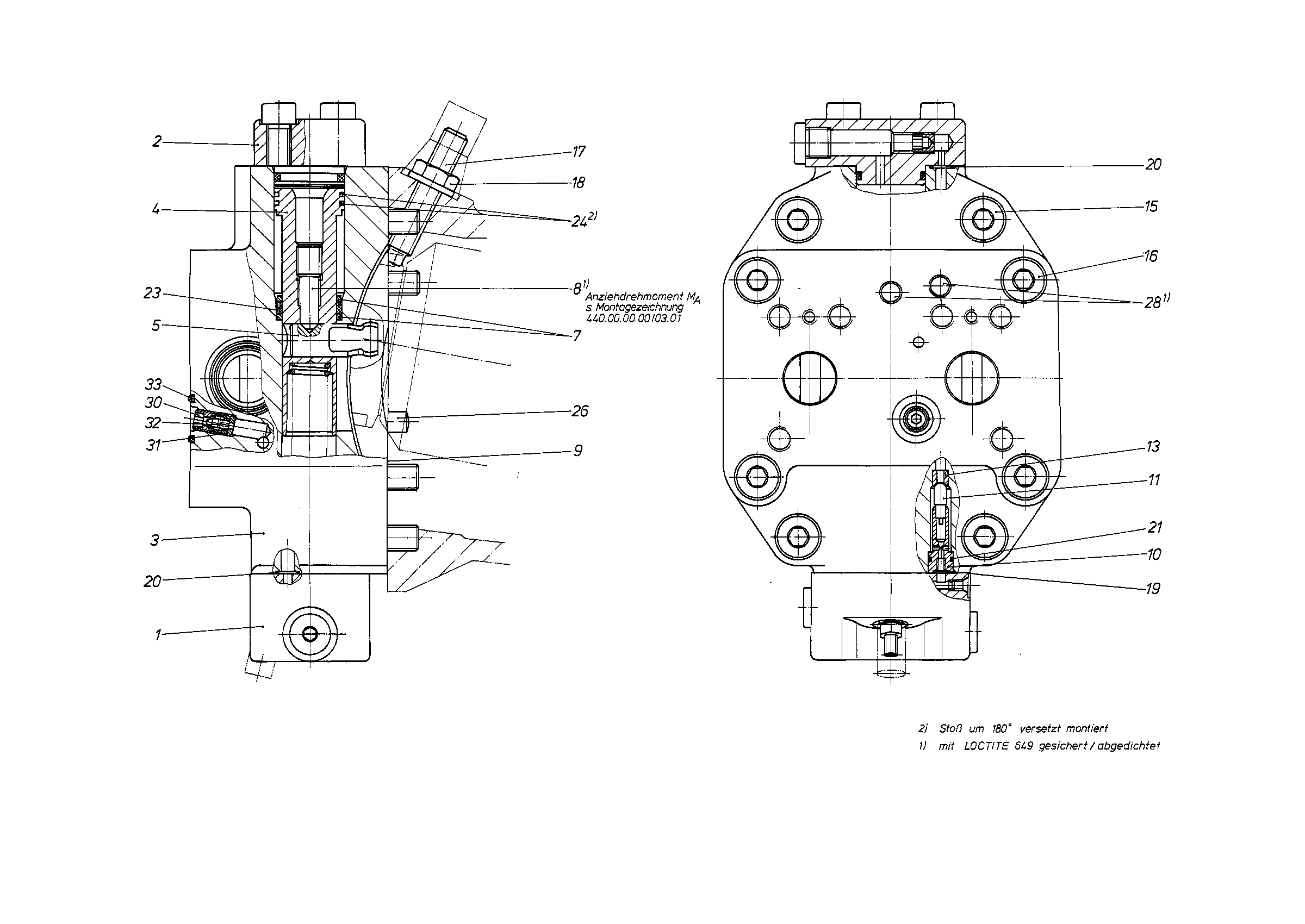

Assembly
CONTROLR909438802
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909438803 | CONTROL PART Assembly parts list →L | 1 | ||
| 2 | R909438804 | COVER Assembly parts list →L | 1 | |
| 3 | R909439714 | COVER PLATE | 1 | |
| R909422939 | POSITIONING PISTON | 1 | ||
| 5 | R909422940 | POSITIONING STUD | 1 | |
| R909422941 | BACKUP RING | 2 | ||
| 8 | R909445015 | SETSCREW | 1 | |
| 9 | R902011852 | SEALD | 1 | |
| R909422896 | VALVE GUIDE | 2 | ||
| 11 | R909426662 | BOLT | 2 | |
| R902209845 | BUSHING | 2 | ||
| R909083068 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083073 | SOCKET HEAD CAP SCREW | 4 | ||
| R909447003 | SETSCREW Assembly parts list →L | 1 | ||
| R909152426 | SEALING NUTD | 1 | ||
| R909083723 | O-RINGD | 2 | ||
| R909086498 | O-RINGD | 3 | ||
| 21 | R909086380 | O-RINGD | 2 | |
| 23 | R909156715 | ROD SEALD | 1 | |
| 24 | R902602840 | STEEL SEALING RINGD | 2 | |
| R913009667 | STRAIGHT PIN | 2 | ||
| 28 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 | |
| 30 | R909400263 | THROTTLE SCREW | 1 | |
| 31 | R909400264 | THROTTLE SCREW | 1 | |
| 32 | R909439287 | VALVE PIN | 1 | |
| R909083757 | O-RINGD | 1 | ||
| 34 | R909153815 | SCREW PLUGD | 2 |
