Assembly

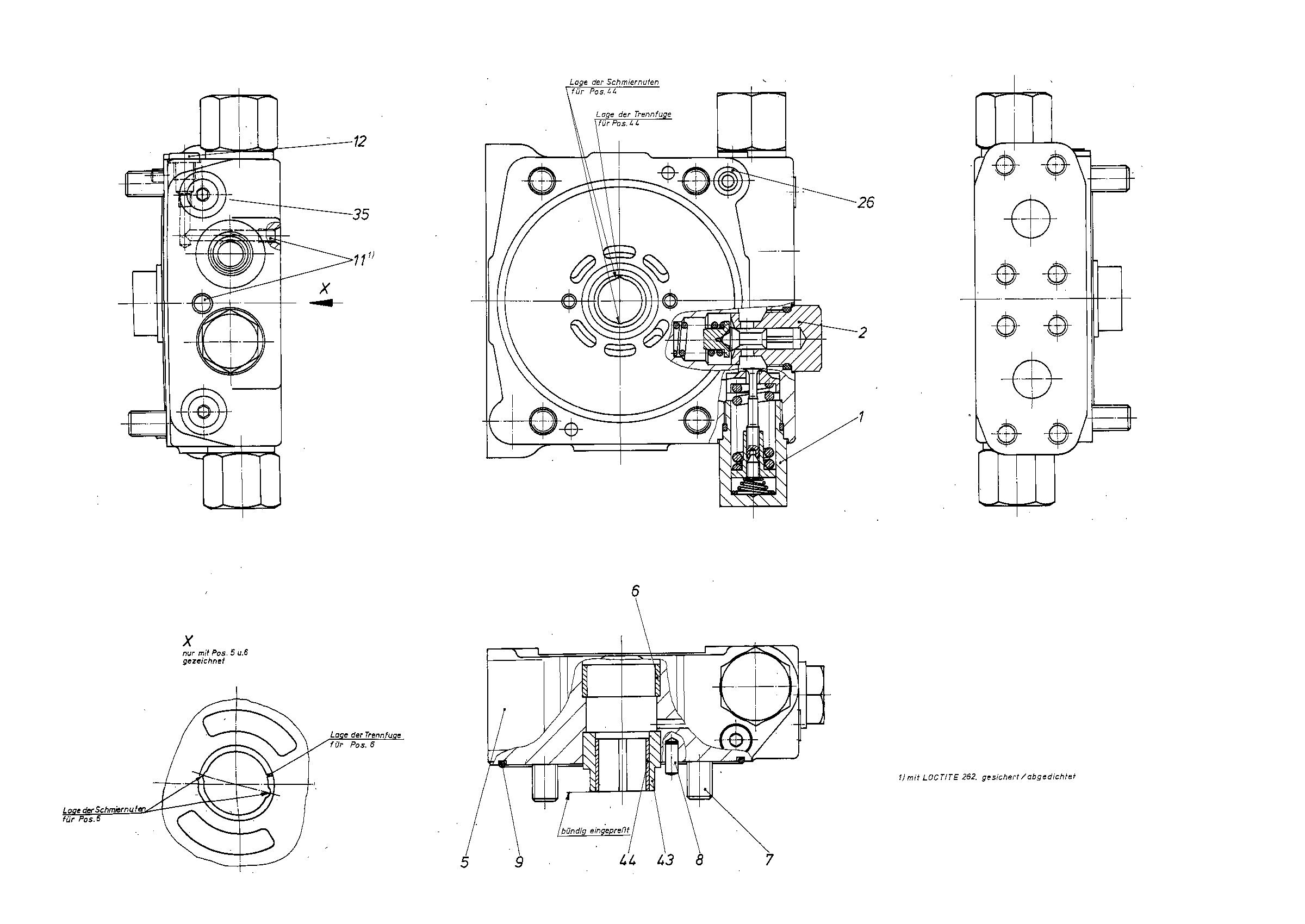

CONNECTION PLATER909438852
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902016398 | PRESSURE RELIEF VALVE Assembly parts list →L | 2 | |
| 2 | R902051329 | PRESSURE RELIEF VALVE Assembly parts list →L | 1 | |
| 5 | R909440222 | CONNECTION PLATE | 1 | |
| 6 | R902260545 | BUSHING | 1 | |
| 7 | R909830402 | SOCKET HEAD CAP SCREW | 4 | |
| 8 | R900748992 | STRAIGHT PIN | 2 | |
| 9 | R909086547 | O-RINGD | 1 | |
| 11 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| R909153364 | SCREW PLUGD | 1 | ||
| 26 | R909085709 | O-RINGD | 1 | |
| 35 | R909154478 | SCREW PLUGD | 2 | |
| 43 | R909651184 | BUSHING | 1 | |
| 44 | R902260546 | BUSHING | 1 |
