Assembly

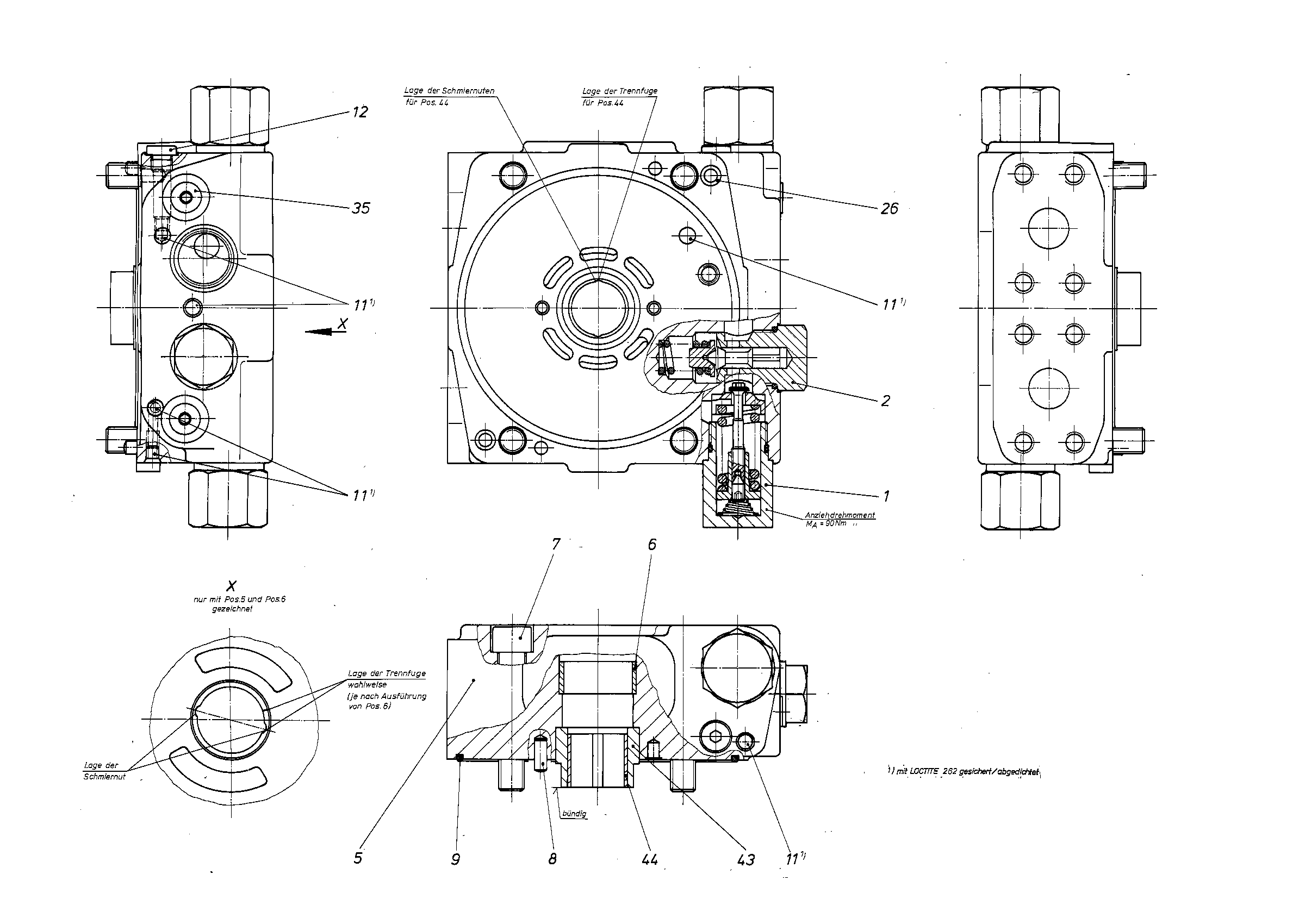

CONNECTION PLATER909441076
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902016398 | PRESSURE RELIEF VALVE Assembly parts list →L | 2 | |
| 2 | R902051329 | PRESSURE RELIEF VALVE Assembly parts list →L | 1 | |
| 5 | R909440590 | CONNECTION PLATE | 1 | |
| 6 | R902260545 | BUSHING | 1 | |
| R909157524 | SOCKET HEAD CAP SCREW | 4 | ||
| R900748992 | STRAIGHT PIN | 2 | ||
| R909085364 | O-RINGD | 1 | ||
| 11 | R909831318 | DOUBLE BREAK-OFF PLUG | 3 | |
| R909153364 | SCREW PLUGD | 1 | ||
| R909085709 | O-RINGD | 2 | ||
| 35 | R909154478 | SCREW PLUGD | 2 | |
| R909425694 | BUSHING | 1 | ||
| R902260547 | BUSHING | 1 |
