Assembly

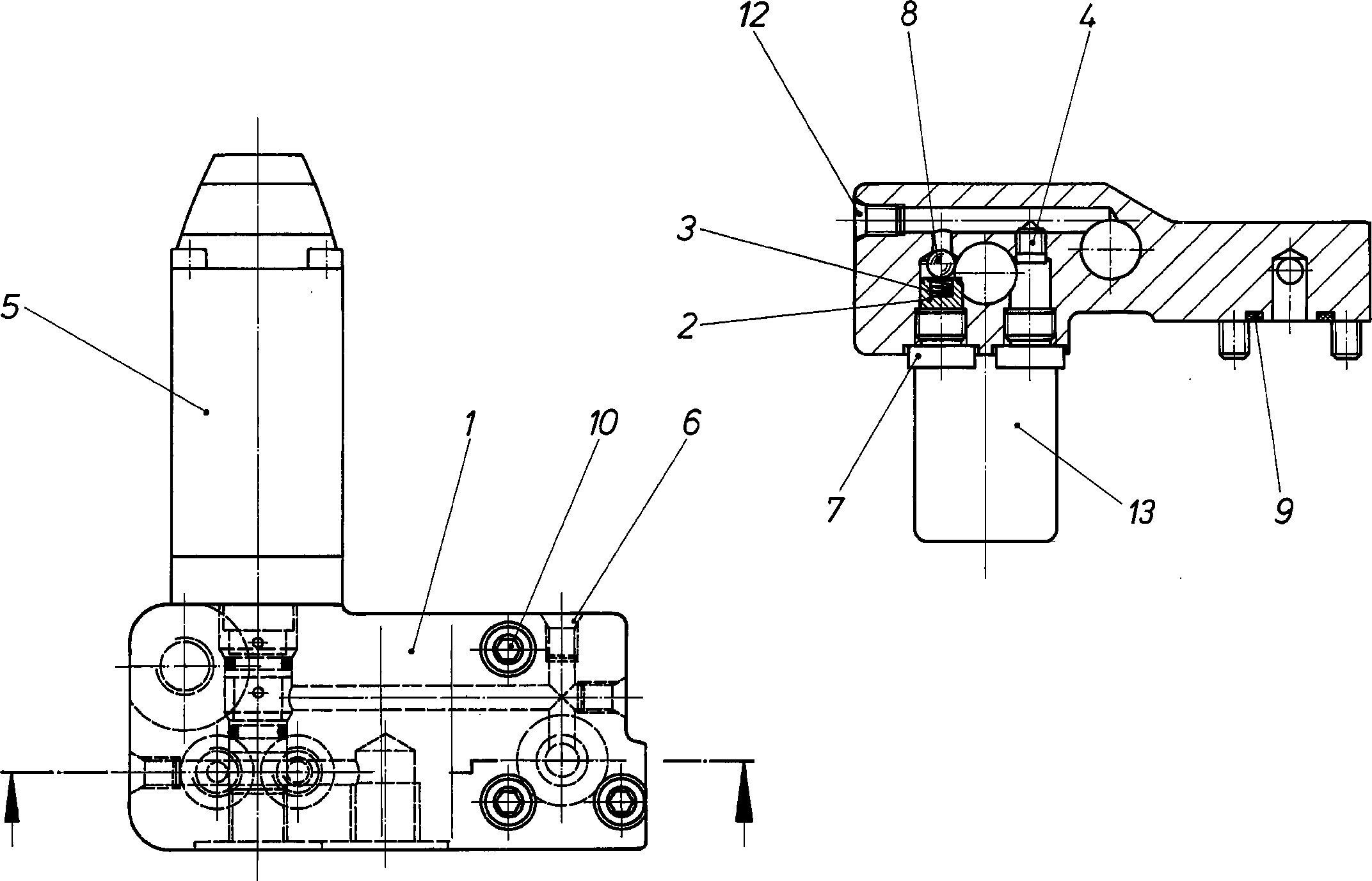

UNLOADING VALVER909441256
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909445190 | VALVE PLATE | 1 | ||
| R909431425 | SPRING BUSH | 1 | ||
| R909431423 | COMPRESSION SPRING | 1 | ||
| R902190717 | THROTTLE VALVE Assembly parts list →L | 1 | ||
| R902602108 | DIRECTIONAL-CONTROL VALVE | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909156649 | SCREW PLUGD | 2 | ||
| R909083260 | BALL | 1 | ||
| R909083752 | O-RINGD | 1 | ||
| R909083021 | SOCKET HEAD CAP SCREW | 3 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R913022796 | PLUG-IN CONNECTOR | 1 |
