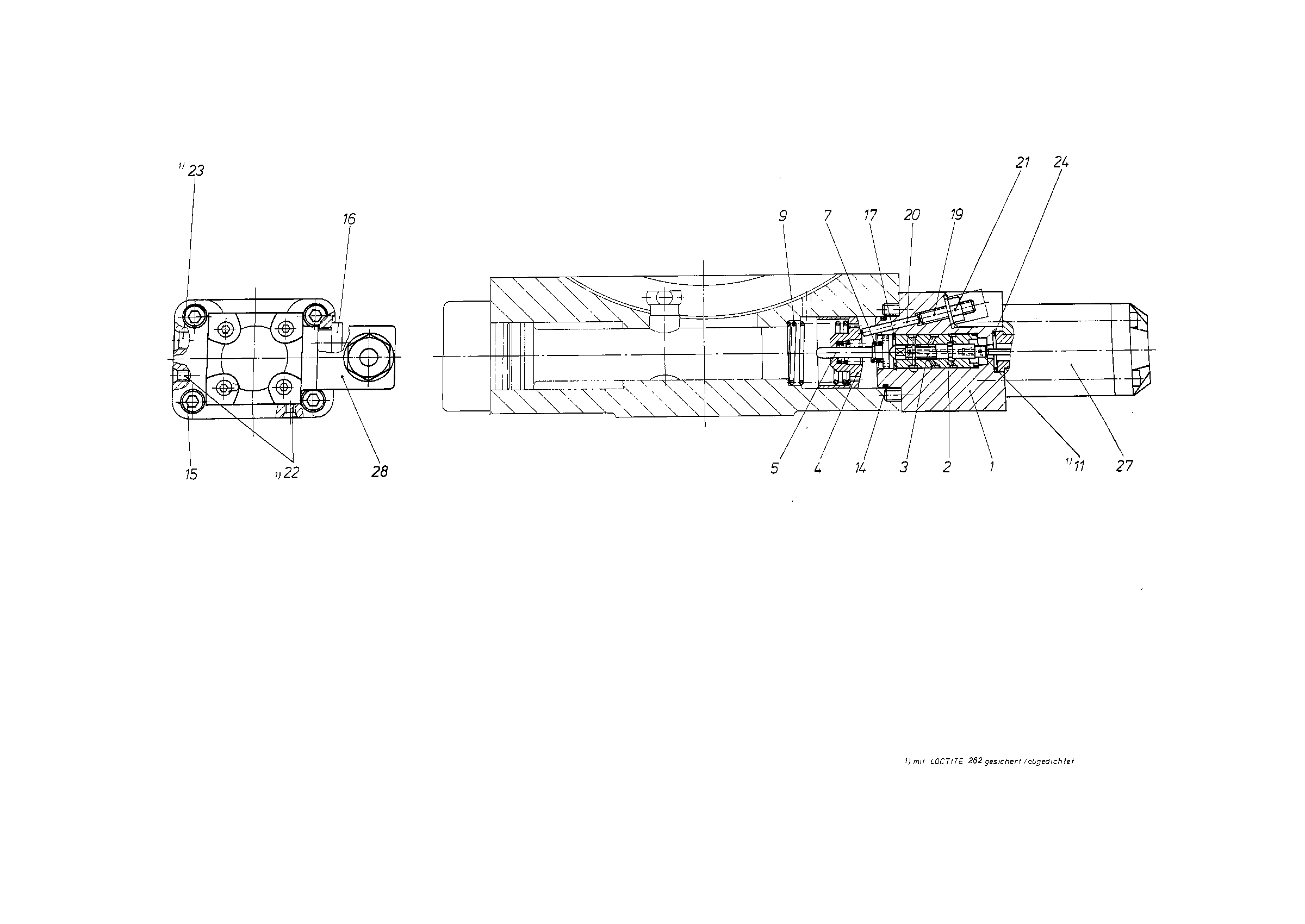

Assembly
CONTROL PARTR909441260
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909440933 | CONTROL HOUSING | 1 | ||
| R909425874 | CONTROL SLEEVE | 1 | ||
| R909425873 | CONTROL PISTON | 1 | ||
| R909651119 | ADJUSTING BUSHING | 1 | ||
| R909921339 | SPRING DISK | 1 | ||
| R909430757 | COMPRESSION SPRING | 1 | ||
| R909651117 | COMPRESSION SPRING | 1 | ||
| R909413339 | STOP SCREW | 1 | ||
| R909085545 | O-RINGD | 1 | ||
| R909083044 | SOCKET HEAD CAP SCREW | 4 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909083381 | RETAINING RING | 1 | ||
| R909152427 | SETSCREW | 1 | ||
| R909087756 | STRAIGHT PIN | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909083734 | O-RINGD | 1 | ||
| R909428264 | SWITCHING SOLENOID Assembly parts list →L | 1 | ||
| R913022795 | PLUG-IN CONNECTOR | 1 |
