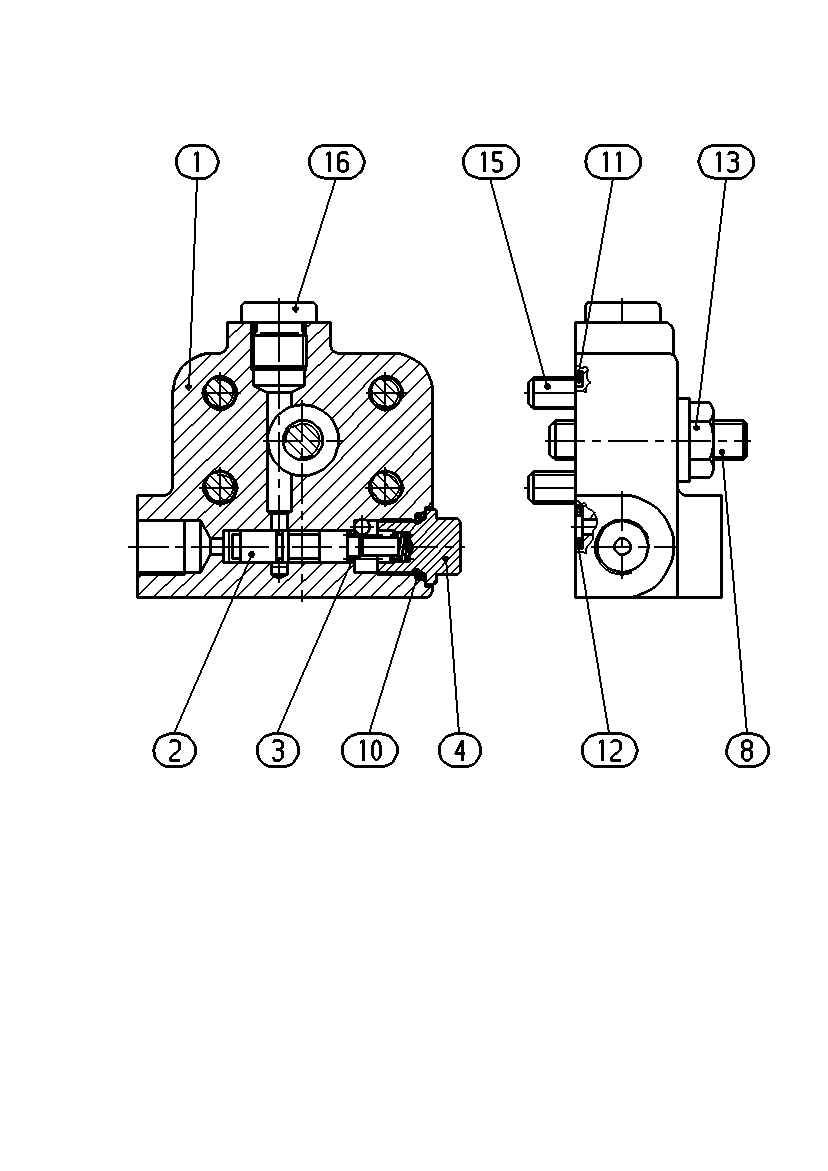

Assembly
COVERR909441275
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909440902 | COVER | 1 | |
| R909439056 | CONTROL PISTON | 1 | ||
| R909439082 | COMPRESSION SPRING | 1 | ||
| R909439057 | SCREW PLUG | 1 | ||
| R909447150 | SETSCREW Assembly parts list →L | 1 | ||
| R909086729 | O-RINGD | 1 | ||
| 11 | R909086375 | O-RINGD | 1 | |
| R909157512 | O-RINGD | 1 | ||
| R909152426 | SEALING NUTD | 1 | ||
| R909083090 | SOCKET HEAD CAP SCREW | 4 | ||
| 16 | R909151979 | SCREW PLUGD | 1 |
