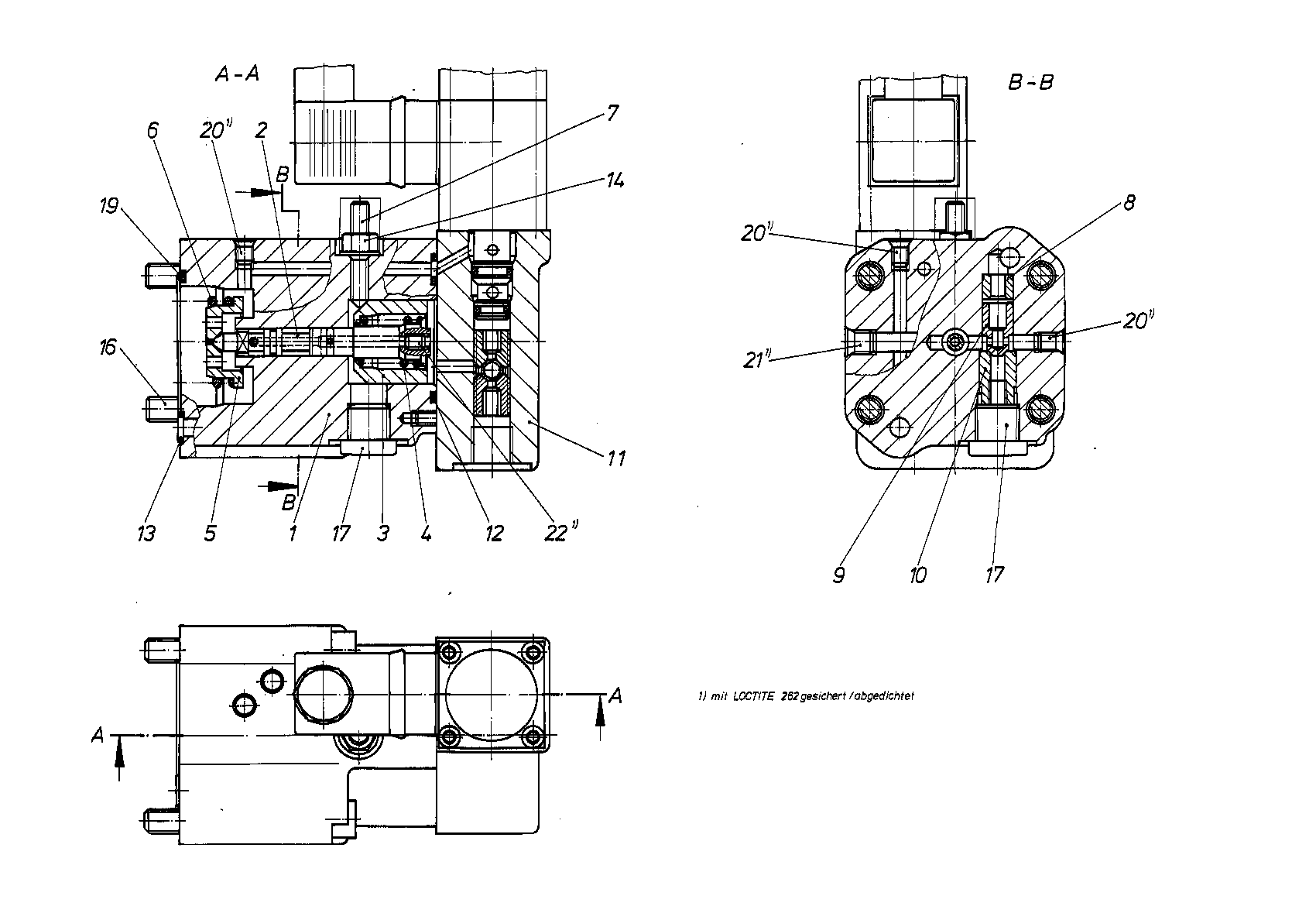

Assembly
CONTROL UNITR909441284
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909440903 | HOUSING | 1 | ||
| R909650013 | CONTROL PISTON | 1 | ||
| R909449344 | SPRING BUSH | 1 | ||
| R909650014 | COMPRESSION SPRING | 1 | ||
| R902094546 | SPRING DISK | 1 | ||
| R909425803 | COMPRESSION SPRING | 1 | ||
| R909425219 | SETSCREW | 1 | ||
| R909425801 | BUSHING | 1 | ||
| R909651010 | VALVE SPOOL | 1 | ||
| R909425800 | BUSHING | 1 | ||
| R909441283 | CONNECTING BLOCK Assembly parts list →L | 1 | ||
| R909083769 | O-RINGD | 1 | ||
| R909086498 | O-RINGD | 2 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909083046 | SOCKET HEAD CAP SCREW | 4 | ||
| R909151979 | SCREW PLUGD | 2 | ||
| R909086336 | O-RINGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909083489 | SETSCREW | 1 |
