Assembly

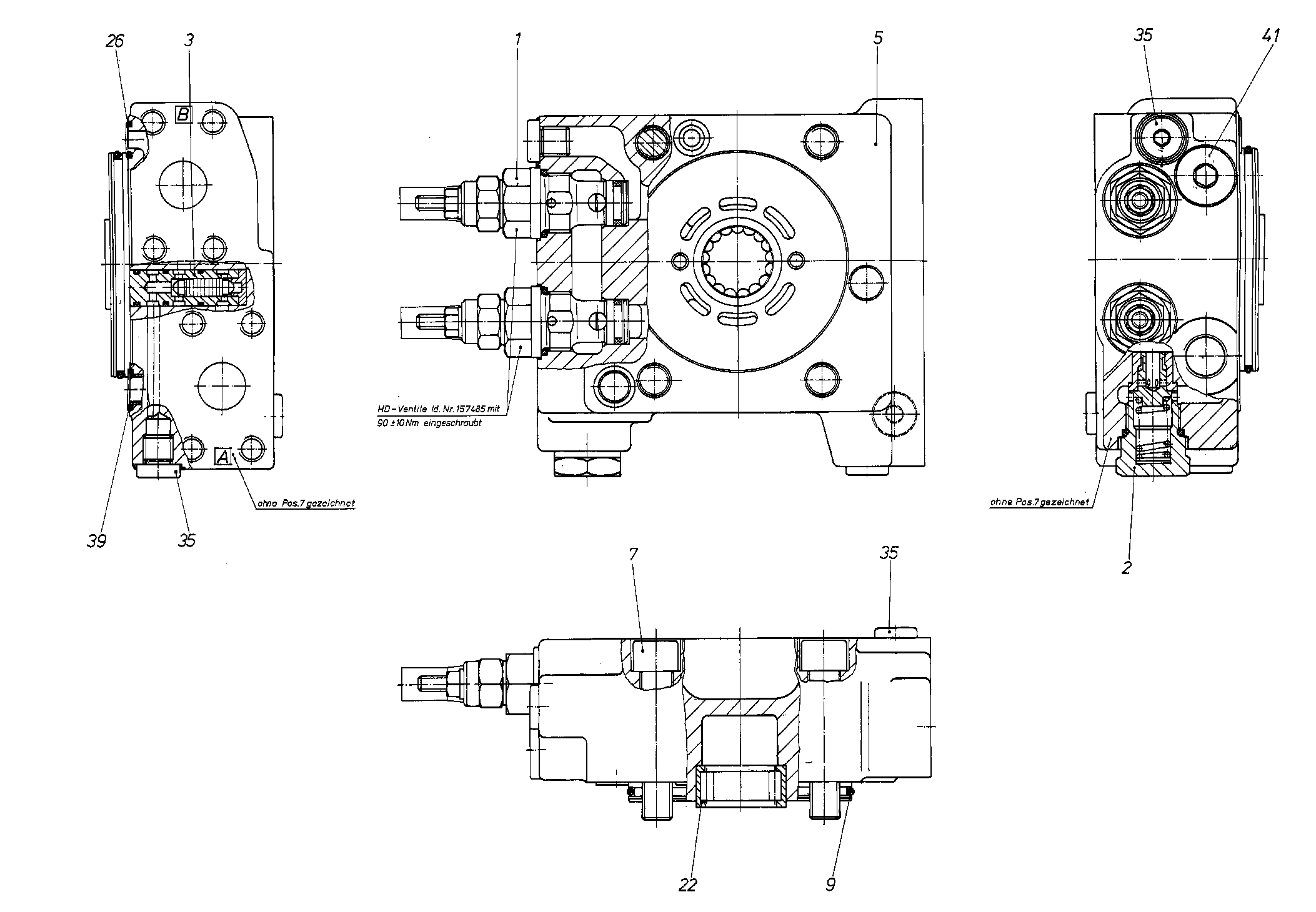

CONNECTION PLATER909441387
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902603802 | DELIVERY-VALVE ASSEMBLY Assembly parts list →L | 2 | ||
| R909433667 | PRESSURE RELIEF VALVE Assembly parts list →L | 1 | ||
| R902017415 | SHUTTLE VALVE Assembly parts list →L | 1 | ||
| R909449033 | CONNECTION PLATE | 1 | ||
| R909153287 | SOCKET HEAD CAP SCREW | 4 | ||
| R909085360 | O-RINGD | 1 | ||
| R909153245 | CYL. ROLLER BEARING | 1 | ||
| R909086332 | O-RINGD | 1 | ||
| R909151692 | SCREW PLUGD | 2 | ||
| R909086333 | O-RINGD | 1 | ||
| R909153815 | SCREW PLUGD | 1 |
