Assembly

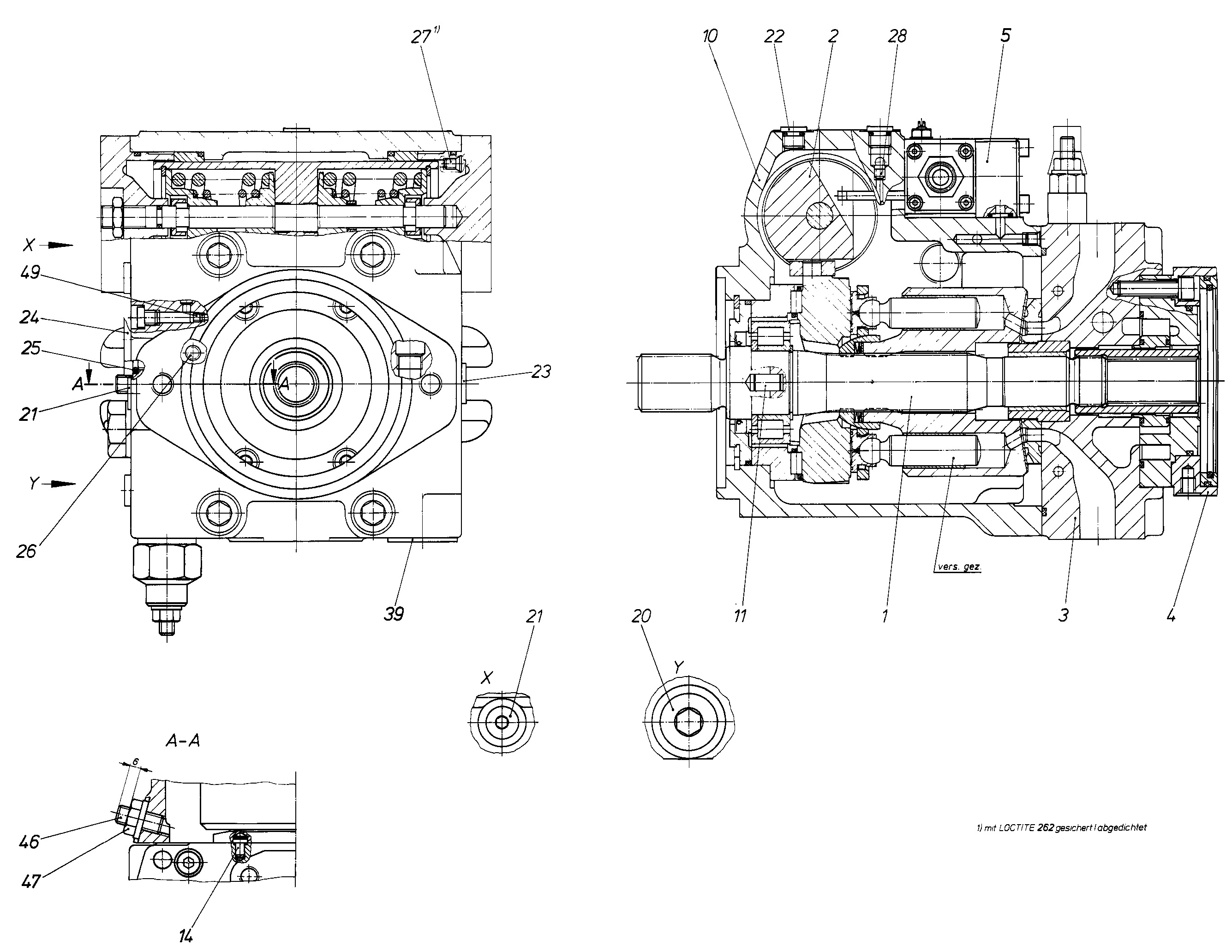

AXIAL-PISTON PUMPR909441432
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909441174 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909437353 | CONTROL Assembly parts list →L | 1 | ||
| R909447068 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909447317 | BELL HOUSING Assembly parts list →L | 1 | ||
| R909438082 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R909440945 | HOUSING | 1 | ||
| R909430641 | POITIONING PIN | 1 | ||
| R909405732 | POITIONING PIN | 1 | ||
| R909154480 | SCREW PLUGD | 1 | ||
| R909153371 | SCREW PLUGD | 2 | ||
| R909154478 | SCREW PLUGD | 3 | ||
| R909083228 | SCREW PLUG | 1 | ||
| R909086731 | O-RINGD | 1 | ||
| R909153572 | SCREW PLUG | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| 33 | R909153815 | SCREW PLUGD | 3 | |
| R909153378 | SCREW PLUGD | 1 | ||
| R909154981 | SETSCREW | 1 | ||
| R909153271 | SEALING NUTD | 1 | ||
| R909156495 | NOZZLE | 1 |
