Assembly

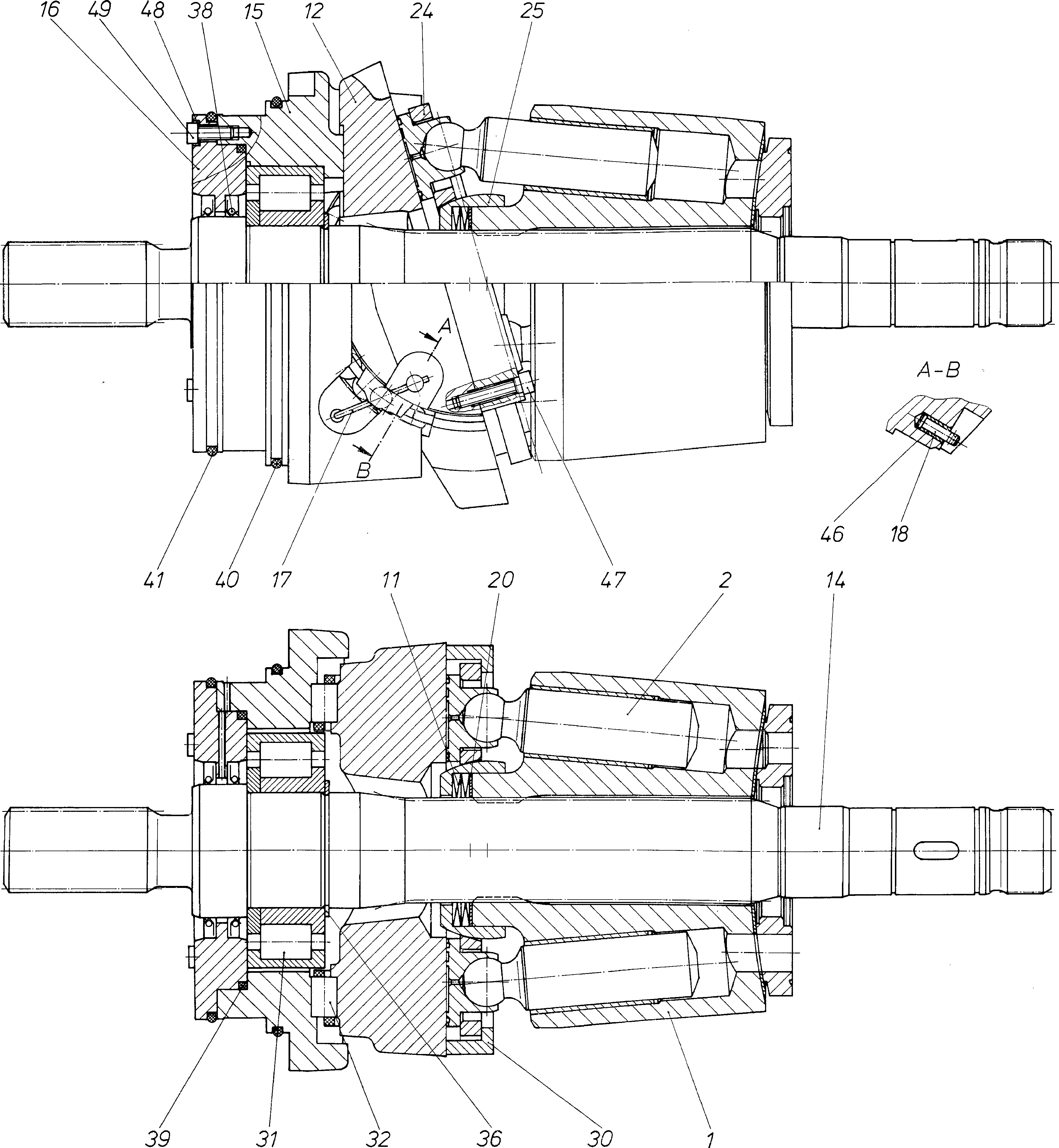

ROTARY GROUPR909441450
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902005861 | CYLINDER Assembly parts list →L | 1 | ||
| R909444896 | PISTON PAD | 9 | ||
| R909431528 | CUP-SPRING STACK | 1 | ||
| R909443288 | CRADLE | 1 | ||
| R909432908 | DRIVE SHAFT | 1 | ||
| R909440161 | BEARING FLANGE | 1 | ||
| R909432909 | LOCKING RING | 1 | ||
| R909403549 | WIRE | 2 | ||
| R909076231 | PIVOT PIN | 2 | ||
| R909431548 | SHIM RING | 1 | ||
| R909431549 | SHIM RING | 1 | ||
| R909431550 | SHIM RING | 1 | ||
| R909431551 | SHIM RING | 1 | ||
| R902205487 | RETAINING PLATE | 1 | ||
| R909431243 | RETAINING BALL | 1 | ||
| R909431293 | RETAINING SEGMENT | 2 | ||
| R909157194 | CYL. ROLLER BEARING | 1 | ||
| R909830694 | CAGE PAIR | 1 | ||
| R909150122 | RETAINING RING | 1 | ||
| R909831662 | ROTARY SHAFT LIP SEALD | 2 | ||
| R909152647 | O-RINGD | 1 | ||
| R909083833 | O-RINGD | 1 | ||
| R909087850 | O-RINGD | 1 | ||
| R909153928 | SLOTTED SPRING PIN | 2 | ||
| R909831331 | SOCKET HEAD CAP SCREW | 4 | ||
| R909152271 | SEAL RINGD | 4 | ||
| R909083187 | SOCKET HEAD CAP SCREW | 4 |
