Assembly

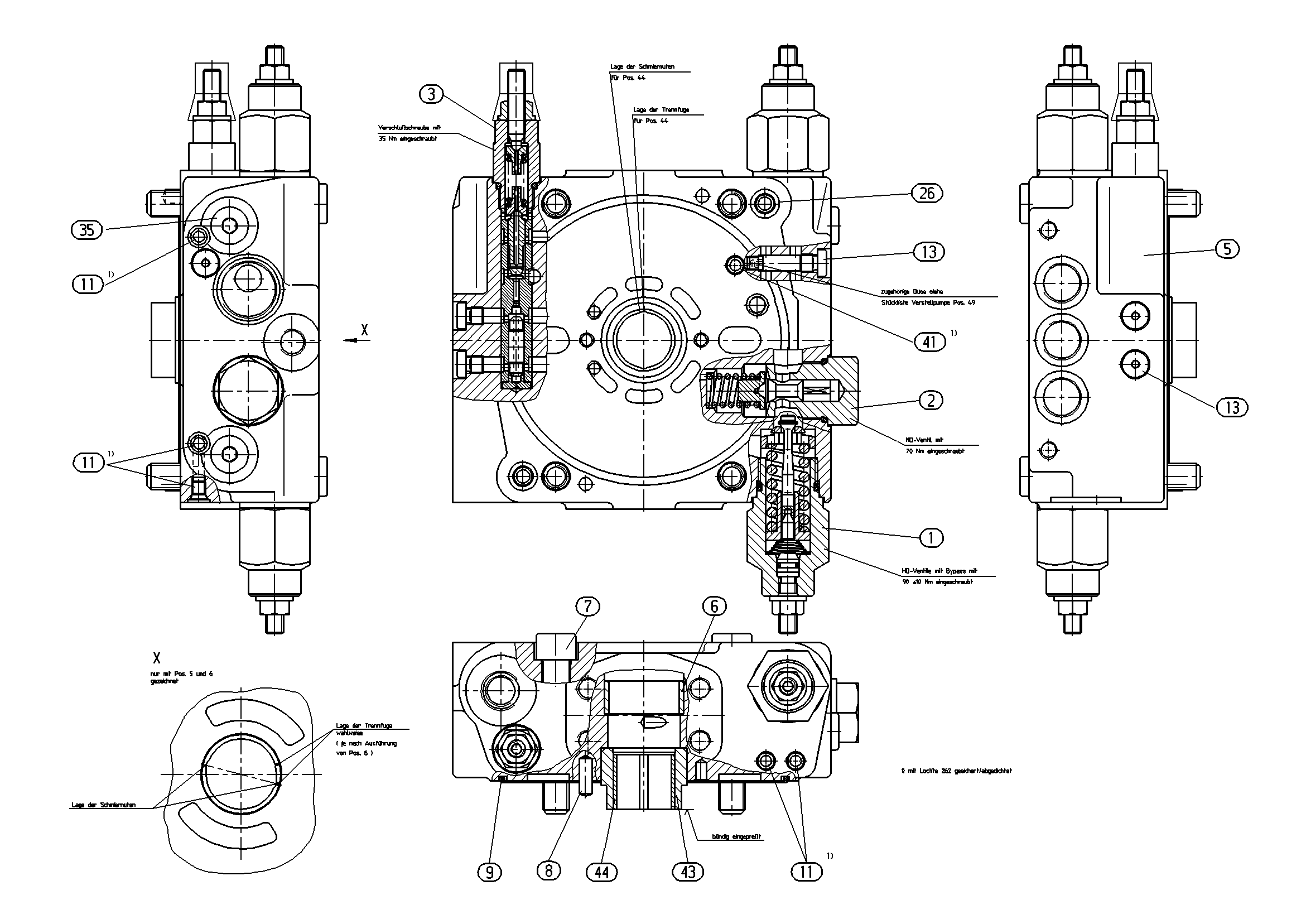

CONNECTION PLATER909441502
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902016388 | PRESSURE RELIEF VALVE Assembly parts list →L | 2 | ||
| R902051329 | PRESSURE RELIEF VALVE Assembly parts list →L | 1 | ||
| R909433110 | PRESSURE CUT-OFF VALVE Assembly parts list →L | 1 | ||
| R909445357 | CONNECTION PLATE | 1 | ||
| R909449135 | BUSHING | 1 | ||
| R909153288 | SOCKET HEAD CAP SCREW | 4 | ||
| R909084173 | STRAIGHT PIN | 2 | ||
| R909830424 | O-RINGD | 1 | ||
| — | DOUBLE BREAK-OFF PLUG | 3 | ||
| R909154024 | SCREW PLUGD | 3 | ||
| R909085709 | O-RINGD | 2 | ||
| R909151692 | SCREW PLUGD | 2 | ||
| R909415314 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909439249 | BUSHING | 1 | ||
| R909426789 | BUSHING | 1 |
