Assembly

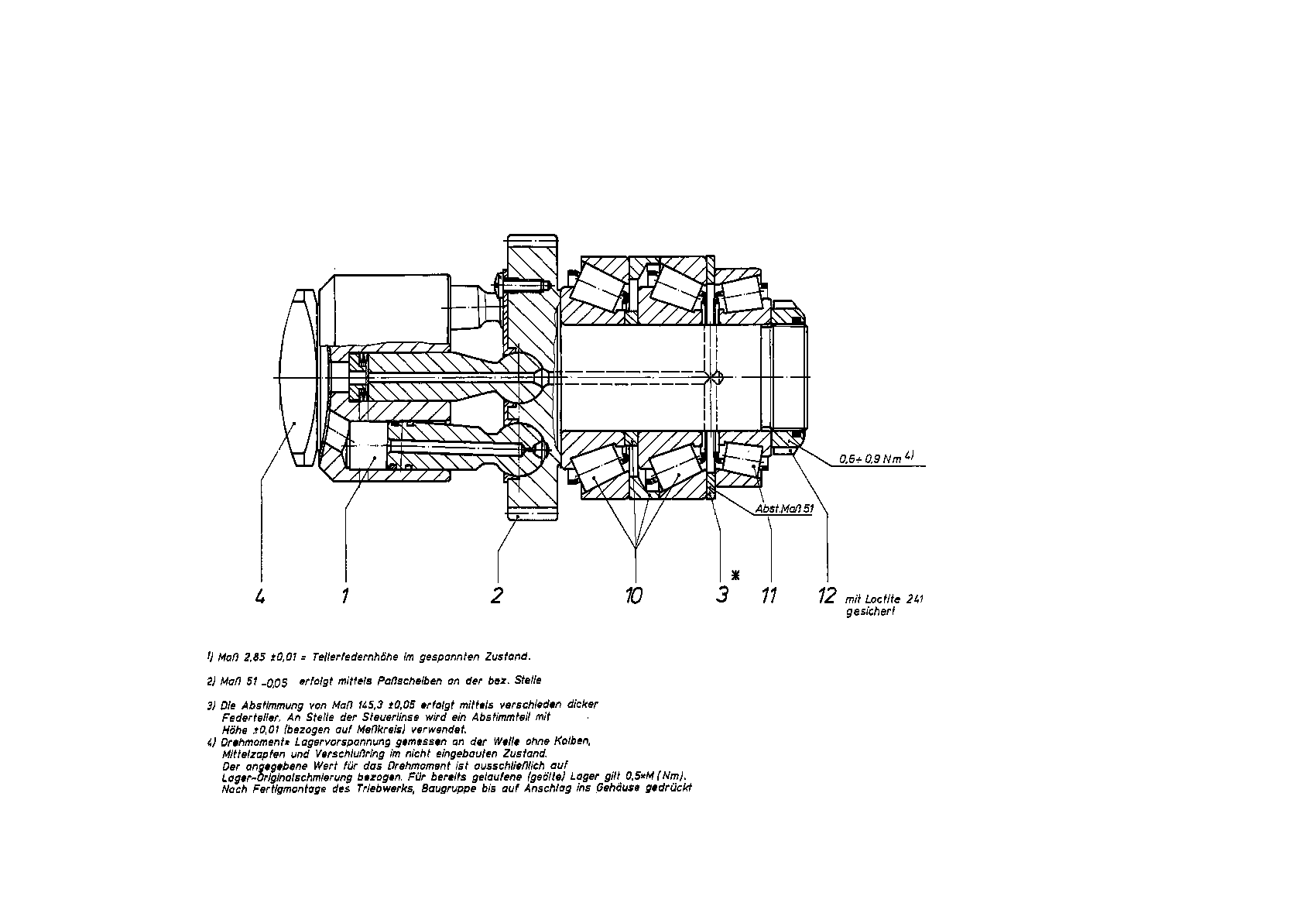

ROTARY GROUPR909441545
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909437501 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909443224 | DRIVE SHAFT | 1 | ||
| R909651567 | SHIM RING | 1 | ||
| R909651568 | SHIM RING | 1 | ||
| R909651569 | SHIM RING | 1 | ||
| R909651570 | SHIM RING | 1 | ||
| R909650448 | CONTROL LENS, LEFT-HAND ROTATION | 1 | ||
| 10 | R909156197 | TAPERED-ROLLER BEARING UNIT | 1 | |
| 11 | R909151098 | TAPERED-ROLLER BEARING | 1 | |
| 12 | R913037928 | SLOTTED ROUND NUT | 1 |
