Assembly

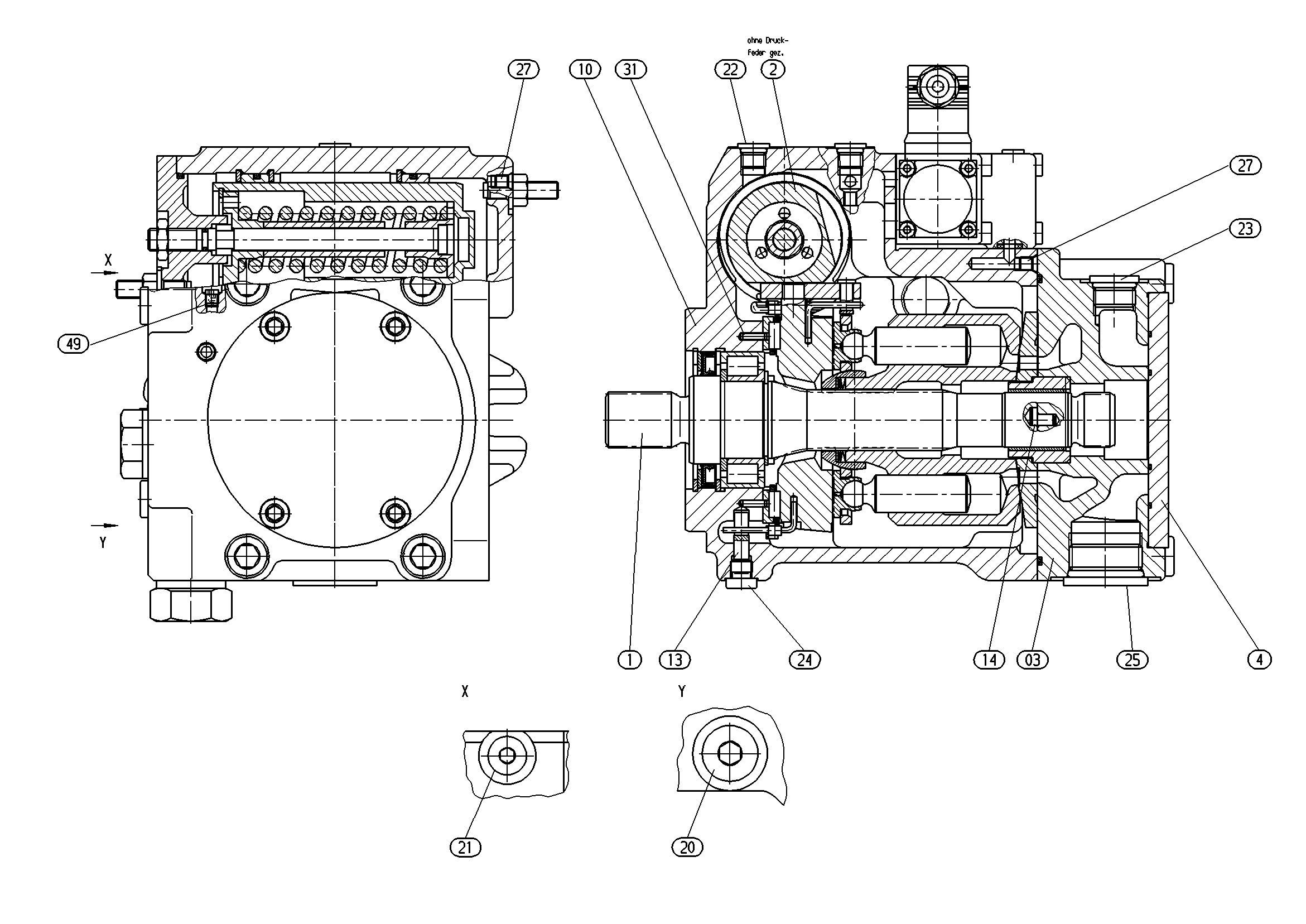

AXIAL-PISTON PUMPR909441580
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909441572 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909441220 | CONTROL Assembly parts list →L | 1 | ||
| 3 | R909446987 | CONNECTION PLATE Assembly parts list →L | 1 | |
| R909441940 | PUMP COVER Assembly parts list →L | 1 | ||
| 5 | R909600080 | DIRECTIONAL-CONTROL VALVE Assembly parts list →L | 1 | |
| R909651364 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 1 | ||
| R909418748 | ECCENTRIC BOLT | 1 | ||
| R909153339 | SCREW PLUGD | 1 | ||
| R909153371 | SCREW PLUGD | 1 | ||
| R909154478 | SCREW PLUGD | 3 | ||
| R909153338 | SCREW PLUGD | 1 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909153378 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909156495 | NOZZLE | 1 |
