Assembly

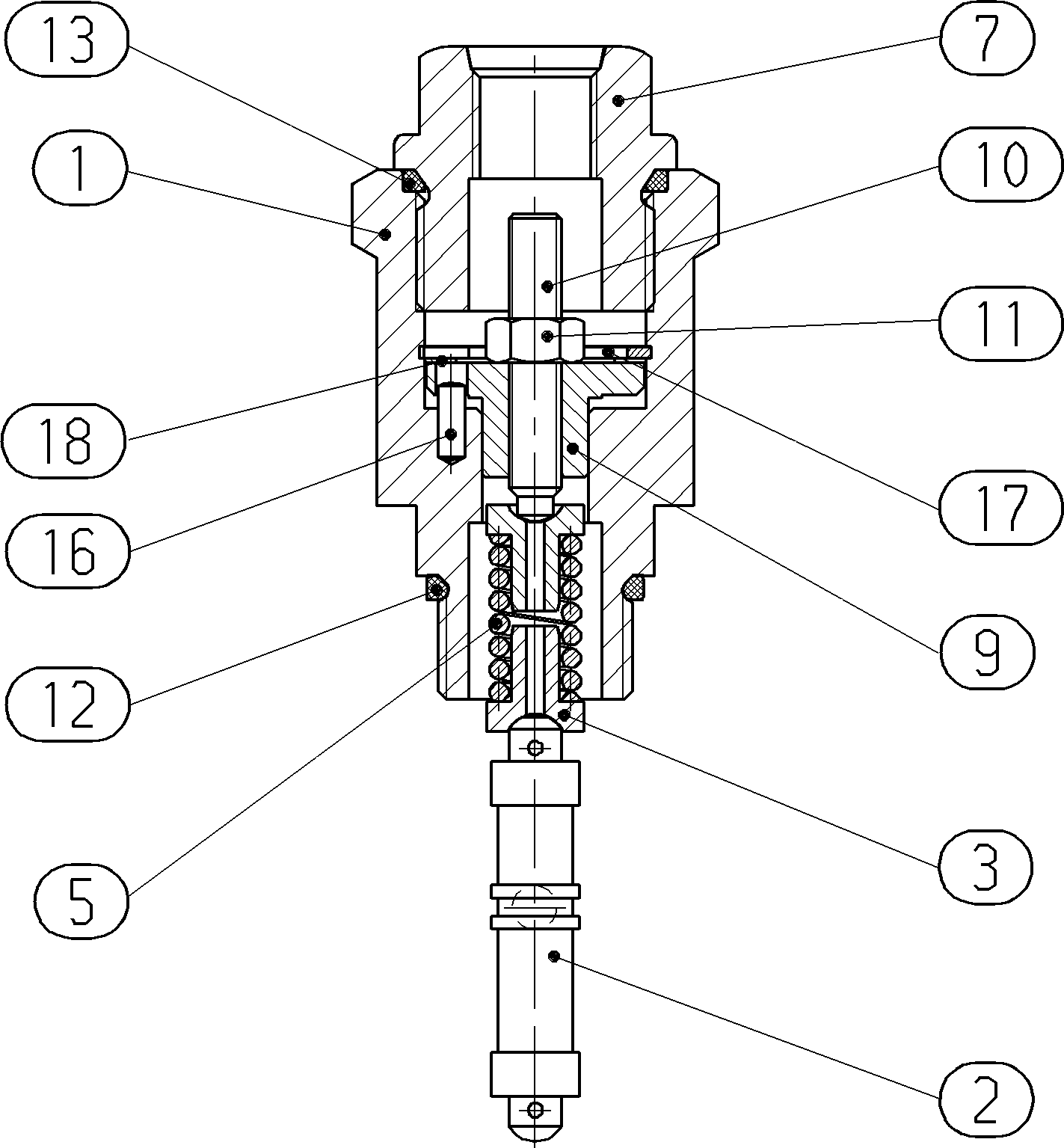

CONTROL ELEMENTR909441716
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909435640 | THREADED FASTENER | 1 | ||
| R909432439 | CONTROL PISTON | 1 | ||
| R909443426 | SPRING BOLT | 2 | ||
| R909426270 | COMPRESSION SPRING | 1 | ||
| R909435953 | CONNECTING PIECE | 1 | ||
| 8 | R909435641 | SPACER BUSHING | 1 | |
| R909443524 | POSITIONING PISTON | 1 | ||
| R909443525 | SETSCREW | 1 | ||
| R909083611 | HEXAGON NUT | 1 | ||
| R909083758 | O-RINGD | 1 | ||
| R909083761 | O-RINGD | 1 | ||
| R909085625 | HALF LENGTH TPR GRVD DOWEL PIN | 1 | ||
| R909083387 | RETAINING RING | 1 | ||
| R909154322 | SHIM RING | 1 | ||
| R909154323 | SHIM RING | 1 | ||
| R909156050 | SHIM RING | 3 |
