Assembly

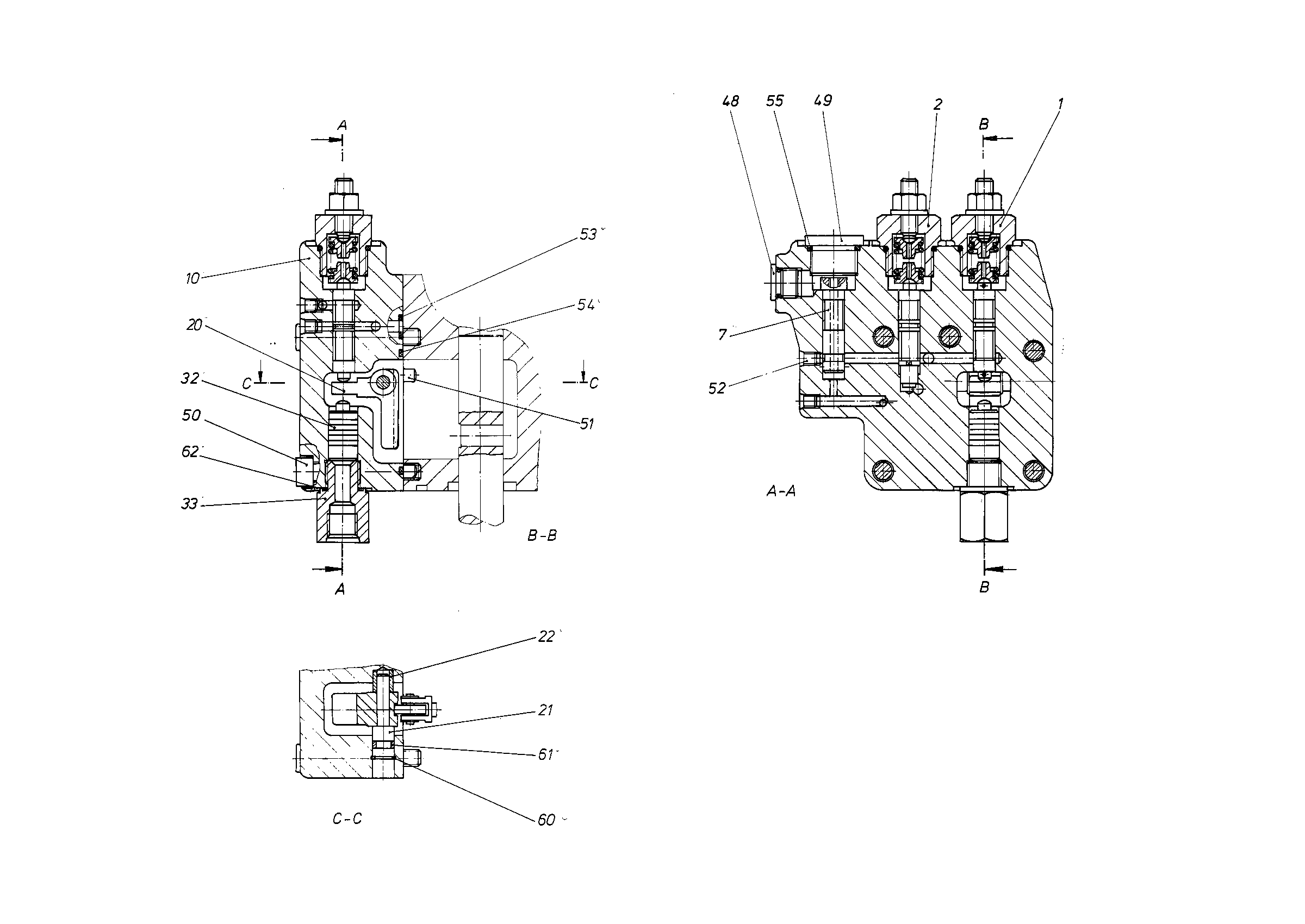

REGULATORR909441726
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909442320 | CONTROL ELEMENT Assembly parts list →L | 1 | ||
| R909447278 | CONTROL ELEMENT Assembly parts list →L | 1 | ||
| R909431326 | LOCKING BOLT | 1 | ||
| R909443467 | CONTROL HOUSING | 1 | ||
| R909445893 | ANGLE LEVER | 1 | ||
| R909431281 | BEARING BOLT | 1 | ||
| R909431286 | BUSHING | 1 | ||
| R909444090 | PISTON | 1 | ||
| R909443468 | THREADED REDUCING STUD | 1 | ||
| R909153371 | SCREW PLUGD | 1 | ||
| R909083225 | SCREW PLUG | 1 | ||
| R909083044 | SOCKET HEAD CAP SCREW | 5 | ||
| R913009676 | STRAIGHT PIN | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 6 | ||
| R909157512 | O-RINGD | 3 | ||
| R902600656 | O-RINGD | 1 | ||
| R909083758 | O-RINGD | 1 | ||
| R909087248 | RETAINING RING | 1 | ||
| R909086380 | O-RINGD | 1 | ||
| R900012468 | SEAL RINGD | 1 | ||
| 98 | R902002479 | SEAL KIT | 1 |
