Assembly

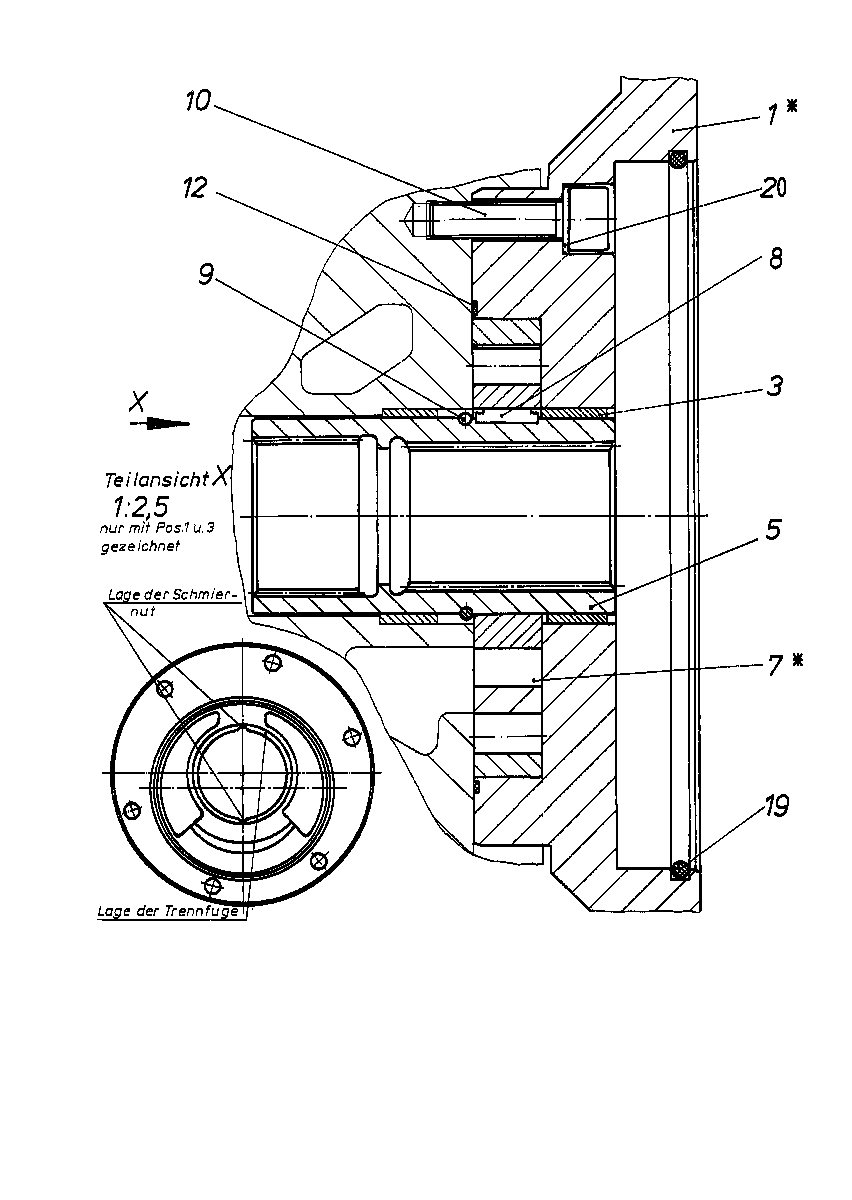

INTERNAL GEAR PUMPR909441771
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909443504 | INTERMEDIATE FLANGE | 1 | |
| 3 | R902260553 | BUSHING | 1 | |
| 5 | R909921621 | THROUGH DRIVE SHAFT | 1 | |
| 7 | R902006264 | WHEEL SET | 1 | |
| 8 | R902025642 | PARALLEL KEY | 1 | |
| 9 | R909154019 | SNAP RING | 1 | |
| R909083063 | SOCKET HEAD CAP SCREW | 6 | ||
| R909157881 | O-RINGD | 1 | ||
| R909157233 | O-RINGD | 1 | ||
| 20 | R909084305 | SEAL RINGD | 6 |
