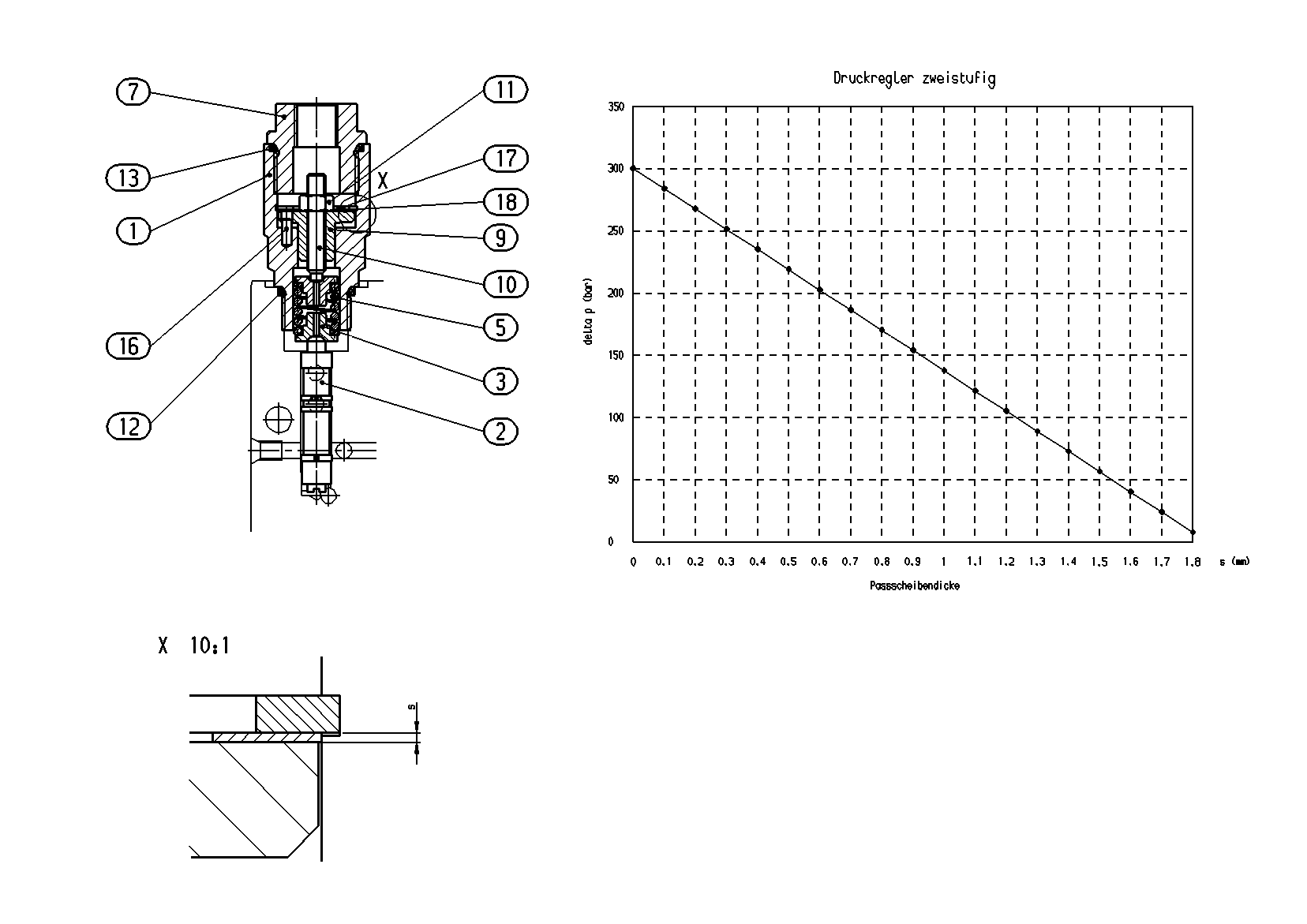

Assembly
CONTROL ELEMENTR909441774
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902012888 | THREADED FASTENER | 1 | ||
| R902037241 | CONTROL PISTON | 1 | ||
| R909436991 | SPRING BOLT | 2 | ||
| R909445707 | COMPRESSION SPRING | 1 | ||
| R909443506 | CONNECTING PIECE | 1 | ||
| 8 | R909435641 | SPACER BUSHING | 1 | |
| R909435642 | POSITIONING PISTON | 1 | ||
| R909443525 | SETSCREW | 1 | ||
| R909083611 | HEXAGON NUT | 1 | ||
| R909083758 | O-RINGD | 1 | ||
| R909083761 | O-RINGD | 1 | ||
| R909085625 | HALF LENGTH TPR GRVD DOWEL PIN | 1 | ||
| R909083387 | RETAINING RING | 1 | ||
| R909154323 | SHIM RING | 1 | ||
| R909156050 | SHIM RING | 1 |
