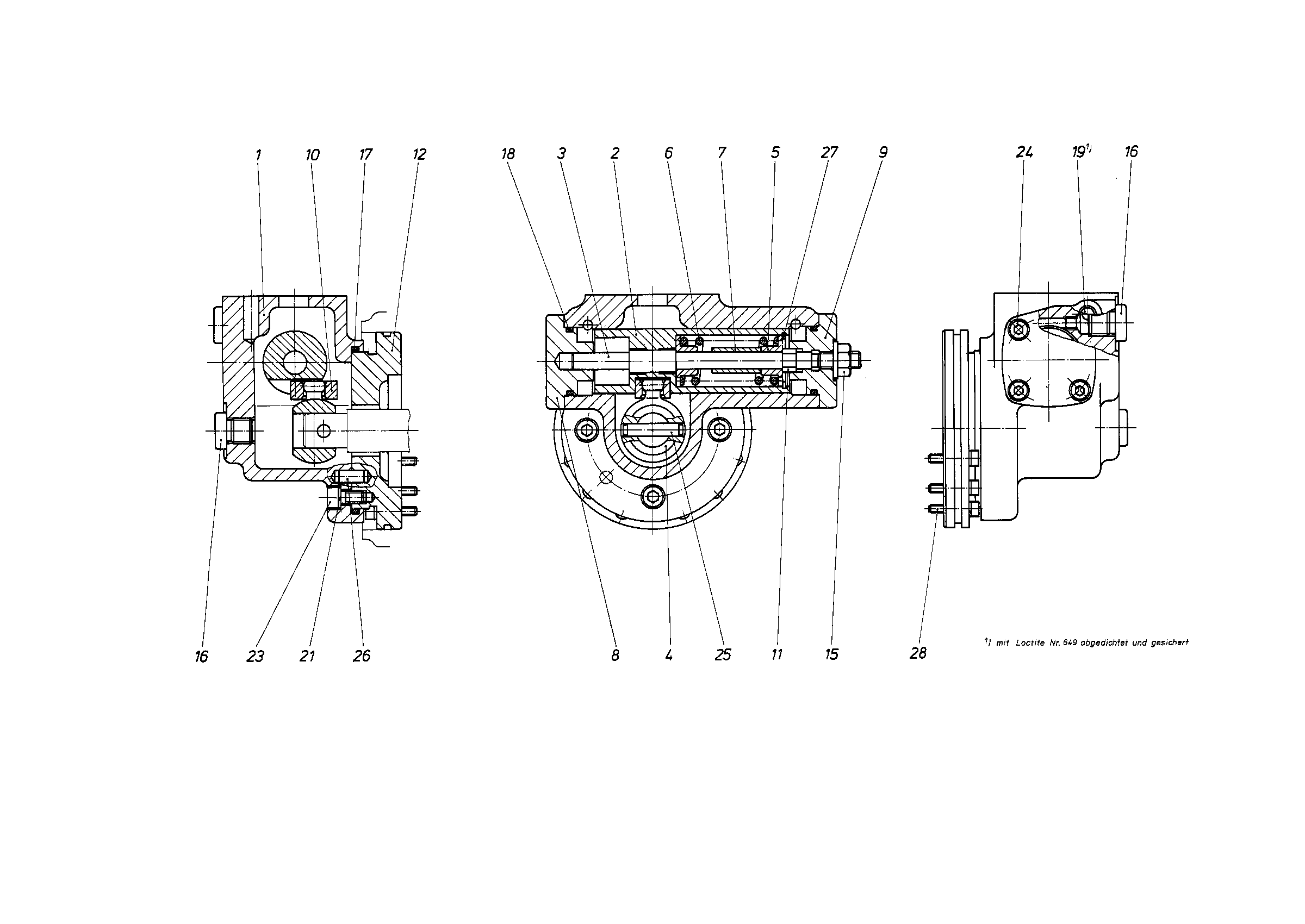

Assembly
CONTROLR909441787
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909444452 | HOUSING | 1 | ||
| R909439718 | POSITIONING PISTON | 1 | ||
| R909435855 | ROD | 1 | ||
| R909445392 | POSITIONING STUD | 1 | ||
| R909436079 | SPRING DISK | 2 | ||
| R909439066 | COMPRESSION SPRING | 1 | ||
| R909432628 | SPACER BUSHING | 1 | ||
| R909435683 | COVER | 1 | ||
| R909435684 | COVER | 1 | ||
| R909430936 | SLIDER | 1 | ||
| 11 | R909430937 | RING | 1 | |
| 11 | R909430938 | RING | 1 | |
| 11 | R909430939 | RING | 1 | |
| 11 | R909430940 | RING | 1 | |
| 11 | R909430941 | RING | 1 | |
| 11 | R909430942 | RING | 1 | |
| R909440021 | HOUSING COVER | 1 | ||
| R909152707 | SEALING NUTD | 1 | ||
| R909151692 | SCREW PLUGD | 3 | ||
| 17 | R909084461 | O-RINGD | 1 | |
| R909083763 | O-RINGD | 2 | ||
| 19 | R909415314 | DOUBLE BREAK-OFF PLUG | 1 | |
| R909084302 | SEAL RINGD | 3 | ||
| R909083018 | SOCKET HEAD CAP SCREW | 3 | ||
| 24 | R909083008 | SOCKET HEAD CAP SCREW | 8 | |
| 25 | R913017232 | SLOTTED SPRING PIN | 1 | |
| R913009665 | STRAIGHT PIN | 1 | ||
| R909154970 | V-RING | 1 | ||
| R909083005 | SOCKET HEAD CAP SCREW | 6 |
