Assembly

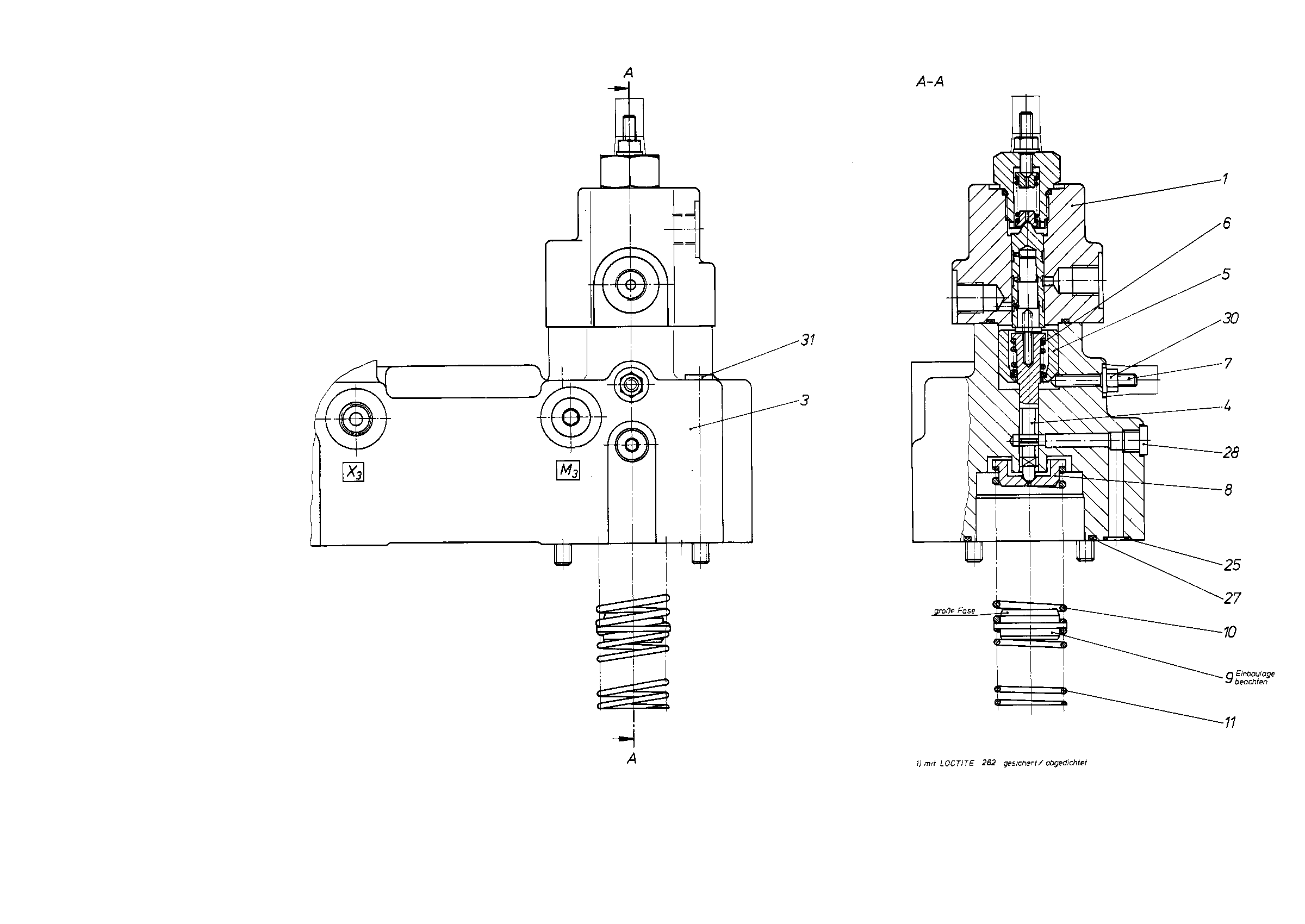

CONTROL UNITR909441798
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909446220 | CONTROL UNIT Assembly parts list →L | 2 | ||
| R909449881 | CONTROL HOUSING | 1 | ||
| 4 | R909436035 | CONTROL PISTON | 2 | |
| 5 | R909426486 | SPRING BUSH | 2 | |
| 6 | R909432566 | COMPRESSION SPRING | 2 | |
| 7 | R909420992 | SETSCREW | 2 | |
| 8 | R909425804 | SPRING DISK | 2 | |
| R909436043 | SPRING DISK | 2 | ||
| R909436659 | COMPRESSION SPRING | 2 | ||
| 11 | R909436660 | COMPRESSION SPRING | 2 | |
| 24 | R909086498 | O-RINGD | 2 | |
| R909085709 | O-RINGD | 4 | ||
| R902600656 | O-RINGD | 2 | ||
| R909153364 | SCREW PLUGD | 2 | ||
| 29 | R909151979 | SCREW PLUGD | 1 | |
| 30 | R909152425 | SEALING NUTD | 2 | |
| 31 | R909083051 | SOCKET HEAD CAP SCREW | 6 | |
| 32 | R909831319 | DOUBLE BREAK-OFF PLUG | 7 |
