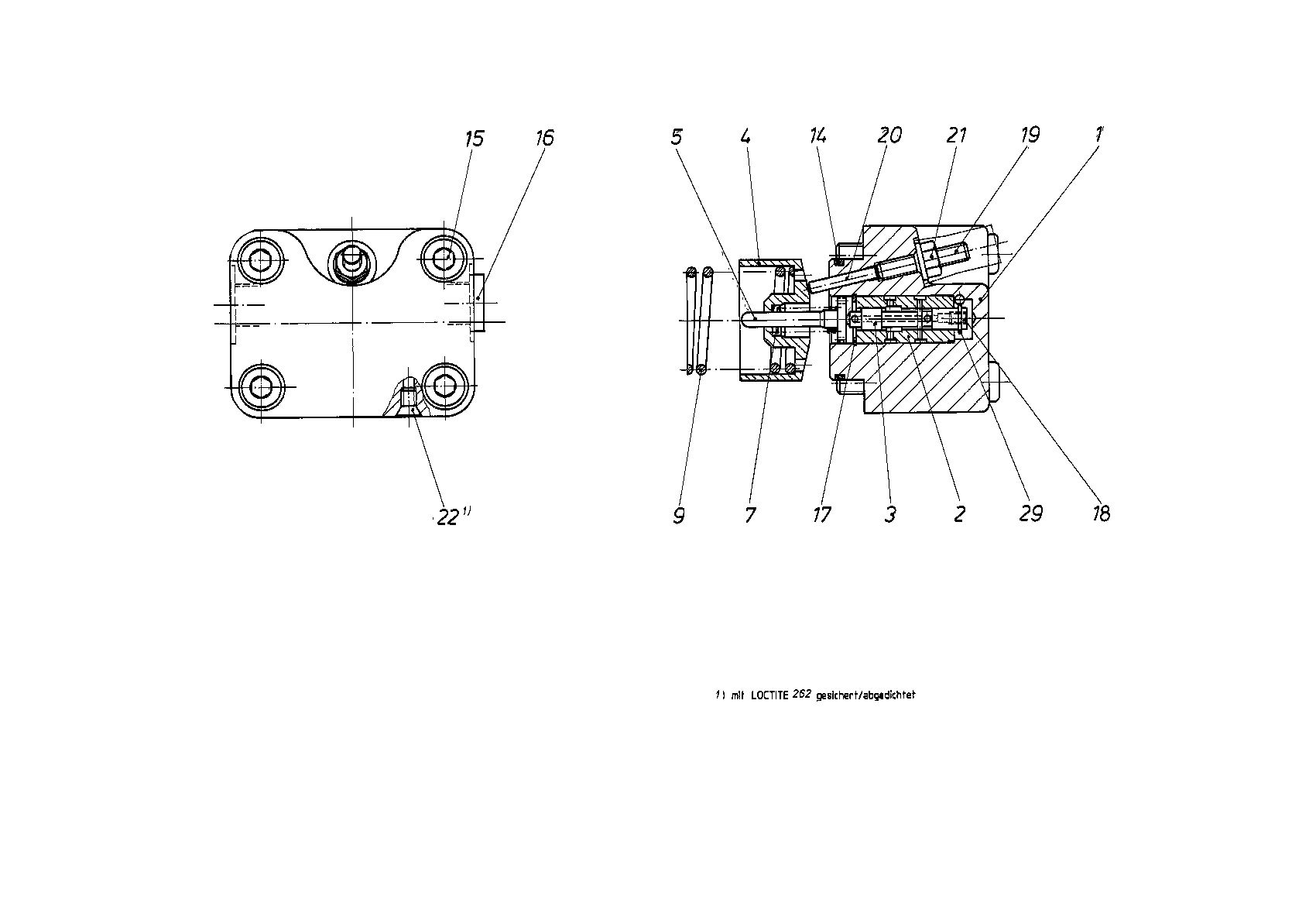

Assembly
CONTROL PARTR909441814
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909443542 | CONTROL HOUSING | 1 | |
| R909443543 | CONTROL SLEEVE | 1 | ||
| 3 | R909443544 | CONTROL PISTON | 1 | |
| R909420171 | ADJUSTING BUSHING | 1 | ||
| R909921339 | SPRING DISK | 1 | ||
| R909430757 | COMPRESSION SPRING | 1 | ||
| 9 | R909445262 | COMPRESSION SPRING | 1 | |
| 14 | R909083769 | O-RINGD | 1 | |
| R909083043 | SOCKET HEAD CAP SCREW | 4 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| 17 | R909083381 | RETAINING RING | 1 | |
| R909083488 | SETSCREW | 1 | ||
| R909152427 | SETSCREW | 1 | ||
| R909087756 | STRAIGHT PIN | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909085812 | LOCKING WASHER | 1 |
